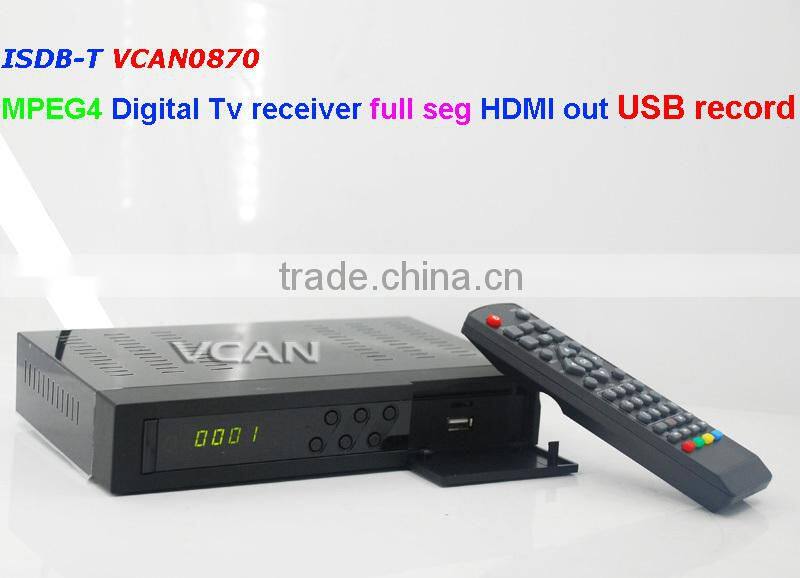

HD VCAN0870 HOME Digital tv Receiver ISDB-T Full Segment MPEG4 USB Recorder Philippines

US$ 15.5 - 15.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

VCAN0870

Vcan Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number VCAN0870

Product Description

HD VCAN0870 HOME digital tv receiver ISDB-T full segment MPEG4 USB recorder Philippines

Selling Points:

Digital ISDB-T HD/MPEG-4

H.264 TV Set top box receiver

1080i HD output

Philippines ISDB-T

Specifications:

RF Input/Demodulation
Connector Type	F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH
Input Frequency	(UHF)470-866MHz,(VHF)170-230MHz
Bandwidth	6,7,8MHz
Signal Input level	-80dBm - -20dBm
Input Impedance	75Ohm
ANT Power	5V(On/Off),Imax=100mA
Demodulation Scheme	QPSK,16-QAM,64-QAM
Demodulation Type	OFDM, fully compliant with ISDB-T Standard
Media Features
Picture	JPEG,BMP,PNG
Power Supply
Adapter
AC Input	100-240VAC@50/60Hz±5%
Power Consumption	Max10W
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	170mm * 96mm * 40mm
Front Panel
Key	POWER, CH+,CH-
Indicator	LED Indicator for Power On/Off
Remote Control Input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Connector	1xUSB2.0 interface

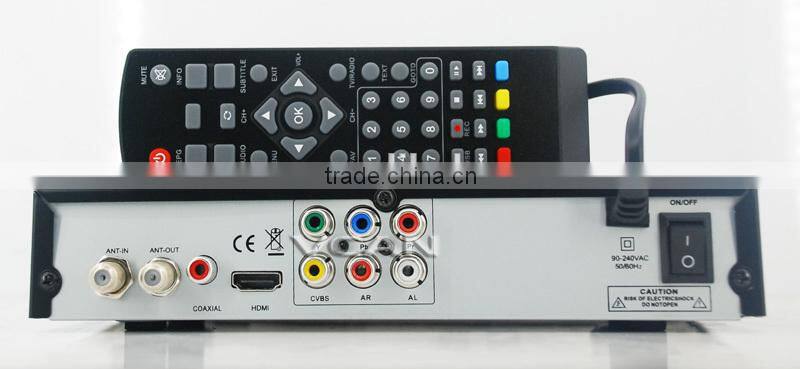

Rear Panel
Connector	2 x F-Female connector for ANT.IN and Loop THROUGH
	HDMI 1.3 interface, up to 1080p
	1xAV RCA( CVBS, L/R)
	1xCOAXIAL
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.(front distance from receiver)
Operation Angle Range	±45°(horizontal),±20°(vertical)
