Features:
1. Now Support DVB-T / DVB-T2 + High Speed.
(Now DVB-T, future updated DVB-T2, once buy, save money.)
2. Support Multi PLP, say goodbye to missing channel
3. Support H.264/AVC, MPEG2~MPEG4 HD Video Decode;
4. Available to upgrade the firmware via USB slot;
5. USB Recorder, PVR, multimedia play, support HDD;
6. Auto searching and updating bit rate information;
7. Storage for 2000pcs channels;
8. Memory function after power off;
9. Support OSD TELETEXT;

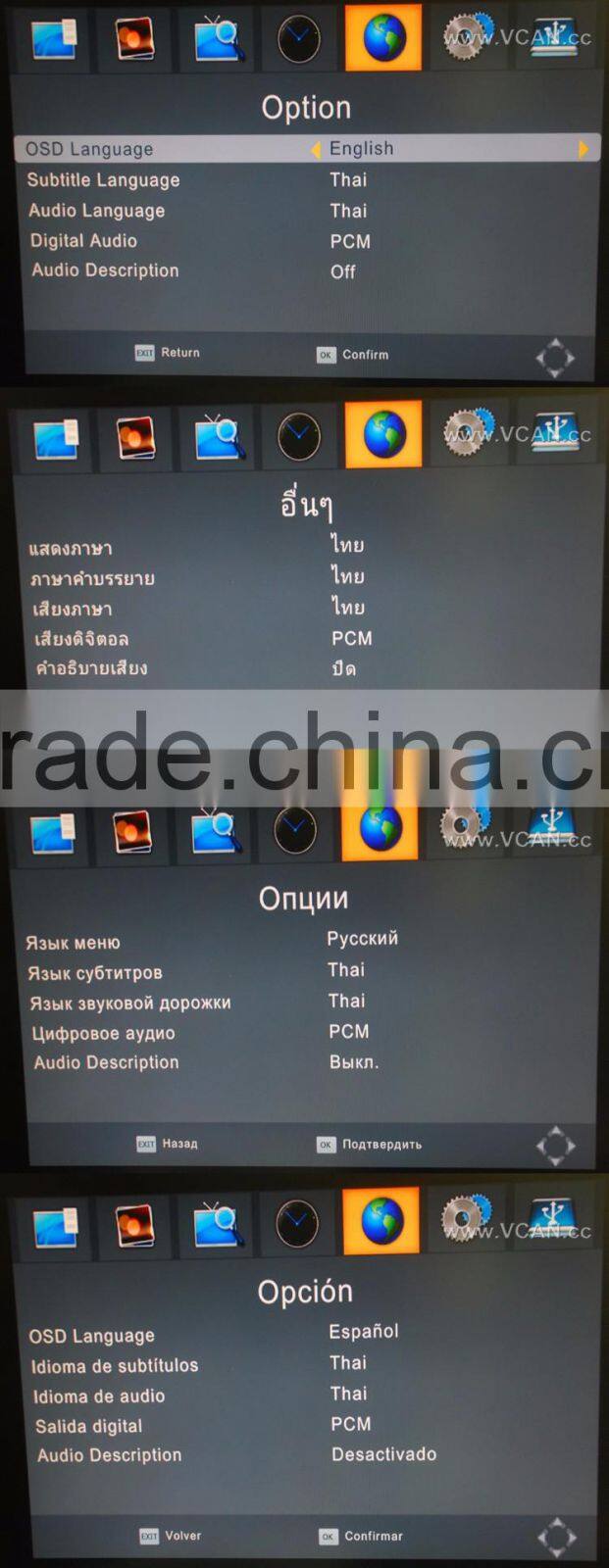

10. Multi Language Support: English, Russian,Thai, Spanish etc.
11. EPG program guide and PIG(Picture in Graphics )Function;
12. 6MHz, 7MHz, 8MHz Band-wide;
13. HD output (One route);
14. 2x Video output, Stereo Audio-R, Audio-L output;
15. Support IR output and extended remote sensor receiver;
16. Google DVB-T221 to get perfect technology support and update software.
17. Support AUX AV input.
18. Tuner support power for active amplified antenna;
19. 10~32V widely power supply, special designed for car or bus.
20. Smart module design, even built-in your dvd / gps play.
21. Touch screen operation is optional. (Need debug and ODM)
22. Power DC jack, one cigarette lighter to connect easily;
Specification:
1. Input frequency: VHF 177.5MHz - 226.5MHz UHF 474MHz - 858MHz
2. Modulate: QPSK/16 - QAM/256-QAM
3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC

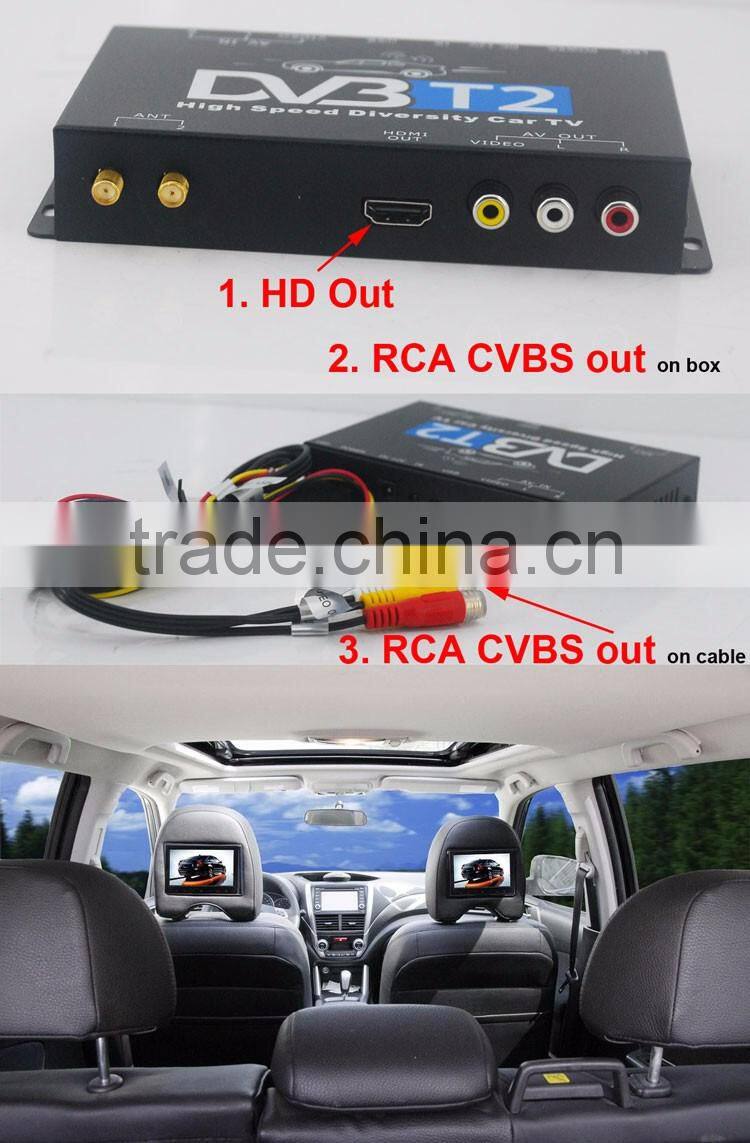

5. Two ways CVBS RCA + One HD output:
6. Power Supply: DC 12V~26V 5W
7. Connecting Terminal:
Active amplifier antenna input jack (3.3V supply), Car power input jack , R/L Audio CVBS Video output jack,
External remote control IR cord, USB upgrade socket, HD High-definition output jack.
8. Applicable Power Supply: Car storage battery (12V~ 24V)
9. Outer dimension: 125mm x 85mm x 26mm
10. Application Temperature: -5 ~40 degree
11. Storage Temperature: -20~60 degree
Technology Data:
| TV Standard | Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
| Video Resolution | Full HD tuner DVB-T2,support up to 1080P |
| Video System | Automatic PAL/NTSC conversion |
| Video Ratio | Aspect ratio 16:9 and 4:3 |
| Channels Number | 1000 channels memory |
| OSD Language | OSD language: English, Thailand, Russia, Spainish more please visit |
| EPG | Small windows screen picture with EPG graphic menu,7-Day EPG function |
| Channel Search | Auto search & Manual search function |
| Software upgrade | Software upgrade via USB |
| Teletext | Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle |
| Save Channel | Automatic save for last channel |
| LCN | Support Logic Channel Number(LCN) |
| 1.Main Chip Sets | |
| Flash Memory | 32MB Serial Flash |
| DDR2 Memory | 512MB |
| 2.Tuner | |
| Input Frequency | VHF: 174~230MHz,UHF: 470~862MHz |
| RF input Level | -20~-83dBm |
| RF Bandwidth | 6MHz-7MHZ and 8MHZ |
| Modulation | QPSK,16QAM,64QAM,256QAM |
| 3.USB Decode | |
| DVR supporting | Stereo/MONO/Left/Right |
| Media Supporting | USB2.0 Port, playback the media in USB flash disk or USB HDD |
| USB2.0 HOST | DVR with USB HDD, Time shifting with USB HDD |
| 4.Multimedia | |
| music | MP3,WMA |
| photo | JPEG,BMP,PNG |
| Video | |
| 5.Video Decode | |
| Decode Format |
MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format,
|
| H.264MP@HL, VC-1,RM&RMVB(Optional) | |
| Output Format | 1080p,1080i,720p,576p,576i,480p,480i |
| Aspect Ratio | 4:3/16:9/Letterbox/ selectable |
| Output Port | CVBS and HD Out |
| 6.Audio Decode | |
| Decode Format | MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1 |
| Audio output | RCAX2(L/R) + HD Out (Audio) |
| 7.AV Output | |
| Video Bandwidth | 5.5MHz(-3dB) |
| Video Impedance | 75Ω |
| Video Voltage Level | 1.0 Vp-p |
| Audio Freq. Range | 20~20KHz |
| Guard internal | 1/4,19/128,1/8,19/256,1/16,1/32,1/128 |
| Pilot pattern | PP1-PP7 |
| Power Supply | DC(10V-26V) |
| Hardware interface | DC input 12V, 2 Antenna input, USB, HD out, AUX AV in, CVBS AV out, IR sensor, Power Indicator |
| Audio format | ISO/IEC14496-30,AAC,AAC+ |
| FFT | 1K,2K,4K,8K,16K,32K |
| Power | 2 W |
| Video resolution | 576i,576p,720p,1080i and 1080p |
| Audio Impedance | 600Ω |
| Audio Voltage Level | 2V rms(5.6Vp-p) |
Accessory:
1 X Car DVB-T2 receiver
2 X 25DB car amplifier digital DVB-T2 Antenna
1 X power / ir / av cable
1 X Remote Control Unit
1 X Extended IR Cable
1 X Audio Video output cable
1 X Users' manual
