COFDM HD Wireless Video Transmitter 1080P CVBS SD 720P

Name: COFDM HD Wireless Video Transmitter 1080P CVBS SD 720P
Brand: VCAN
SKU: 132869579
Availability: InStock

Vcan Technology Co., Ltd.

US$ 700 - 700 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VCAN

Model Number:

COFDM-902T

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VCAN

Model Number COFDM-902T

Product Description

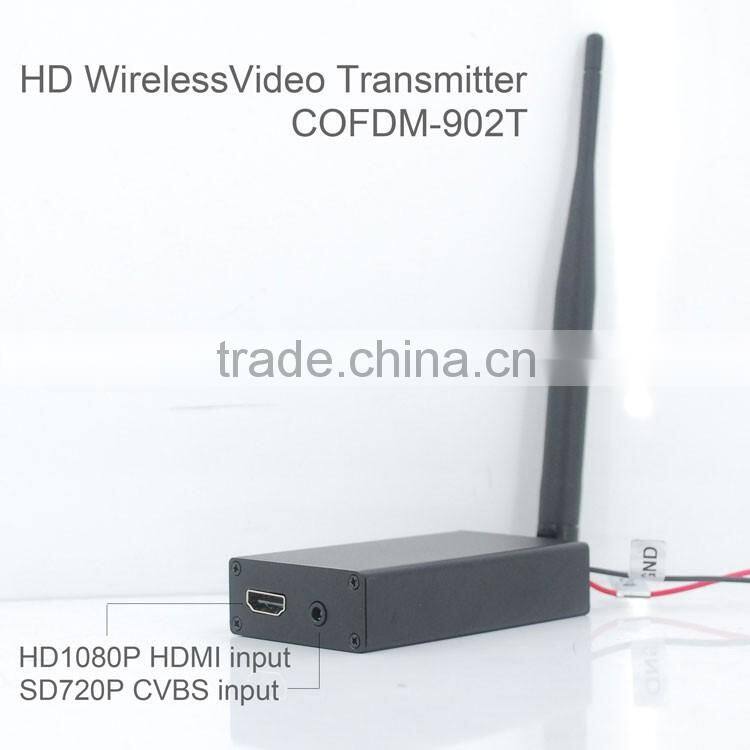

COFDM HD Wireless Video Transmitter 1080P CVBS SD 720P

Selling Points:

1~5W RF output;

HD 1080P, SD720P CVBS in

H.264/MPEG-2;

Delay <500ms;

100mm×43mm×10mm, 0.2kg

COFDM HD Wireless Video Transmitter HDMI 1080P CVBS SD 720P

Product Features

1. Working frequency can be adjusted from 170MHz ~ 930MHz

2. Video Audio interface: HDMI digital interface and analog CVBS composite inputs (_SDI input is coming soon)

3. High quality digital video processing and H.264 / MPEG-2 video codec, HD quality

4. Very short coding delay of 500 milliseconds

5. High-speed mobile and multi-path interference stable transmission of images, video

6. Powerful NLOS capability

7. Having space diversity reception

8. With encryption

9. Default 1W transmit RF power, Develop different 1~5W

10. According to customer requirements, OEM or ODM is customized

Working frequency	170MHz ~ 900MHz, be customized
Modulation method	COFDM
RF Output power	1~5W, can develop more power
Bandwidth	6/7/8MHz
Encryption	AES / AES2 / DES / DES2
guard interval	1 / 32,1 / 16,1 / 8,1 / 4
Technical standards	H.264 / MPEG-2
Video stream	2Mbps ~ 25Mbps
System delays	<500ms
BER	≤10-6
Transmission distance	1 ~ 10km
Compression format	H.264 / MPEG-2
Video input	HDMI, Analog CVBS video and audio
Audio input	Stereo, Right + Left
Image definition	1080P/I (1920x1080) is compatible with 720P, 480P and SD @ frame rate of 25 frames / sec.
Video input interface	3.5 mm headphone jack, HDMI
Audio input interface	3.5 mm headphone jack, HDMI
Power supply	VCC6V ~ 40V
Dimensions	100mm × 43mm × 10mm (L × W × H)
Weight	0.2kg
