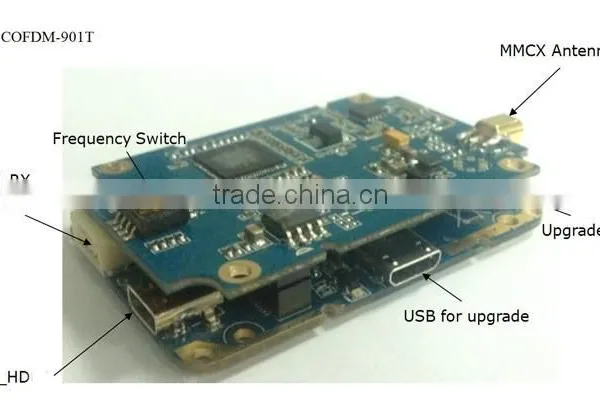

Cofdm Micro Uav Micro hd Nols Module Cofdm Modulater HD-sdi Receiver
US$ 590 - 590
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
VCAN
Model Number:
COFDM-901T
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cofdm Transmitter Modulator Cofdm Sdi Uav Micro hd Nols Module HD-sdi ReceiverUS$ 590 - 590MOQ: 1 Piece -
Cofdm Transmitter and Receiver Uav Micro hd Nols Module HD-sdi ReceiverUS$ 590 - 590MOQ: 1 Piece
-
Cofdm Wireless Video Transmitter Uav Micro hd Nols Module HD-sdi ReceiverUS$ 590 - 590MOQ: 1 Piece
-
Cofdm Transmitter Video Modulator Uav Micro hd Nols Module HD-sdi ReceiverUS$ 590 - 590MOQ: 1 Piece
-
Cofdm Transmitter Wireless Video Modulator Uav Micro hd Nols Module HD-sdi ReceiverUS$ 590 - 590MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
VCAN
Model Number
COFDM-901T
cofdm transmitter wireless video modulator uav micro hd nols module HD-sdi receiver
Selling Points:
cofdm transmitter
cofdm wireless video transmitter
cofdm modulator
cofdm transmitter and receiver
cofdm sdi
cofdm wireless video transmitter
cofdm uav
cofdm micro
cofdm nlos wireless video transmitter
cofdm module
cofdm 5.8ghz hd-sdi hd transmitter
cofdm transmitter wireless video modulator uav micro hd nols module
cofdm wireless video transmitter modulater sdi uav micro nlos video module hd-sdi
More CODFDM transmitter products, please visit
COFDM wireless video audio transmission system advantages:
1.Long range transmission distance
2.Real-time transmission systems
3.Delay time very short less than 500ms
4.Perfect image quality, brighter colors and image smoothness. (we will support video to demonstration it if you sent inquiry)
Product Features:
1. Transmission power 1W
2.Extreme lightweight and rugged housing
3.Vibration and shock resistant
4.Applied COFDM modulation, MPEG-2 / H.264 compression
5.Small dimensions
6.Perfect for mobile applications
7.High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
8.Support NLOS transmission, strong diffraction capability
| Key Items | |||
| Key Items | TX | RX | |
| Case1 | Case2 | ||
| Video interface | HD input | USB output HD put | Wifi |
| PCB size | 50*40*14mm | 105*80*11mm | 50mm*35mm*11mm |
| Weight | <20g | <10g <25g | <13g |
| video format | 720p@30fps 1080p@30fps |
720p@30fps
1080p@30fps |
720p@30fps |
| ANT interface | flexible | ||
| RF Frequency | ISM900MHz band (902MHZ~928MHz) | ||
| RF power | 23dbm(adjustable) |
min.input:-93dbm
max.input:<-5dbm |
|
| Bandwidth | 6mhz | ||
| channel amount | 4channels | ||
| Amount of users allowed | / | No Limitation | |
| Transmitted Distance | >2km | ||
| Time Delay | ~30ms | ||
| OS | / | Android only | Android IOS |
| supply | 5V@<1.5A |
5V@<150mA
5V~36V@<5W |
5V@<600m |
| Working Temp | -10℃~+50℃ | -10℃~+50℃ | |
