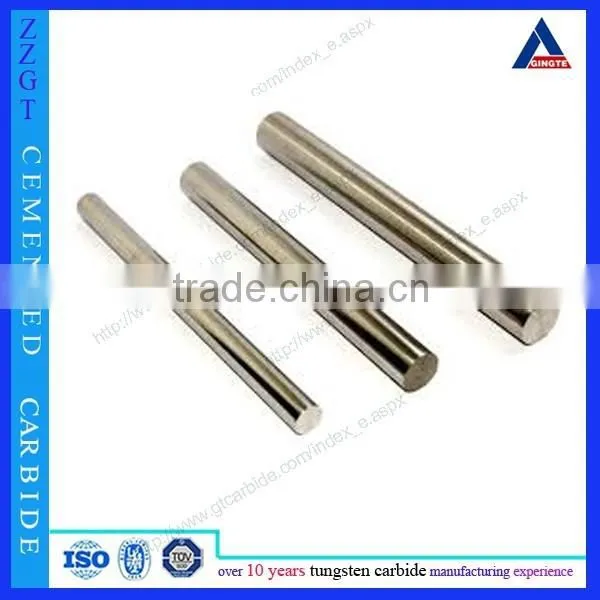

A. zhuzhou gingte CIP sintered carbide rods for cutting blade
a. Our advantages:
Advanced extrusion and mold pressing technology, innovative products, and grade development,
along with the high level of training of our employees and extensive automation enable us to offer
you substantial price-performance advantages for high performance carbides. While focusing on
solid rods and with hole rods for the cutting tool industry, our service and expertise go beyond just
offering carbide!
b. Specifications:
1.CIP pressed,extruded ,HIP sintered
2. tungsten solid carbide rods and with straight hole(single and two holes)
3.fast delivery (7 workdays in production)
4.100% quality guarantee
c.Fields of carbide rods business:
- Cutting Tool Industry
- PCB Tools
- Dies / Punches
- Blades
- Paper Industry
- Polymer Extrusion
- Gear Cutting
- Other Wear Parts
d.Carbide rods Grades:
| Gingte Tungsten Carbide Solid Rods | ||||||
| Grade of Tungsten Carbide Rod: | ||||||
| Grade | ISO CODE | Density g/cm3 |
T.R.S N/mm2(MPα) |
Hardness (HRA) |
Co% | Coercivity |
| YG6 | K20 | 14.88 | 2150 | 90.5 | 5.4 | 13.5 |
| YG6X | K10 | 14.5~14.95 | 2000 | 91.5 | 5.3~5.6 | 16~20 |
| YG8 | K30 | 14.75 | 2320 | 89.5 | 6.7 | 13.8 |
| YG10 | / | 14.5~14.95 | 2200 | 88 | 8.0~10.0 | 8.0~12.0 |
| YG10X | K10-K20 | 14.5 | 2500 | 91.5 | 10 | 19.8 |
| YL10.2 | K20-K30 | 14.3 | 3500 | 92.1 | 10 | 22.15 |
| YG20 | / | 13.48~13.62 | 2800 | 84 | 16.0~20.0 | 6.0~9.5 |
| …… | …… | |||||
| Cemented carbide rods for PCB micro drill,drill bits,end mill,reamer etc.... | ||||||
e.Carbide rods size:
A1.Solid Rod, unground, without coolant hole
| Size Options: | ||||||
| D Unground (mm) |
Tolerance (mm) |
D Ground (mm) |
L (mm) |
|||
| φ2.2 | +0~+0.35 | φ2 | 330 | |||
| φ3.3 | +0~+0.35 | φ3 | 330 | |||
| φ4.2 | +0~+0.35 | φ4 | 300 | |||
| φ5.4 | +0~+0.35 | φ5 | 330 | |||
| φ6.4 | +0~+0.35 | φ6 | 310 | |||
| φ6.4 | +0~+0.35 | φ6 | 330 | |||
| φ7.3 | +0~+0.35 | φ7 | 330 | |||
| φ8.4 | +0~+0.35 | φ8 | 330 | |||
| φ9.4 | +0~+0.35 | φ9 | 330 | |||
| φ10.4 | +0~+0.35 | φ10 | 330 | |||
| φ11.4 | +0~+0.35 | φ11 | 330 | |||
| φ12.4 | +0~+0.35 | φ12 | 330 | |||
| φ13.2 | +0~+0.35 | φ13 | 330 | |||
| φ14.4 | +0~+0.35 | φ14 | 330 | |||
| φ15.4 | +0~+0.6 | φ15 | 100 | |||
| φ15.4 | +0~+0.6 | φ15 | 110 | |||
| φ15.4 | +0~+0.6 | φ15 | 115 | |||
| φ15.4 | +0~+0.6 | φ15 | 330 | |||
| φ16.5 | +0~+0.6 | φ16 | 320 | |||
| φ16.5 | +0~+0.6 | φ16 | 330 | |||
| φ17.5 | +0~+0.6 | φ17 | 330 | |||
| φ18.5 | +0~+0.6 | φ18 | 330 | |||
| φ19.2 | +0~+0.6 | φ19 | 330 | |||
| φ19.5 | +0~+0.6 | φ19 | 100 | |||
| φ19.5 | +0~+0.6 | φ19 | 115 | |||
| φ20.6 | +0~+0.6 | φ20 | 320 | |||
| φ20.6 | +0~+0.6 | φ20 | 330 | |||
| φ21.2 | +0~+0.6 | φ21 | 330 | |||
| φ22.5 | +0~+0.6 | φ22 | 330 | |||
| φ23.2 | +0~+0.6 | φ23 | 330 | |||
| φ24.2 | +0~+0.6 | φ24 | 330 | |||
| φ25.6 | +0~+0.6 | φ25 | 330 | |||
| φ26.5 | +0~+0.6 | φ26 | 330 | |||
| φ27.2 | +0~+0.6 | φ27 | 330 | |||
| φ28.6 | +0~+0.6 | φ28 | 330 | |||
| φ29.2 | +0~+0.6 | φ29 | 330 | |||
| φ30.7 | +0~+0.7 | φ30 | 330 | |||
| φ31.2 | +0~+0.6 | φ31 | 330 | |||
| φ32.7 | +0~+0.7 | φ32 | 330 | |||
| φ33.2 | +0~+0.8 | φ33 | 330 | |||
| φ34.2 | +0~+0.8 | φ34 | 330 | |||
| φ35.2 | +0~+0.8 | φ35 | 330 | |||
| φ36.2 | +0~+0.8 | φ36 | 330 | |||
| φ37.2 | +0~+0.8 | φ37 | 330 | |||
| φ38.2 | +0~+0.8 | φ38 | 330 | |||
| φ40.2 | +0~+0.8 | φ40 | 330 | |||
Un-ground tolerance:diameter φ2- φ 12(+0~+0.35), φ 14-40 φ (+0- φ~+0.6); Length L(+0~+L*1%)
Finish ground tolerance:H6,h6,H8
A2.One central coolant hole Rods:
Rods, unground, with one central coolant hole
A3.Two straight coolant holes Rods:
Rods, unground, with 2 straight coolant holes
-Notes:
1) Above are our standard sizes of carbide rods, but we are capable of satisfying all of your
special carbide needs.
2) If you can not find carbide rods you requested from above list, please provide your
specification of carbide rods, we will make them upon it.
f. Packing:
g.Delivery:
1.Why Choose us ?
a.Specialized in tungsten carbide business over 10 years,professional manufacturer located in Zhuzhou,China.
b.The products are popular in the market because of their good quality, moderate price and fast delivery.
c.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc..
d.We own up-to-date production line, advanced equipment, lots of technicians.
e.We have been always trying our best to provide our customers with high quality products , best price and satisfactory services.
f. We have passed ISO 9001:2008 quality management system certification
2.Main Products:
1).carbide cold heading dies
2).carbide plates
3).carbide rods
4). carbide mining and drilling tool parts
5). carbide disc cutters
6). carbide rings and rollers
7). carbide wear resistant parts
3.Gingte Plant:
4.Processing Chart:
5.OEM Service:
We will exert our best efforts to repay your appreciation for our products!
Please feel free to contact us as your convenient :)
Yeva.Yang (Sales Dept.)
