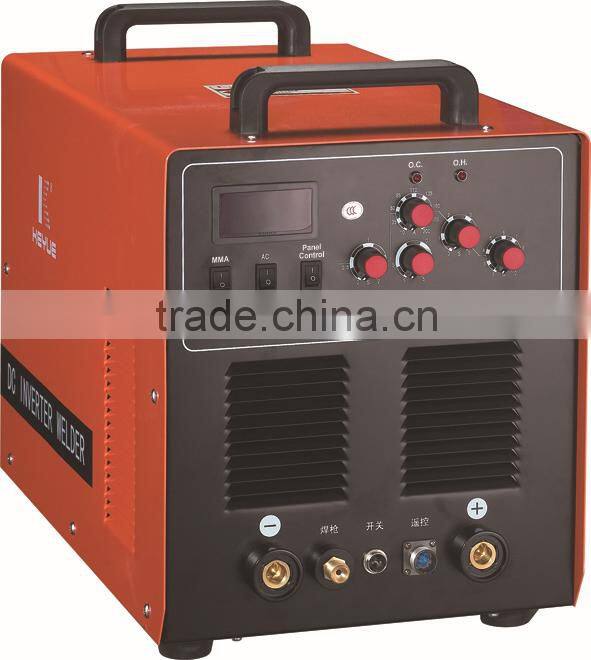

Facotry Price 230Volt TIG-200P AC/DC Welding Machie for Professianl Aluminum welding job
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Application:
1. MOSFET inverter circuit,high frequency arc starting
2. AC square wave is specially suitable for welding aluminum and aluminum alloy products
3. DC function for welding stainless steel,alloy steel,carbon steel,copper and other non-ferrous metal
4. Small splashing, great penetration,easy and simple to operate and aesthetc appearance of weld seam
5. Foot pedal is optional
Specification:
| Inverter TIG-AC/DC Square Wave Welding Machine | |||
| Model | TIG-200AC/DC | TIG-250AC/DC | TIG-315AC/DC |
| Type | MOSFET | ||
| Rated input voltage (V) | single phase 220V±15% | three phase 380V±15% | |
| Rated frequency (Hz) | 50/60 | ||
| Rated input current (A) | 24 | 9.6 | 11.4 |
| No-load voltage (V) | 56 | 45 | 45 |
| Output current (A) | 10-160 | 10-250 | 10-280 |
| Pre-flow time (s) | 0-2 | ||
| Gas delay time (s) | 2-10 | ||
| Duty ratio | 20%-80% | ||
| Decay time (s) | 0-5 | ||
| Duty cycle (%) | 60 | ||
| No-load loss (W) | 60 | ||
| Arc starting | high frequency arc starting | ||
| Efficiency (%) | 85 | ||
| Power factor | 0.93 | ||
| Insulation grade | F | ||
| Protection grade | IP21 | ||
| Net weight (KG) | 23.4 | 31.2 | 31.2 |
| Dimension of packing (mm) | 640×400×510 | 640×400×510 | 640×400×510 |
| including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set (air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315AC/DC) | |||
Our Competive:
Achievements:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
If you have any questions ,please contact with us...
