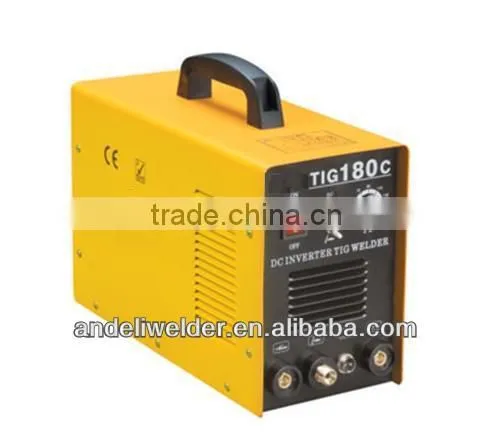

Popular stanley hand plastic tools welding machine
Features:
1,Advanced inverter technology,high frequency.Compact size and light weight ,easy to carry.
2,Stable and reliable welding current.
3,Low no-load loss,low power consumption.
4,Applicable for welding stainless steel and carbon steel
SUPPLY:
OEM sevice offered, Free spare parts, Technical help to exporters, Design Service Offered, Buyer Label Offered .
MAIN MARKET:
North America,South America,Europe,Africa,Middle East,Asia
ACCESSORIES:
With earth clamp,electrode holder,mask,brush.
CERTIFICATE:
CE,ROHS,GS,ISO9001,TUV
MMA welding refers to a welding method where a filler electrode in the electrode holder serves as the welding electrode. The arc burns between the electrode and the work piece.
| ITEM | TIG-160C | TIG-180C | TIG-200C |
| Power voltage(V) | 230 | 230 | 230 |
| Rated input capacity(KVA) | 3.2 | 3.9 | 4.5 |
| input voltage frequency(HZ) | 50/60 | 50/60 | 50/60 |
| No-load voltage(V) | 56 | 56 | 56 |
| Output current range(A) | 10-160 | 10-180 | 10-200 |
| Rated output voltage(V) | 16.4 | 17.2 | 18 |
| Duty cycle(%) | 60 | 60 | 60 |
| Efficiency(%) | 85 | 85 | 85 |
| Weight(KG) | 11 | 11 | 11 |
| Protection class | IP21S | IP21S | IP21S |
| Welding thinkness(mm) | 0.3-5 | 0.3-7 | 0.3-9 |
| Usable electrode(mm) | 1.6-4.0 | 1.6-4.0 | 1.6-4.0 |
| Insulation class | F | F | F |
| Measurement(MM) | 460x270x345 | 460x270x345 | 460x270x345 |
| Accessory | 1.5M earth clamp,2M MMA torch,4M TIG torch,brush and mask | ||
| Pkg | 1pcs | 1pcs | 1pcs |
| Packing | carton | carton | carton |
| Certificate | CE,RoHS | CE,RoHS | CE,RoHS |
TIG Welding Details:
In TIG welding (tungsten inert gas), the welding arc is formed between a non-consumable tungsten electrode and the base material. Argon, which is most commonly used as the shielding gas, is fed through the TIG torch to shield the electrode and molten weld pool. The current is either alternating or direct current, which can be pulsed as necessary.
DC TIG welding
The direct-current TIG welding process is suitable for welding unalloyed and low-alloy steels, stainless steels and titanium.
AC TIG welding
Alternating- current TIG, of AC TIG welding is particularly suitable for welding aluminium and aluminium alloys. The primary area of application for AC TIG welding is used with materials, but the process is also used frequently in repairing welding for thicker aluminium pieces.
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.
