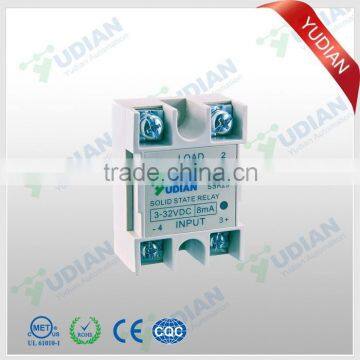

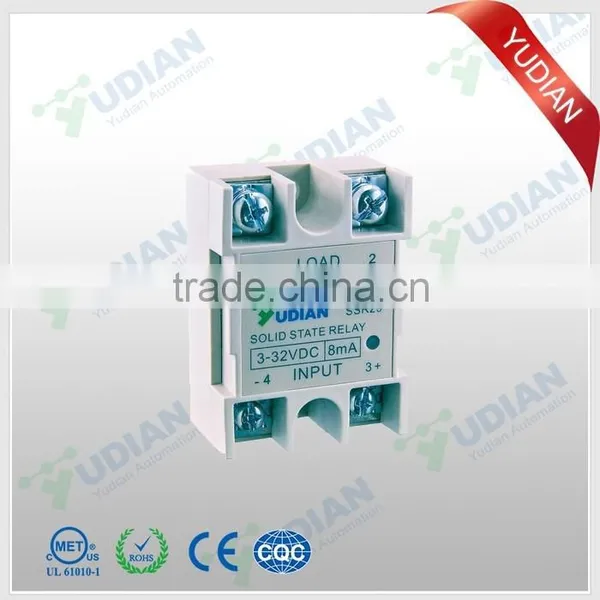

Solid state relay SSR20A25A40A

Name: Solid state relay SSR20A25A40A
Brand: YUDIAN
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 0 per Month
Port any port
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Fujian, China	Brand Name:	YUDIAN	Model Number:	SSR
Theory:	Solid State Relay	Usage:	Auto	Size:	Miniature

Product Description

AI SSR25 SSR40 SOLID STATE RELAY, RELAY, SINGLE PHASE, SSR.

1. Main Specifications

single three phase 40A SSR solid state relay
best quality, low price
CE CQC UL certificate

Widely used with AI temperature controller .single three phase 40A SSR solid state relay

Solid State Relay	SSR
Controlling Voltage:	3-32VDC
Controlling Current:	6-25mA
Make-on Voltage:	3VDC
Break-off Voltage:	1VDC
Reverse Voltage:	32VDC
Load Voltage:	40-440VAC 40-1200VAC
Load Current:	60, 80, 100, 120A
Instant Voltage:	38 900VAC, 120 1600VAC
Voltage Drop in ON:	< 1.6VAC
On-off Time:	≤10mS
Leakage Current in OFF:	≤10mA
Dielectric Strength:	≥2500VAC
Insulation Resistance:	500MΩ 500VDC
Ambient Temp:	-30~80 deg.
Dimensions:	57X43.5X29
Indicate Method:	LED
Mounting Type: Screw Fixing
Weight:	60A≤135g, 80A≤140g, 120A≤145g

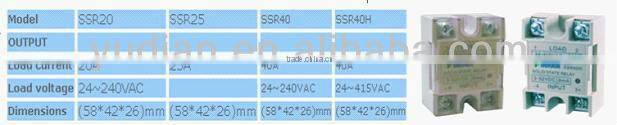

2. Order code instruction :

3. Why choose us ?

YUDIAN is of over 20 years experience of industrial process control field. CE, UL, ISO9001 qualified, prompt delivery delviery within 2 days. All kinds of payment terms acceptable. You will get instant 24 hours help after sale.

Leader depuis 1991, régulateur de température de conception et de fabrication, instrument de température, thermomètre, écran tactile sans papier enregistreur, accumulateur de flux.

führender Hersteller seit 1991, Konstruktion und Fertigung-Temperaturregler, Temperatur Instrument, Temperaturüberwachung, papierlose Recorder Touchscreen, Fluss Akku.

Fabricante líder desde 1991, controlador de temperatura de projeto e fabricação, instrumento de temperatura, monitor de temperatura, tela de toque do registrador sem papel, acumulador de fluxo.

Fabricante líder desde 1991, regulador de temperatura de diseño y fabricación, instrumento de temperatura, monitor de temperatura, pantalla táctil de registrador sin papel, acumulador de flujo.

You can always find same function controller as you want from us!

Welcome for any cooperation mode: End-user, Distributor !

Company Profile

Xiamen Yudian Automation Technology Co., Ltd.

Xiamen Yudian Automation Technology Co., Ltd(YUDIAN),has been devoted to the development and manufacture of industrial process automation controllers since 1991. Through several years of development, YUDIAN has become the number one Chinese intelligent instrument manufacturer, claiming the biggest domestic market share with the sales volume of over 400,000 instruments per year. Our instruments are applied to chemical, petroleum, metallurgy, pharmaceutical, food and beverage and academic industries. Our products are of high quality and competitive prices.

Yudian has constructed a 1000-Square-meter new type factory building in Xiamen Hi-Tech Industrial Development Zone. With multiple modern production and test equipment including fully automatic computer placement machines, lead-free dual crest welders, infrared reflowing welders, high-temperature and high-voltage aging rooms, electromagnetic compatibility testing equipment and humiture environment test laboratories, Yudian can manufacture automation products of the highest quality with the highest precision and reliability.
