Product Details
| Place of Origin: | Fujian, China | Brand Name: | Yudian | Model Number: | AI-501 |
| Usage: | Industrial | Theory: | Temperature Transmitter | Accuracy: | 0.3%FS±0.1°C |
| Temperature Range: | 0-9999°C |
Packaging Details
STANDARD EXPORT CARTON
Product Description

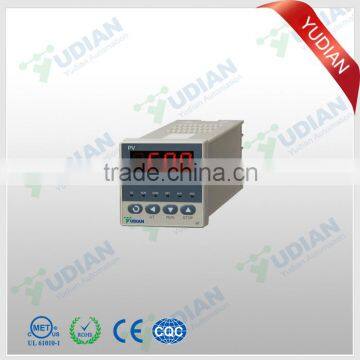

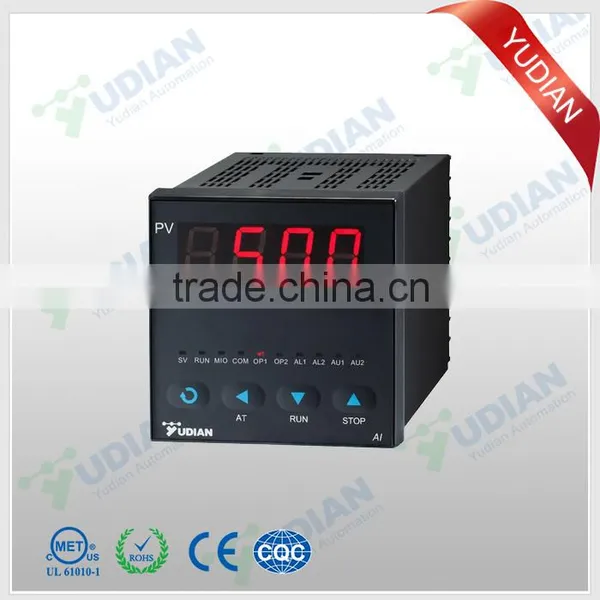

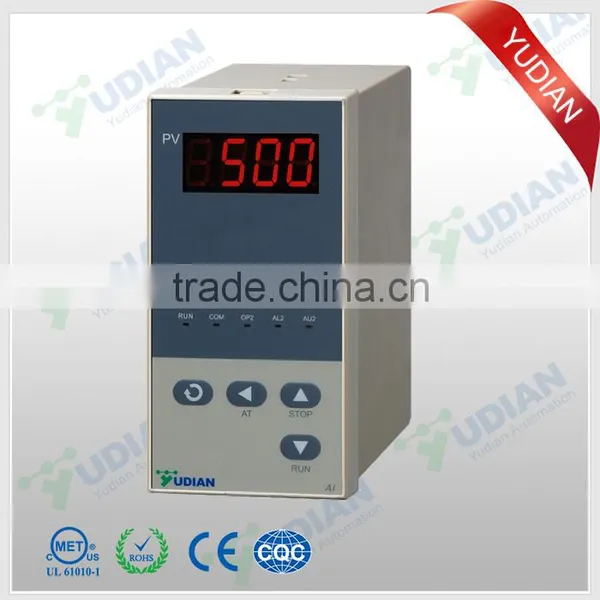

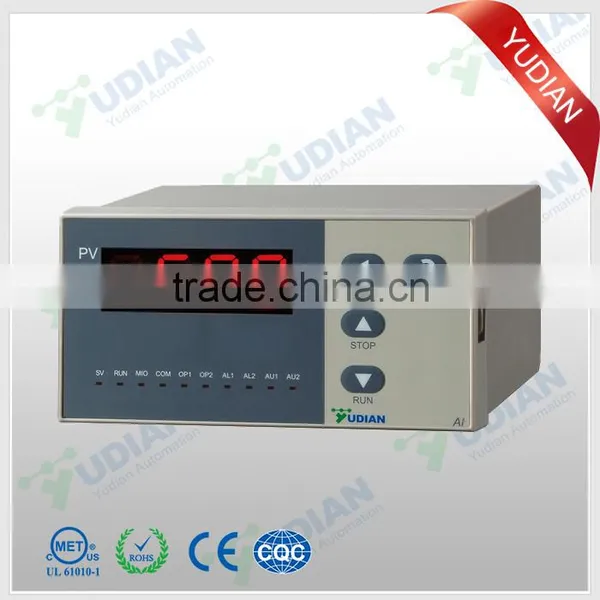

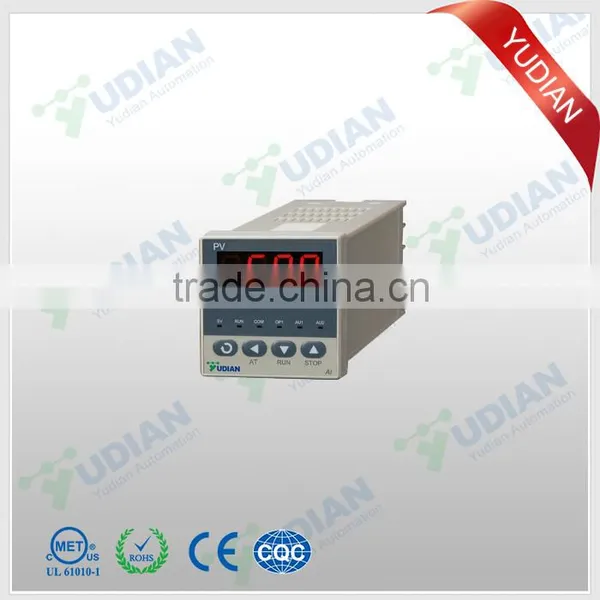

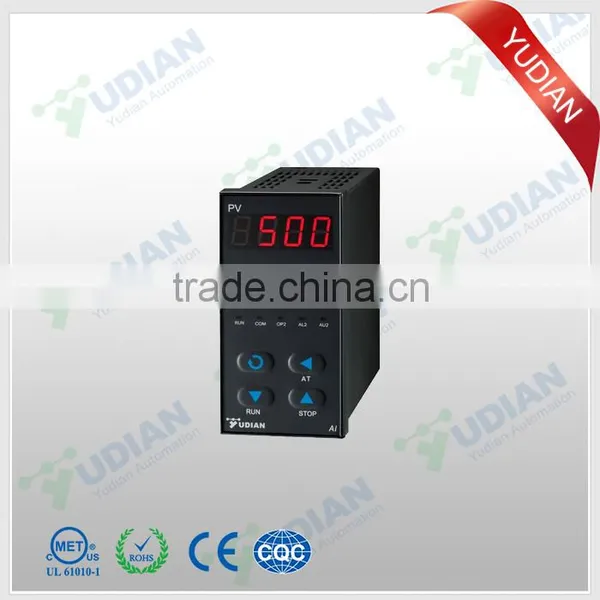

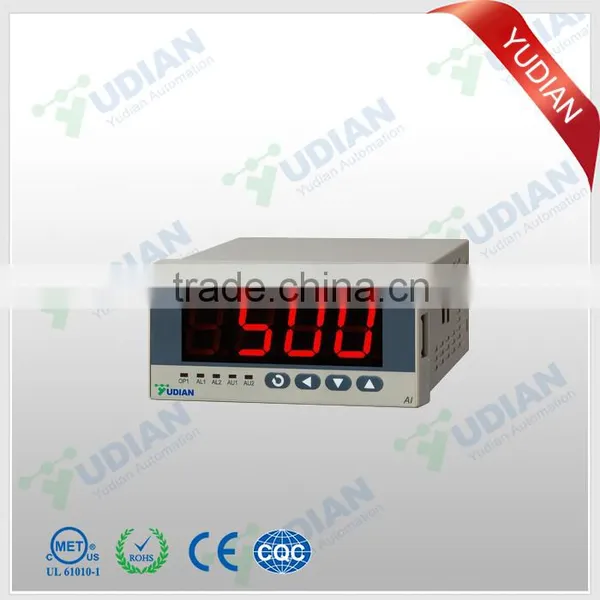

YUDIAN AI-501 digital gas pressure indicator
AI-501 intelligent digital temperature pressure indicator
Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc
Main features:
High measurement accuracy: 0.3%FS ±1°C
Programmable and modular input
Dual display windows, easy to set parameters and alarms points.
Universal input power- 85~264VAC, or 11~26VAC/VDC
Alarms can be outputted to different relays or share one.
RS485 communication interface
Retransmission function
CE, RoHS, ISO9001 approved
Specification:
Control mode | On-off control mode |
Measurement accuracy | 0.3%FS ±1°C |
Resolution | 0.1°C |
Input | Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26 |
RTD: Pt100, Cu50 | |
Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV | |
Linear Current: 0~20mA, 4~20mA | |
Linear resistor: 0~80ohm, 0~400ohm | |
-9990~3000 defined by user | |
Input range | K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C) |
Output (modularized) | Relay output (NO+NC): 250VAC/2A or 30VDC/1A |
Linear current : can transmitter process value | |
General specifications | Voltage: support AC85-265V, 50/60Hz or DC24V. |
Power consumption: ≤5W | |
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5. | |
Operating Ambient : temperature -10~60°C; humidity ≤90%RH |
Ordering code:
Ordering code:
1)Factory with 25 years experience.
2)Quick delivery ( within 3~5 working days).
3)Retail/Wholesale/OEM/ODM available .
We expect to cooperate with machinery manufacturers, better price for bulk order.
4)We provide after sales service and technical assistance as per the customers requirement and needs.
1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
Company Profile
Xiamen Yudian Automation Technology Co., Ltd(YUDIAN),has been devoted to the development and manufacture of industrial process automation controllers since 1991. Through several years of development, YUDIAN has become the number one Chinese intelligent instrument manufacturer, claiming the biggest domestic market share with the sales volume of over 400,000 instruments per year. Our instruments are applied to chemical, petroleum, metallurgy, pharmaceutical, food and beverage and academic industries. Our products are of high quality and competitive prices.
Yudian has constructed a 1000-Square-meter new type factory building in Xiamen Hi-Tech Industrial Development Zone. With multiple modern production and test equipment including fully automatic computer placement machines, lead-free dual crest welders, infrared reflowing welders, high-temperature and high-voltage aging rooms, electromagnetic compatibility testing equipment and humiture environment test laboratories, Yudian can manufacture automation products of the highest quality with the highest precision and reliability.
