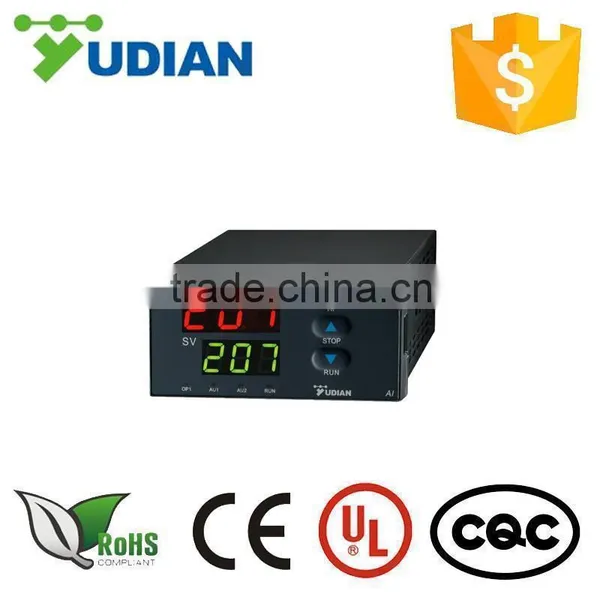

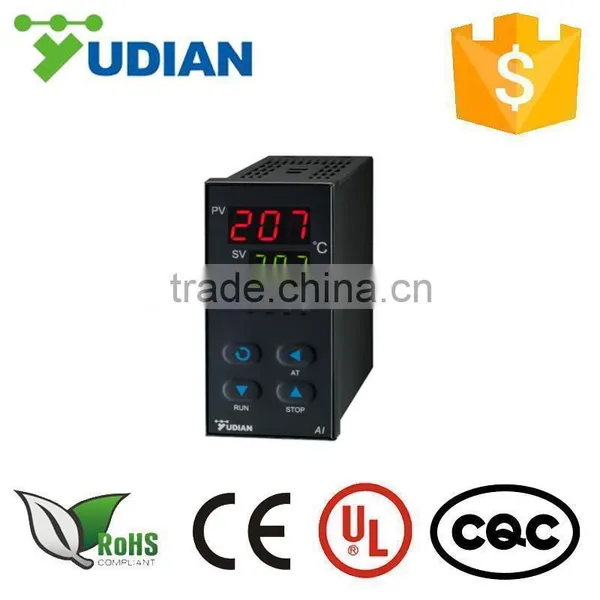

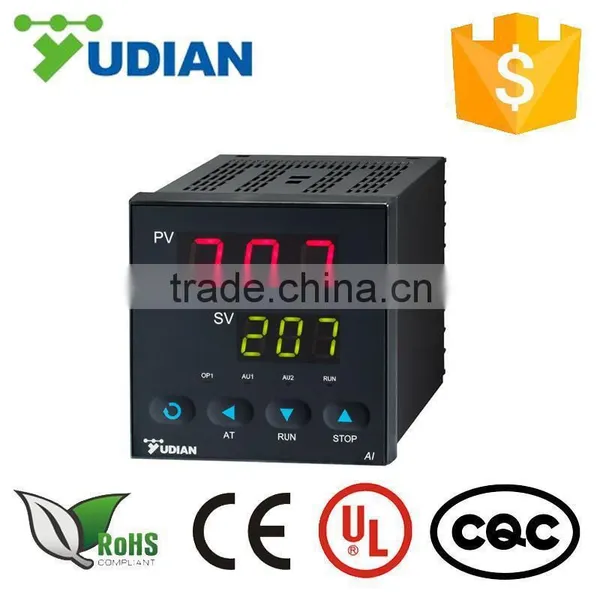

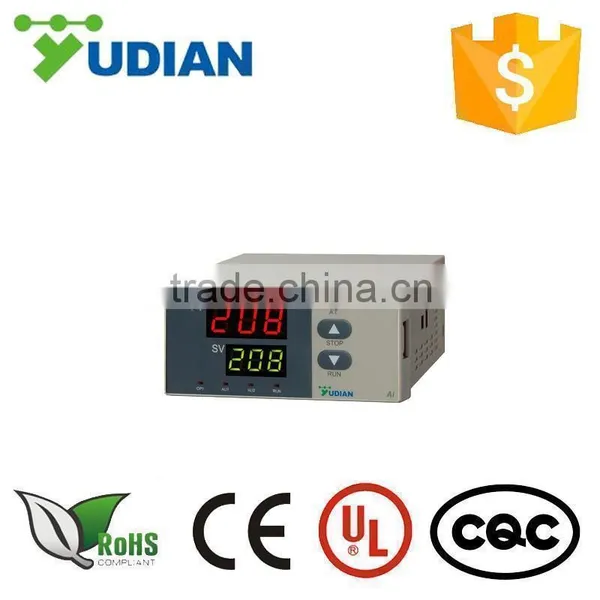

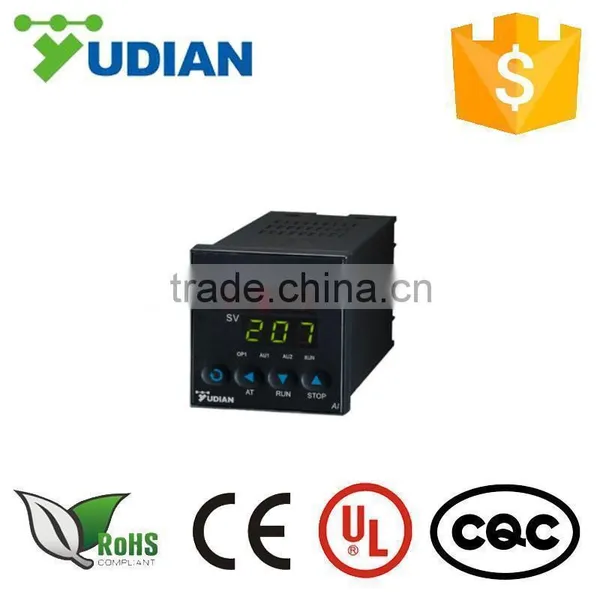

Yudian Best Selling AI-208D2L PID Relay Output Temperature Controller
Main Features for Yudian Best Selling AI-208D2L PID Relay Output Temperature Controller
- Designed specially for equipment that work in 0~+999℃, such as light industry, oven, furnace, lab equipment, cooling/heating equipment. Easy to learn and operate and lowest cost.
- Basic panel AI207/208 is fixed with SSR or relay output modules, no need to add extra output modules. L0 or L5 modules can be added when one or two alarms is needed.
- Universal power supply 100~240VAC.
- Armed with AT and AI PID Intelligent control algorithm function.
- Qualified with ISO9001, CE and CQC, satisfying European RoHS Standard.
Technical Specifications for Yudian Best Selling AI-208D2L PID Relay Output Temperature Controller
1. Input type:
Thermocouple: K, S, R, E, J, N;
Resistance temperature detector: Pt100.
2. Instrument Input range: K, S, R, E, J, N :0~+999°C; Pt100: 0~+800°C.
3. Measurement accuracy: 0.3%FS±1°C.
4. Temperature display resolution: 1.
5. Control mode: On-off control mode , or PID control with the function of parameter auto tuning.
6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.
7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.
8. Power consumption: ≤2W.
9. Ambient temperature: -10℃ to 60℃; Humidity: 0~90RH%.
Model Code Symbol for AI-208D2L PID Relay Output Temperature Controller
Part 1 Stands for Model Series
AI-208, temperature controller 0.3%FS±1℃ accuracy. 1℃ or 0.1℃ display resolution.
Part 2 Dimension
| Size | Front Panel (W*H) | Cut Out (W*H) | Depth Behind Mounting Surface |
| A | 96*96mm | 92*92mm | 100mm |
| A1 | 96*96mm | 92*92mm | 70mm |
| B | 160*80mm | 152*76mm | 100mm |
| B1 | 160*80mm | 152*76mm | 70mm |
| D | 72*72mm | 68*68mm | 95mm |
| D1 | 48*48mm | 45*45mm | 78.5mm |
| D2 | 48*48mm | 45*45mm | 95mm |
| E | 48*96mm | 45*92mm | 100mm |
| E1 | 48*96mm | 45*92mm | 70mm |
| F | 96*48mm | 92*45mm | 100mm |
| F1 | 96*48mm | 92*45 | 70mm |
Part 3 Indicates the Module Installed in OUTP Socket
L Relay contact output module (Capacity: 2A/250VAC, normal open)
G SSR voltage output module (30mA/5VDC)
Part 4 Indicates Auxiliary Alarm Output
N (or none) no module installed
L0 Relay contact output module (Capacity: 2A/250VAC, normal open/ normal close)
L5 Dual relay output moodule (Capacity: 2A/250VAC, normal open, support AU1 and AU2 alarm output)
Remark: For D1-size instrument, OUTP (output module) is SSR mounted with driving voltage 30mA/5VDC. AU1 is also selectable as relay alarm output (NO+NC, 2A/250VAC). D1 is not in modular design.

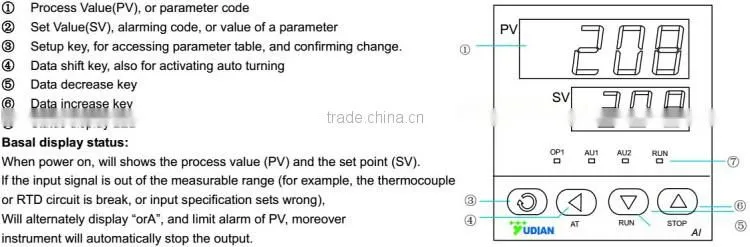

Front Panel and Operation for Yudian Best Selling AI-208D2L PID Relay Output Temperature Controller
Operation Description for Yudian Best Selling AI-208D2L PID Relay Output Temperature Controller
You will get:
1) A piece of temperature controller;
2) A paper of user manual;
3) One-year/ 3-year warranty card and Quality Approval card;
4) A lable of units;
5) A pair of installaton brackets;
6) Nice package carton box with Yudian logo.
- Factory with 26 years experience.
- Three to ten years warranty time.
- Quick delivery ( within 3 working days).
- Retail/ Wholesale/ OEM/ ODM available.
- Better price for bulk order.
- We provide after sales service and technical assistance as customers requirement and needs.
