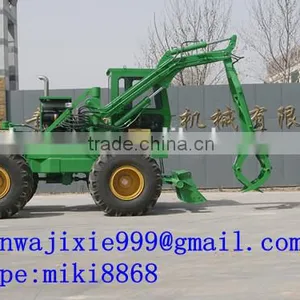

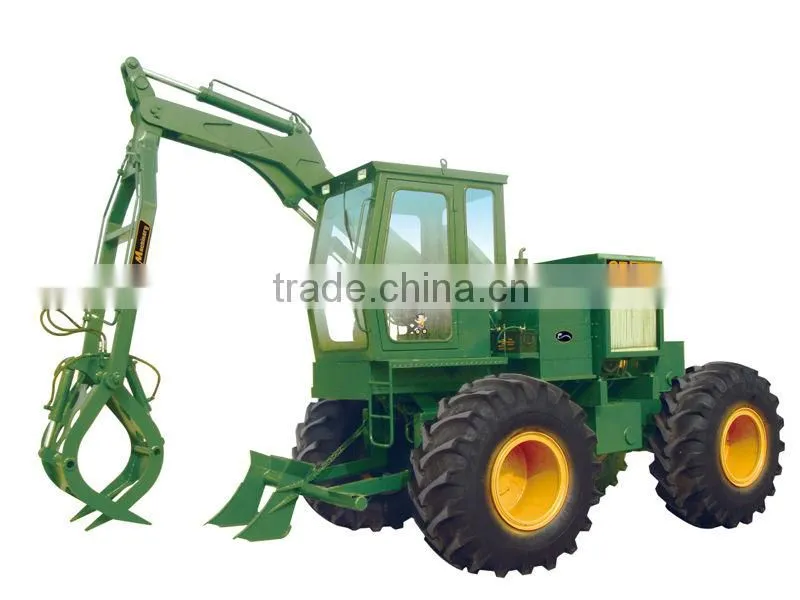

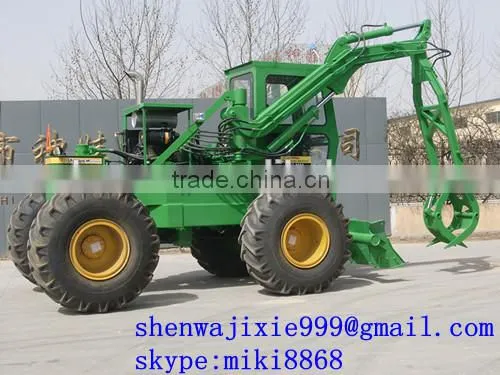

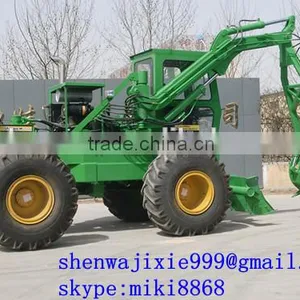

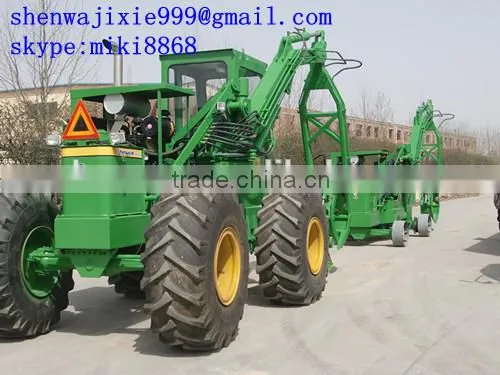

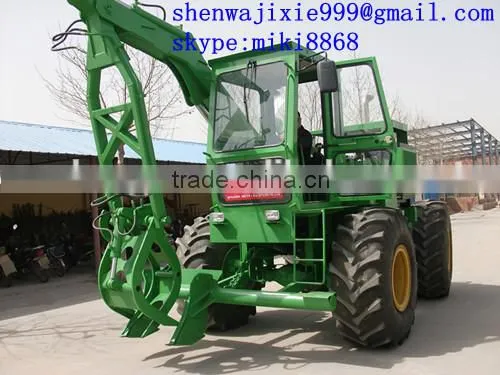

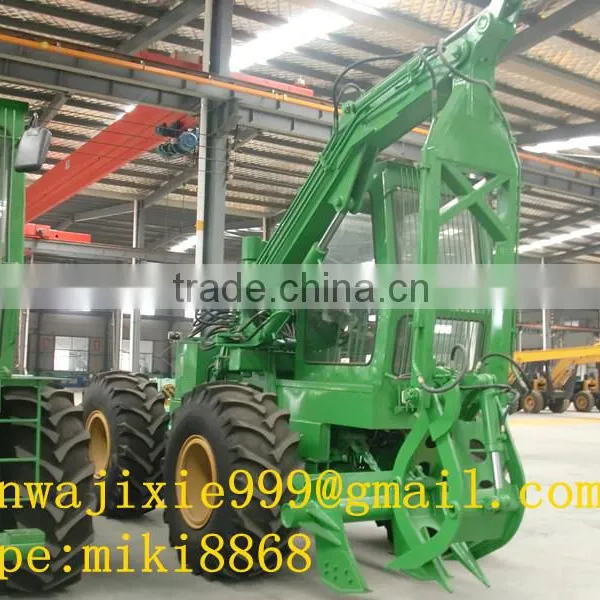

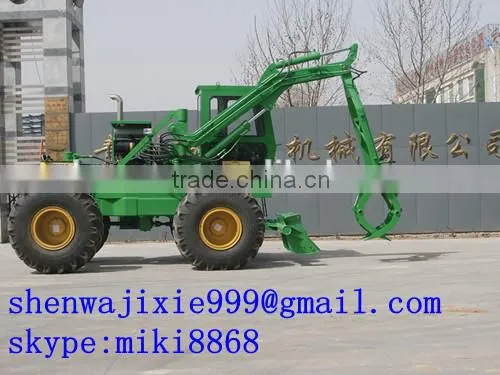

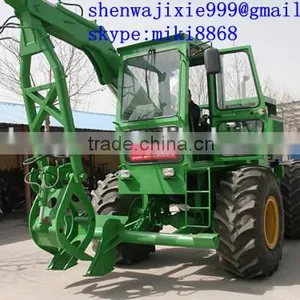

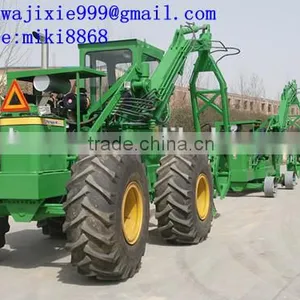

Help CenterSz*7600 Sugarcane Loader Big Loader
Related Products

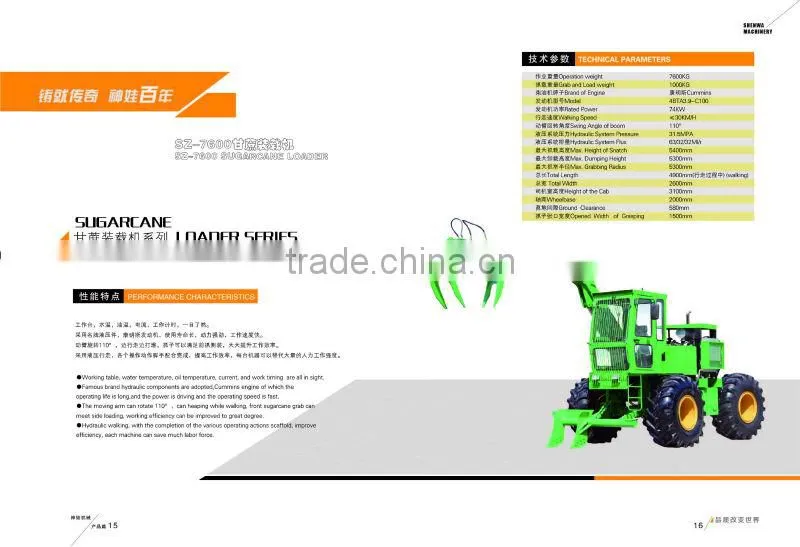

Max grapple height 5400mm
Max dumping height 5300mm
Max grapple radius 5300mm
Engine model 4BT3.9-C100
Rated power 102HP (75KW)
Engine brand Cummins
Total weight 7600kg
Grab capacity 1200-1300kg
Working efficiency 3000kg/min
Working times 3/min
Hydraulic system working pressure 20Mpa
Maxing flux 63ml/r
Slope 25%
Max hauling force 29KN
Working speed ≤25km/h
Boom rotation angle 129°
Overall dimension (L*W*H) 4900*2600*2500mm
Min ground clearance 580mm
Tread 2000mm
Wheel base 2600mm
Tires type 23.1*26
Fuel consumption ≤225g/kw*h
Performance characteristics,
1,Single-cylinder 24hp motor, with smooth discharge, low noise, less oil consumption, the power transmission system is driving and reliable.
2,Novel appearance and model, capacious operator cabin, favorable eyeshot.
3,Hydraulic system with steering preferential, with high efficiency and can save energy, the dynamic performance of which is better.
4,Convenient back cover for repairing, centralized lubricating system, which is convenient to maintain and upkeep.
5,Fork-type carriage, the stability of the complete appliance is good, and the structural strength is high.
6,Ascendant performance of complete appliance, with extraordinary operation efficiency.
7,With which many kinds of optional components can be matched to meet requirements of different users.
