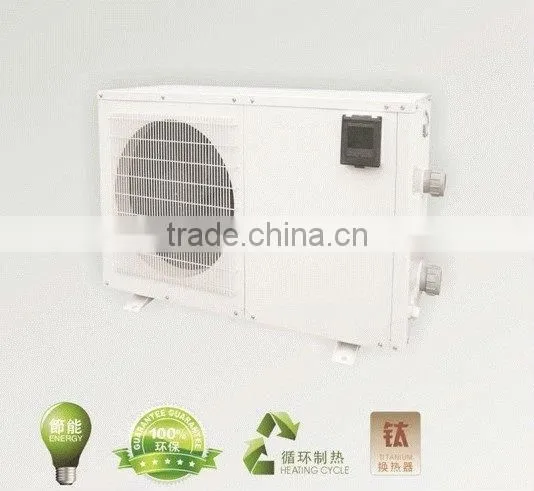

Swimming Pool Heat Pump

Negotiable MOQ: 100 Units (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Air Source Heat Pump

Installation:

Freestanding

Storage / Tankless:

Storage

Shenzhen Zesun Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Type Air Source Heat Pump

Installation Freestanding

Storage / Tankless Storage

Housing Material Stainless Steel

Use Bathroom

Certification CB, CE, CSA, Other, UL, Other, CB, CE, CSA, RoHS, UL, Other

Place of Origin Guangdong, China

Brand Name OEM

Model Number 010R

Specifications

1.R22
2.Voltage:220V 50Hz
3.Power input:3800W
4.Outdoor Net/gross weight:37/40kg

Model	DKRS-020SP	DKRS-030SP	DKRS-050SP	DKRE-070SP	DKRS-100SP	DKRS-150SP
Power supply(V/Ph/Hz)	220/1/50	380/50
Rated input power(Kw)	1.7	3	4.3	5.9	9.6	12.8
Max input power(Kw)	2.6	3.8	6.4	7.8	12.8	17.1
Rated input current(A)	8	4.6	7.4	9.8	14.8	23.2
Max input current(A)	11.5	6.9	11.6	15.2	20	29.3
Rated heating capacity(Kw)	8.6	10.6	17	23.2	38	52
Rated hot water outlet temp(°C)	55
Max hot water outlet temp(°C)	60
Rated water outlet pressure(Mpa)	0.7
Circulating pump flow rate(m³/h)	5~7	5~7	7~9	7~9	11~14	11~14
Circulating pump delivery lift(m)	5	5	5	5	8	8
Water yield(L/Hr,20°C~55°C)	170	255	425	595	850	1270
Water yield(L/Hr,15°C~28°C)	390	590	1050	1470	2100	3150
Compress type	Hermetic scroll compressor(Copeland)
Compressor quantity	1	1	1	2	2	2
Heat exchanger type	Titanium heat exchanger
Refrigerant gas type	R407C/R410A/R417
Fan quantity	1	1	1	2	2	2
Fan power	200	200	200	200	200	200
Waterproof grade	IPX4
Anti-electric shock type	I
Working ambient temp(°C)	≥-10
Noise(db)	≤55	≤55	≤58	≤60	≤60	≤60
Pipe connector interface	G1 1/2	G1 1/2	G2	G2 1/2	G2 1/2	G2 1/2
Major size(mm)	650670795	650670795	7807801075	14507501400	14507501400	175011002000
Weight(kg)	103	103	165	320	435	510
