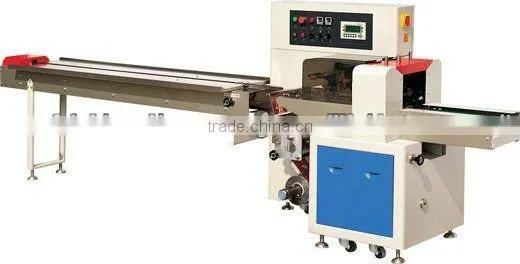

High speed tortilla packaging machine DCTWB-250X
Features
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra
accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controls realized through software, easy for function adjusting and technical upgrade.
Applications
Packaging soft,strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish,
ice-lollies, soft candies, fresh fruits, etc.
Specification |
|
|
Type |
DCTWB-250X |
DCTWB-350X |
Film width |
Max.250mm |
Max.350mm |
Bag length |
65-190 or 120-280mm |
|
Bag width |
30-110mm |
50-160mm |
Product height |
Max.40mm |
|
Film roll diameter |
Max. 320mm |
|
Packaging rate |
40-230bags/min |
|
Power |
220V 50/60Hz 2.4KW |
220V 50/60Hz 2.8KW |
Machine size |
(L)3920x(W)670x(H)1320mm |
(L)4020x(W)720x(H)1320mm |
Machine weight |
800kg |
900kg |
Remarks |
|
|
Sample for reference:
1 year warranty.lifetime maintenance.
What’s material of machine frame?
Carbon steel and stainless steel are available.
What’s the material for conctacted parts of machine?
Stainless steel
For the control panel,how many languages are available?
Usually,English and Chinese are available,if you would like to have other language,pls let us know in advance.
What kind of packing film can be used?
Complex film roll,such as OPP/CPP,CPP/PE,MST/PE/PET/PE.
What is your advantage?
1.Stable and reliable performance of machine, competitive price.
2. To reply your enquiry promptly
3. Low price of spare parts if you need more.
4. In case some malfunction,we promptly offer on-line service, such as E-mail, skype, wechat,viber, whatsapp to supply videos,pictures,
5. Professional technicians are available
