Home > Products > Automatic food packing machine > Automatic small biscuits packaging machine (DCTWB-420D)
Automatic small biscuits packaging machine (DCTWB-420D)
- 30 Set / Sets per Month
- Guangzhou
- T/T Credit Card
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Condition: | New | Function: | Filling, Sealing, Wrapping | Application: | Food, Other, Food, Machinery & Hardware |
Packaging Type: | Film, Foil, Pouch | Packaging Material: | Paper, Plastic, Wood | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V | Power: | 2.2KW |
Place of Origin: | Guangdong, China | Brand Name: | CHUANSONG | Model Number: | DCTWB-420D |
Dimension(L*W*H): | 1080*1300*1400MM | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

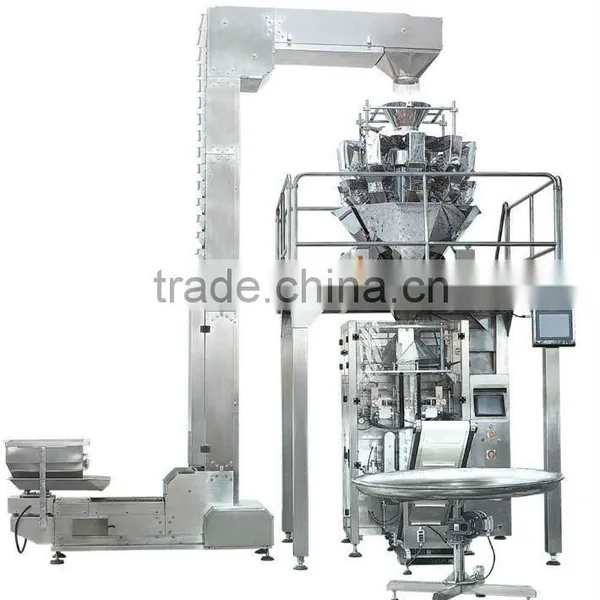

Automatic small biscuits packaging machine with combined weighing (DCTWB-420D)
Complete set of this machine
1. DCTWB-420 main machine 1 piece
2. Ten heads combined scale 1 piece
3.Z type Material conveyor 1 piece
4.Vibrating feeding machine 1piece
5.Supporting platform 1 piece
6.Finished product conveyer 1 piece
Function and structure characteristics
1. The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making,
printing date, product output.
2. The machine struture is compact , rational , stable performance , easy operate .
3. The machine is featured with prauical , stable performance .
4. The opening and closing type metering device can be used according based one the material .
Application scope
Suitable for packing puffed food, fried food , shrimp strip, sea shell , rice , seeds , seed , soybean ,
peanut , etc .
(DCTWB-420 main machine )
Technique Specification
Item No. | DCTWB-420D |
Bag forming type | Pillow bag, side folded bag, square botton vertical bag. |
Packing speed | Max.55bags/min(based on bag length) |
Bag forming length | 80-300mm |
Bag forming width | 60-200mm |
Packing film width | Max.320mm |
Packing volume | 2000ml |
Power supply specification | 220V,2.5KAV |
Total weight of machine | 450kg |
(Ten heads combined scale)
Technique Specification
Item No. | 10 head scale |
Max weight | 1000g |
Measuring range | 10-1000g |
Accuracy | ±0.3-1.5g |
Weighing accuracy | Max 3000cc |
Weighing speed | 60 bags per min |
Types of weight setting | 50 types |
Control section | Fluorescent light display tube (256 X 64 ) |
Function and structure characteristics
1. With instantaneous reaching of correct calculatimgby hig-precision load cell.
2. With quiet running , stable action , and long life by adopting stepmotor.
3. The open & close speed of the material bucket cover can finely regulated according to the
features of the measured material to prevent crashing and damage .
4. Neatness and hygiene by using stainless steel as the material of its parts .
5. With excellent compatibility and easy using with other packing equipment .
Application scope
Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy,
such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit,
peanut, cooked seeds, sweets etc.
Z type bucket chain material elevator
Technique Specification
Item No. | Z type bucket chain material elevator |
Conveying capacity | 3-6 m3/ h |
Voltage | 380V |
Gross weight | 500KG |
Application scope
Suitable for the lifting of frangible and non-frangible material, such as potato slice, prawn cracker , crispy rice , metals , medicines , etc .
Supporting platform
( Finished product conveyer)
Features
The machine can send the packed finished bag to after package detecting device or packing platform.
Technique Specification
Item No. | Finished product conveyer |
Lifting height | 0.8m-1.5m |
Lifting capacity | 1 cmb/hour |
Feeding speed | 30m/minute |
dimension | 2110×340×500mm |
voltage | 220V/45W |
Gross weight | 40KG |

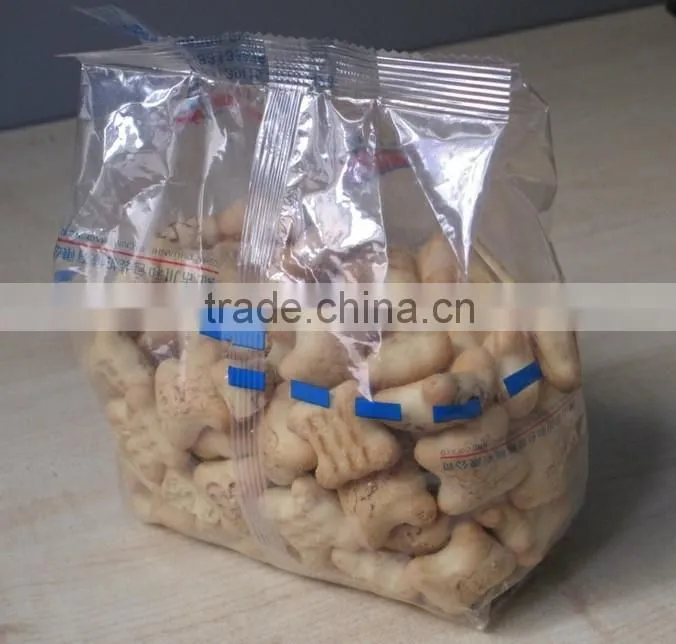

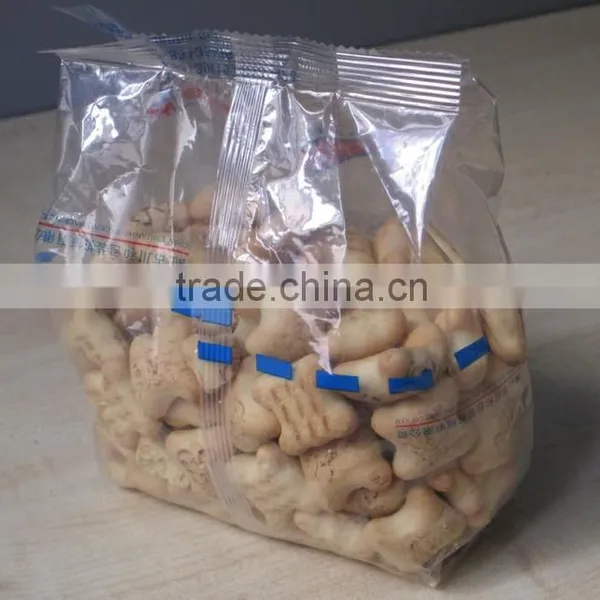

Packing sample:
1 year warranty,lifetime maintenance.
What’s material of machine frame?
Carbon steel and stainless steel are available.
What’s the material for contacted parts of machine?
Stainless steel
For the control panel,how many languages are available?
Usually,English and Chinese are available,if you would like to have other language,pls let us know in advance.
What kind of packing film can be used?
Complex film roll,such as OPP/CPP,CPP/PE,MST/PE/PET/PE.
What is your advantage?
1.Stable and reliable performance of machine, competitive price.
2. To reply your enquiry promptly
3. Low price of spare parts if you need more.
4. In case some malfunction,we promptly offer on-line service, such as E-mail, skype, wechat,viber, whatsapp to supply videos,pictures,
5. Professional technicians are available
How to contact?
Name: Ms Molly Qin
Mobile phone: 0086-13809817727
Skype: crystaltang69
QQ NO.: 1719470161
