Patterned Chevron Rubber Conveyor Belt ,EP, NN, CC Fabric rough top rubber belt

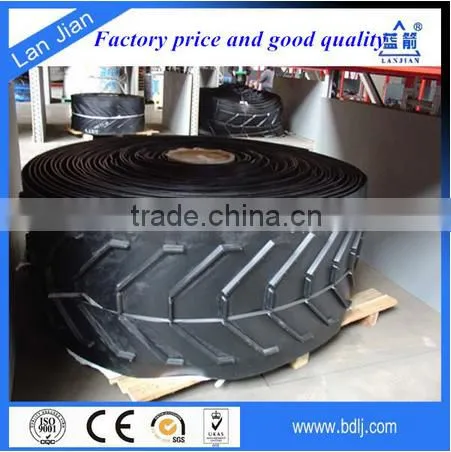

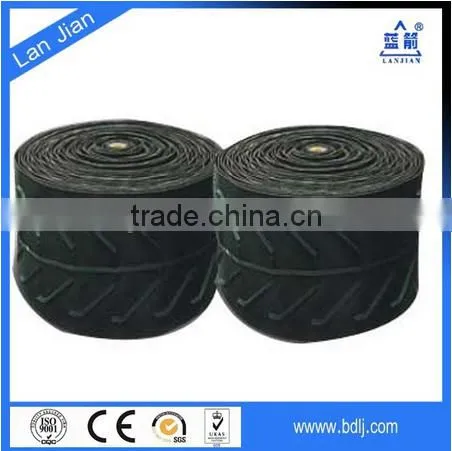

Description of chevron rubber conveyor belt:
Chevron Cleated onveyor Belt
1.Belt Width:300-1800mm
2.Working slope:0-40degree
3.Long work life
4.ISO9001:2008
| Product Name | Chevron Conveyor Belt/Pattern Conveyor Belt |
| Structure |
Top cover rubber,Bottom cover rubber,Pattern, Fabric(NN EP CC canvas) |
| Shapes |
Open V and closed V and other patterns: ribbed,herring,fishbone,round pit,round nail . |
| Types |
General purpose,oil resistant,acid and alkali resistant,heat resistant |
| Layer | 3-10plies |
| Width(mm) | 300-1800 |
| Ends | Open or Endless |
| Materials | SBR,CR,EPDM or Chloroprene rubber |
| Samples | Available |
| Transmission angle | No more than 40 degrees |
| Charcateristics |
1. There is no joint in belt carcass 4. Cleat pattern, angle and pitch are designed elaborately |
| Usage |
Be sed to convey loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees. |

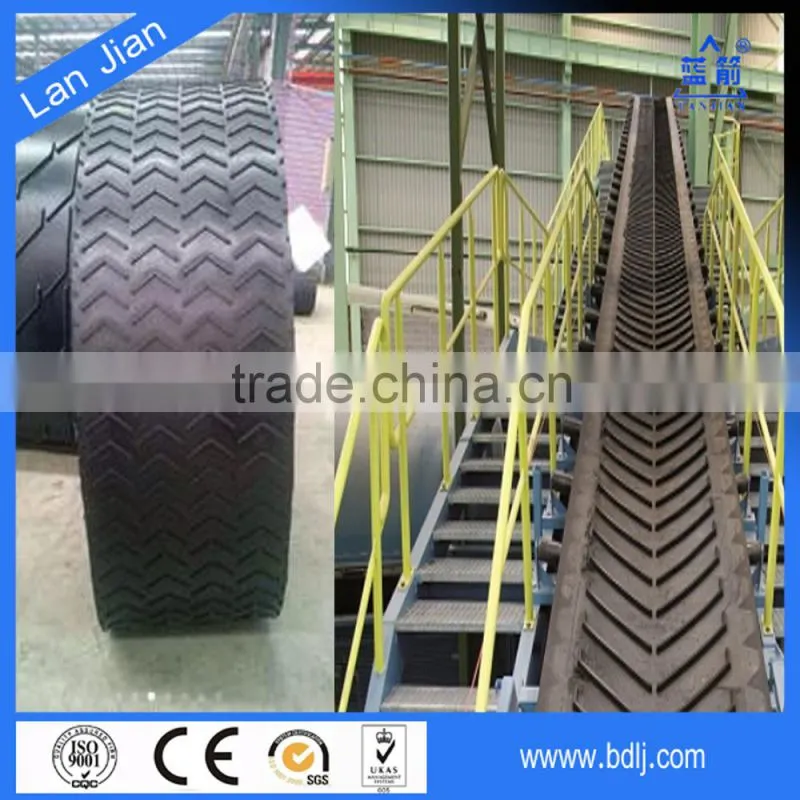

Details of chevron rubber conveyor belt:

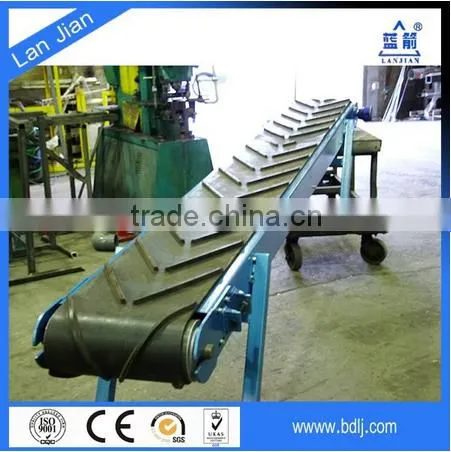

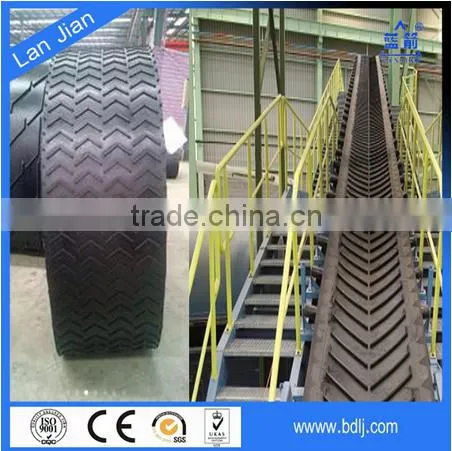

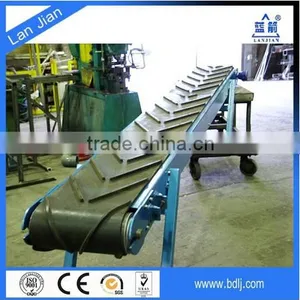

Chevron fabric conveyor belt is used primarily when the angle of incline
becomes too steep for a smooth conventional conveyor belt.
The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with smooth
surface belt. Different cleat designs allow the carrying of many types
of material, from bulk solids to unit loads.
Characteristics of chevron rubber conveyor belt:
1. There is no joint in belt carcass
2. Long service life
3. Cleats and top cover rubber are vulcanized integrally
4. Cleat pattern, angle and pitch are designed elaborately
5. Cleats and top cover rubber are integrally molded.

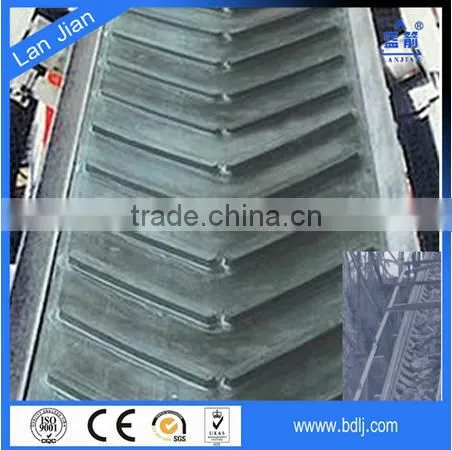

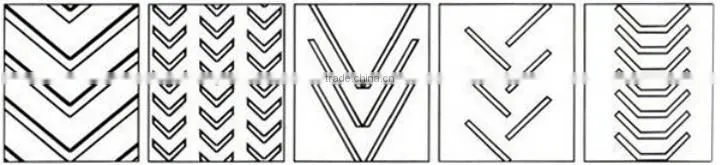

Types of pattern conveyor belt :
1. Open V and closed V and other patterns:ribbed,herring,fishbone,
round pit,round nail .
2. The depth of pattern is 5mm-30mm higher the surface
3. Each kind of pattern includes three types, high, medium and low

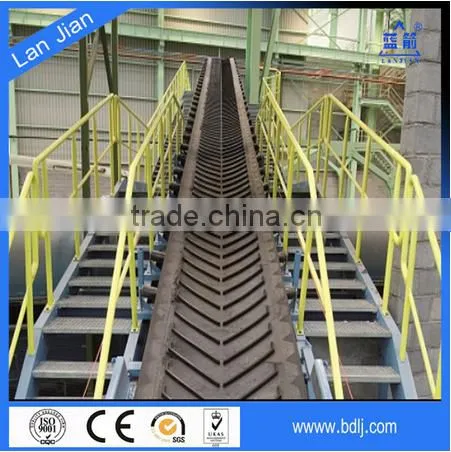

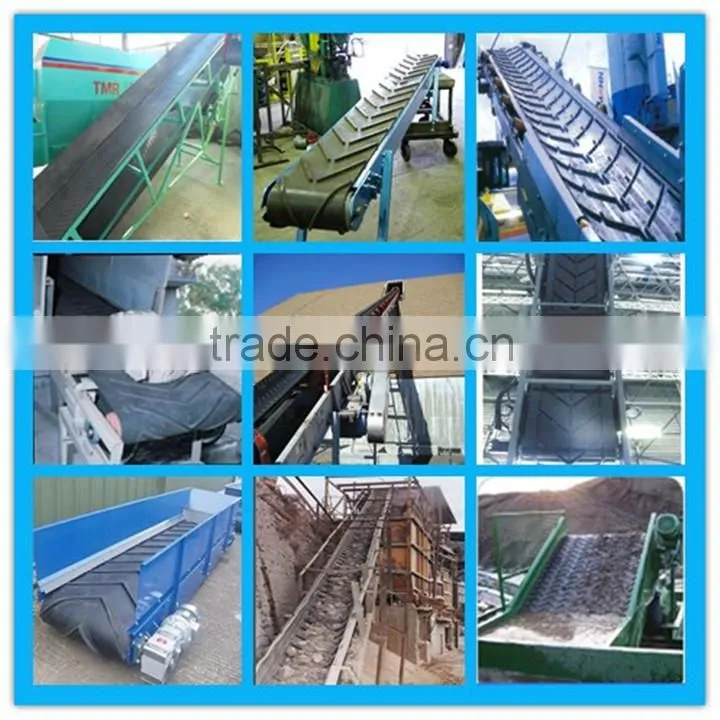

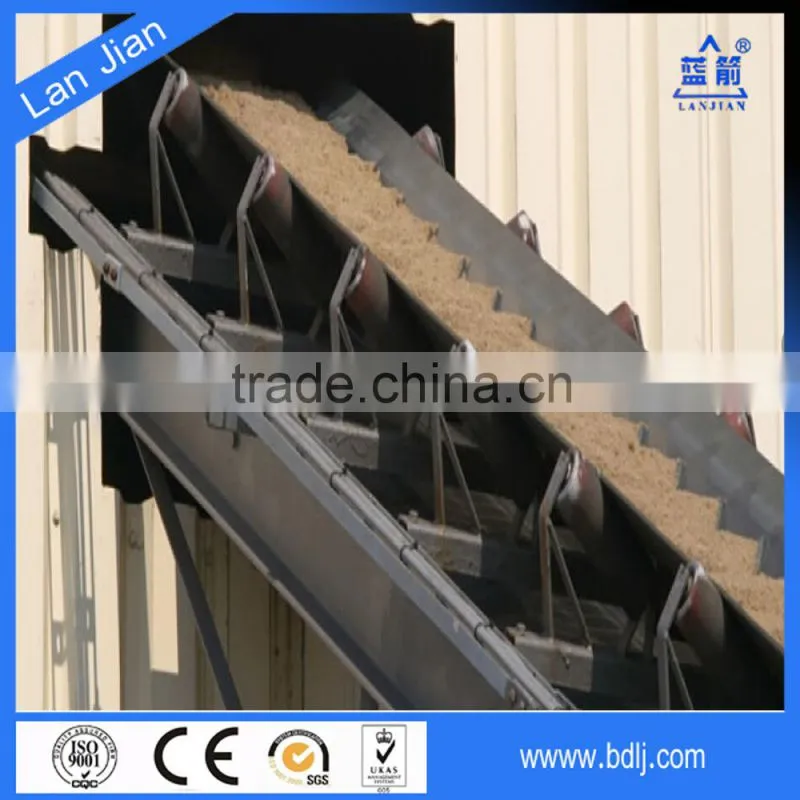

Applications of chevron pattern conveyor belt :
Carry loose materials at angles of 17-18°and bagged materials at 30-35°
Cleat angle and pitch are designed for smooth travel over return idlers.
such as Quarries, Sandpits,Cement works, lime works.
Farming: conveying of beets, grains, potatoes, fertilizers,Coal and
coke,Sugar refineries,Salt mines etc.
After sales service of our rubber conveyor belts:
u In normal usage, we promise to repair it free in case of the conveyor belt gaped.
u In normal usage, we promise to repair it free when the conveyor belt is layered
or the cover fall off in large areas.
u In normal usage, we promise to repair free when the conveyor belt is snapped.
We are in responsible for the joint fees and joint losses.
Note:Please keep normal maintenance against the national standard. As usual, operating
with materials is forbidden, all the losses by illegal operation and maintenance not in time
is not responsible by us.
Lanjian is a professional manufacturer of rubber conveyor belts in
Hebei,China,near in Beijing.If you are interested in our product,Please
kindly email us,We will send you our factory price with specification.
Our main rubber conveyor belts as follows:

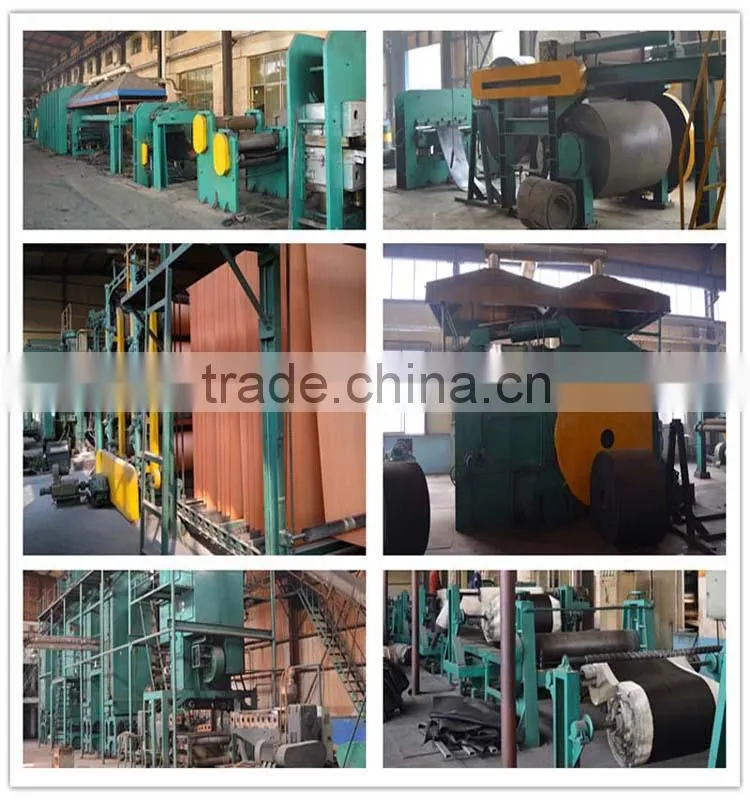

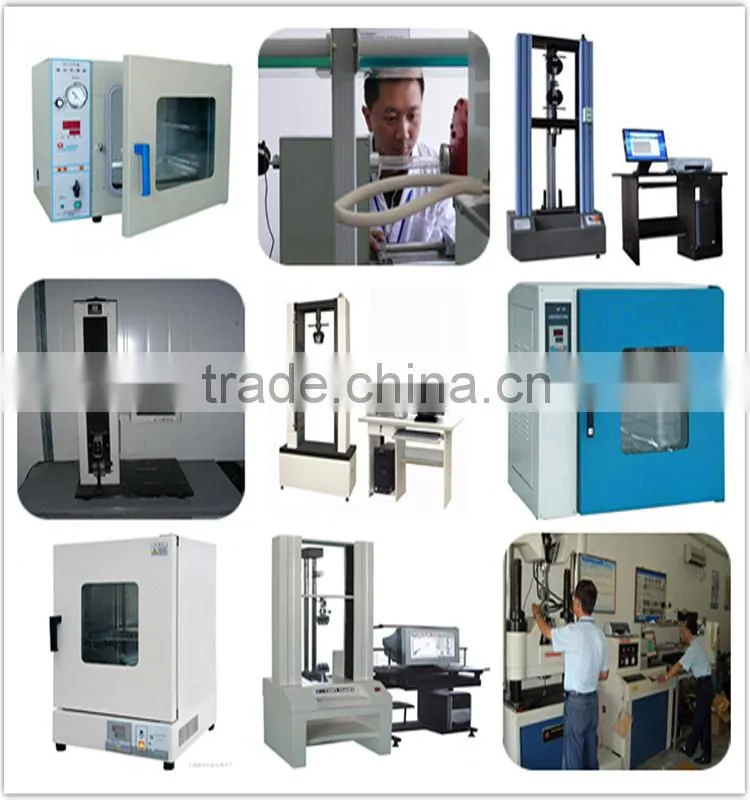

Production facility for rubber conveyor belt:
- 2 sets of Mixing machine
- 3 sets of Calender machine
- 4 sets of Vulcanizing machine
- 2 Electronic tensile strength testing machine
- 1 Heat-aging testing machine
- 1 Abrasion testing machine
Quality control for rubber conveyor belt:
In order to ensure our conveyor belt reach customers' expectations, we have implemented a comprehensive quality control system. We monitor the entire production process from selection of raw materials to all
finished products.
Packaging of Chevron Pattern Conveyor Belts:
Water-proof nylon wrapping package
Shipping of Chevron Pattern Conveyor Belts:
1. By Sea for batch goods
2. Loading port: Tianjin, Shanghai or according to customer's
requirement.
3. Delivery Time: 3 -7 Working days for samples
15-25 Working days for 1-2 20ft containers
20-30 Working days for 3-4 20ft containers
Hebei Lanjian Rubber Belts Co., Ltd.
Established in 1998, Hebei Lanjian Rubber Belts Co.,Ltd is a professional manufacturer specialized in research, development and production of rubber conveyor belt for 10 years.
With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards,such as DIN,AS,BS,JIS,SANS,RMA,etc.
Depending on the strict management system and consummate after-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.
We can supply:
1).general purpose conveyor belt
2).PVC PVG woven solid flame retardant conveyor belt
3).heat/cold resistant conveyor belt
4).abrasion resistant conveyor belt
5).oil resistant conveyor belt
6).chemical resistant conveyor belt
7).polyester(EP) fabric conveyor belt
8).nylon(NN) fabric conveyor belt
9).corrugated sidewall conveyor belt
10).cotton canvas(CC) conveyor belt
11).circular/endless conveyor belt
12).chervon patterned conveyor belt
After sales service:
1.In normal usage, we promise to repair it free in case of the conveyor
belt gaped.
2. In normal usage, we promise to repair it free when the conveyor belt is layered or the cover fall off in large areas.
3.In normal usage, we promise to repair free when the conveyor belt is
snapped. We are in responsible for the joint fees and joint losses.
Note:Please keep normal maintenance against the national standard. As usual, operating with materials is forbidden, all the losses by illegal
operation and maintenance not in time is not responsible by us.
Samples can be customized according to buyer's requirements and free samples can be sent for evaluations.
Any inquiry of high Incline conveyor belt for slant angle conveying bulk materials, please feel free to contact us.
Our Product quality has been recognized by many enterprises, and we have a long term cooperation with many large enterprises in domestic.
As an specialized manufacturer, Hebei Lanjian Rubber Belts Co.,Ltd is an ISO9001:2008 and ISO14001:2004 certificated company for its entire operation,including manufacturing, purchasing and marketing.
We could supply the most professional, high-quality and efficient service at the customer's requirement.
2.Professional manufacturer,we have professional team to design
and manufacture conveyor belt as customer requested.
3.All of our products 100% inspection before shipment, we guarantee
to use our products safety.
4.We own the best after-sale service.If there any problems happen,
our team will do our best to solve for customers.
5.Faster delivery, 7-10 days after we receive the payment.
6.Any problems during use, you can freely contact with us by email
or by telephone.
We sincerely welcome our old and new customers for developing a long-term business relationship and building a better future.
Hope our conveyor belt can help your business.Any questions contact me as soon as possible,I will answer you within 24 hours.
