Factory price Cotton Fabric Rough Diamond Conveyor Belt, Cleated Conveyor Belt
Description :
Chevron Cleated onveyor Belt
1.Belt Width:300-1800mm
2.Working slope:0-40degree
3.Long work life
4.ISO9001:2008

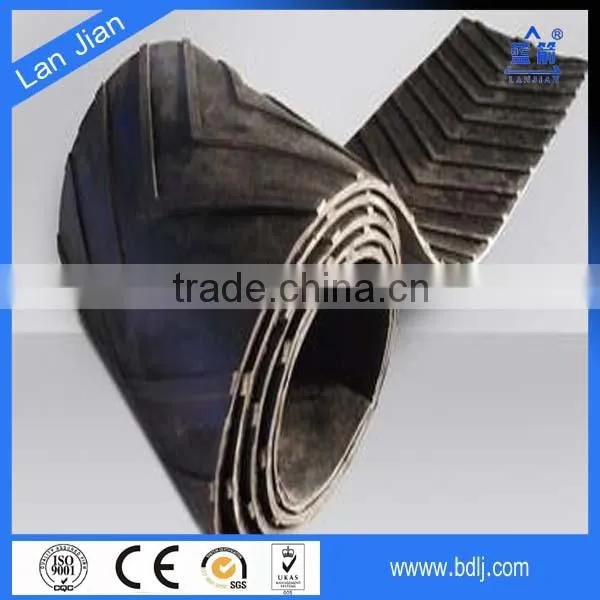

| Product Name | Chevron Conveyor Belt/Pattern Conveyor Belt |
| Structure |
Top cover rubber,Bottom cover rubber,Pattern, Fabric(NN EP CC canvas) |
| Shapes |
Open V and closed V and other patterns: ribbed,herring,fishbone,round pit,round nail . |
| Types |
General purpose,oil resistant,acid and alkali resistant,heat resistant |
| Layer | 3-10plies |
| Width(mm) | 300-1800 |
| Ends | Open or Endless |
| Materials | SBR,CR,EPDM or Chloroprene rubber |
| Samples | Available |
| Transmission angle | No more than 40 degrees |
| Charcateristics |
1. There is no joint in belt carcass 4. Cleat pattern, angle and pitch are designed elaborately |
| Usage |
Be sed to convey loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees. |
Details:

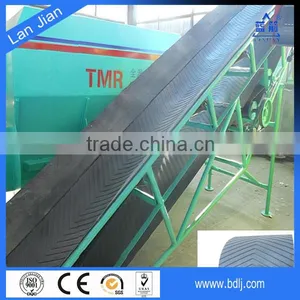

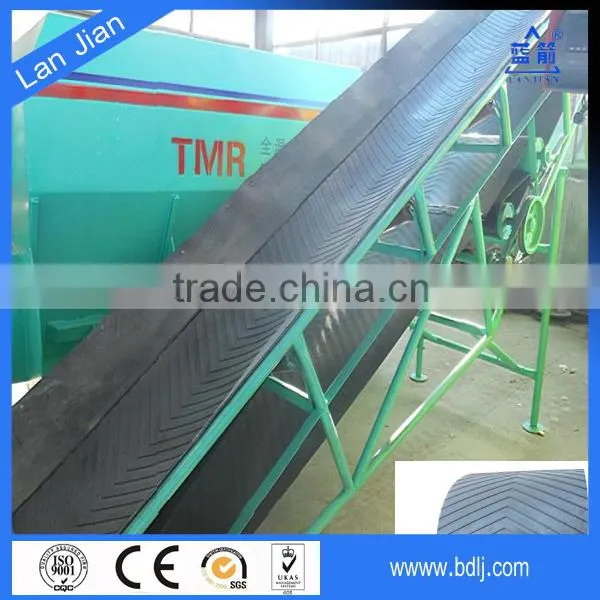

Chevron fabric conveyor belt is used primarily when the angle of incline
becomes too steep for a smooth conventional conveyor belt.
The belt is fitted with integrally moulded cleats which prevent the material from sliding backwards as would be the case with smooth
surface belt. Different cleat designs allow the carrying of many types
of material, from bulk solids to unit loads.
Characteristics of chevron conveyor belt :
1. There is no joint in belt carcass
2. Long service life
3. Cleats and top cover rubber are vulcanized integrally
4. Cleat pattern, angle and pitch are designed elaborately
5. Cleats and top cover rubber are integrally molded.
Types of pattern conveyor belt :

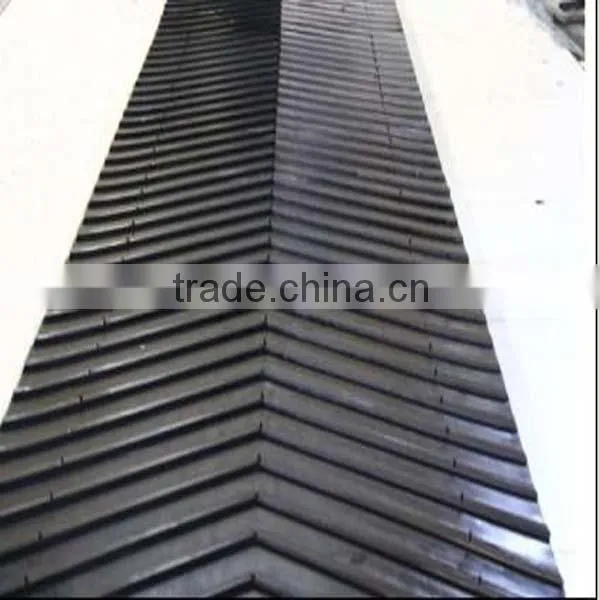

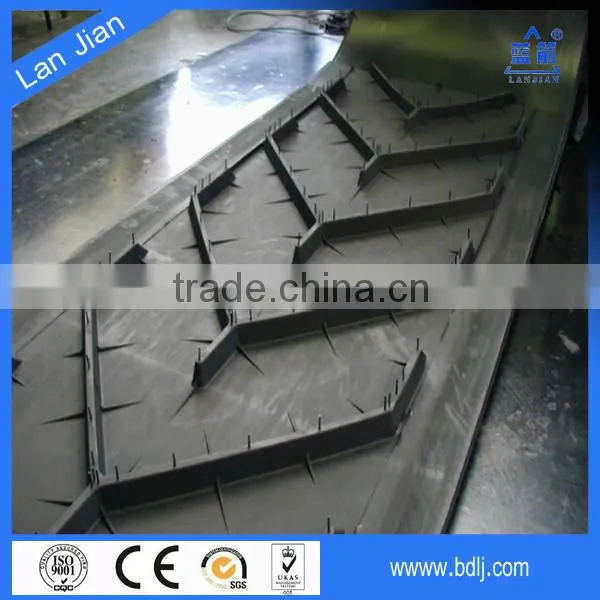

1. Open V and closed V and other patterns:ribbed,herring,fishbone,
round pit,round nail .
2. The depth of pattern is 5mm-30mm higher the surface
3. Each kind of pattern includes three types, high, medium and low
Applications of chevron pattern conveyor belt :
Carry loose materials at angles of 17-18°and bagged materials at 30-35°
Cleat angle and pitch are designed for smooth travel over return idlers.

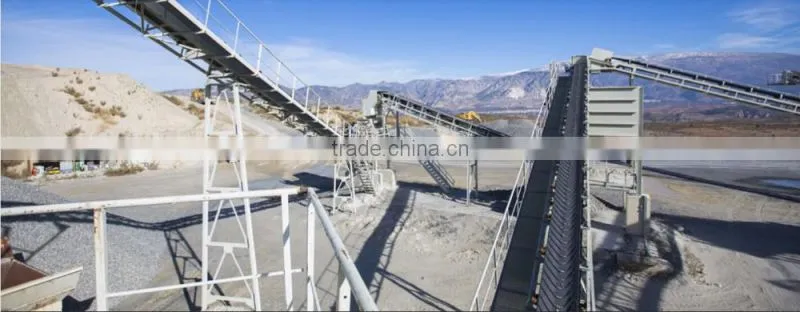

such as Quarries, Sandpits,Cement works, lime works
Farming: conveying of beets, grains, potatoes, fertilizers
Coal and coke,Sugar refineries,Salt mines etc.
After sales service:
u In normal usage, we promise to repair it free in case of the conveyor belt gaped.
u In normal usage, we promise to repair it free when the conveyor belt is layered
or the cover fall off in large areas.
u In normal usage, we promise to repair free when the conveyor belt is snapped.
We are in responsible for the joint fees and joint losses.
Note:Please keep normal maintenance against the national standard. As usual, operating
with materials is forbidden, all the losses by illegal operation and maintenance not in time
is not responsible by us.
Category of Lanjian rubber conveyor belt:
*According to Applications:
*Heat resistant conveyor belts
*Cold resistant conveyor belts
*Oil resistant conveyor belts
*Chemical resistant conveyor belts
*Ablation resistant conveyor belts
*Flame resistant conveyor belts
*Fire resistant conveyor belts
*Common use conveyor belts
*According to shape:
*Flat conveyor belts
*Corrugated sidewall conveyor belts
*Patterned conveyor belts
*According to carcass:
*Fabric (CC, TC, NN, EP,EE) conveyor belts
*Steel Cord conveyor belts
1. Company Name: Hebei Lanjian Rubber Belts CO.,Ltd
2. Location: Baoding-the city of RUBBER PRODUCTS, 1.2 Hours away from Beijing Airport.
3. Employee: 212 staff, including 8 engineers.
4. Scale: one of the three biggest manufactuers for conveyor belt in Hebei.
5. Production Capacity: 900,000 meters per year.
6. Main Market:Sourth America,South Africa,Southeast Asia, Russia, Middle East.
7.Test:Lanjian has advanced test equipments for mining industry rubber conveyor belt for conveyor belt system .and ensure 100% QC inspection before shippment.
8.Certificate:As an specialized manufacturer, Hebei Lanjian Rubber Belts Co.,Ltd is an ISO9001:2008 and ISO14001:2004 certificated
company for its entire operation,including manufacturing,purchasing
and marketing. We could supply the most professional, high-quality and efficient service at the customer's requirement.
Factory price Cotton Fabric Rough Diamond Conveyor Belt, Cleated Conveyor Belt

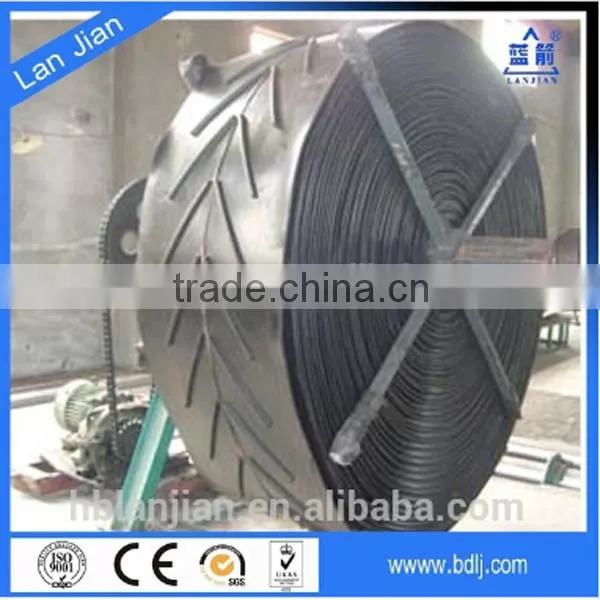

Packaging: PP bag packed all side, rubber core / steel pipe in side .
generally can load 10-25 rolls one container
Loading Port: Tianjin,Shanghai,Qingdao or as your request.
Delivery Time: 3 -7 Working days for samples
15-25 Working days for 1-2 20ft containers
20-30 Working days for 3-4 20ft containers
Payment Terms:30% T/T in advance, other 70% T/T should be
paid before shipment.
MOQ:100 meters
1.Any Inquires will be replied within 24 hours.
2.Professional manufacturer,we have professional team to design
and manufacture conveyor belt as customer requested.
3.All of our products 100% inspection before shipment, we guarantee
to use our products safety.
4.We own the best after-sale service.If there any problems happen,
our team will do our best to solve for customers.
5.Faster delivery, 7-10 days after we receive the payment.
6.Any problems during use, you can freely contact with us by email
or by telephone.
After sales service:
u In normal usage, we promise to repair it free in case of the conveyor belt gaped.
u In normal usage, we promise to repair it free when the conveyor belt is layered or the cover fall off in large areas.
u In normal usage, we promise to repair free when the conveyor belt is snapped.We are in responsible for the joint fees and joint losses.
Note:Please keep normal maintenance against the national standard. As usual, operating with materials is forbidden, all the losses by illegal
operation and maintenance not in time is not responsible by us.
We sincerely welcome our old and new customers for developing
a long-term business relationship and building a better future.
please send your inquiry details in the below for free sample,
click "send' now!
