chevron pattern conveyor belt,ribbed conveyor belt :
1)Features of Lanjian chevron pattern conveyor belt:
| Name | Patterned conveyor belt |
| Shape | "U" pattern,"V" pattern and "/" pattern. Customer can also order other patterns as wel |
| Material | CC,NN,EP,Rubber |
| Fabric type |
CC-56 EP-80,EP-100,EP-125,EP-150,EP-160,EP-200,EP-250,EP-300,EP-350,EP-400,EP-500 NN-100,NN-150,NN-150,NN-150,NN-200,NN-250,NN-300,NN-350,NN-400,NN-500 |
| Specification |
Width: 300-1000mm Layers: 3-10 layers Pattern Height: 5,10,15,20,25,30(mm) Pattern Distance: 125,200,250,330,400,500(mm) |
| Kinds |
Common conveyor belt, Oil resistant conveyor belt, Acid&alkali resistant conveyor belt, Heat resistant conveyor belt and so on. |
| Usage | powdered,granulated,small lump materials,packaged materials |
| Degree | ≤40o |

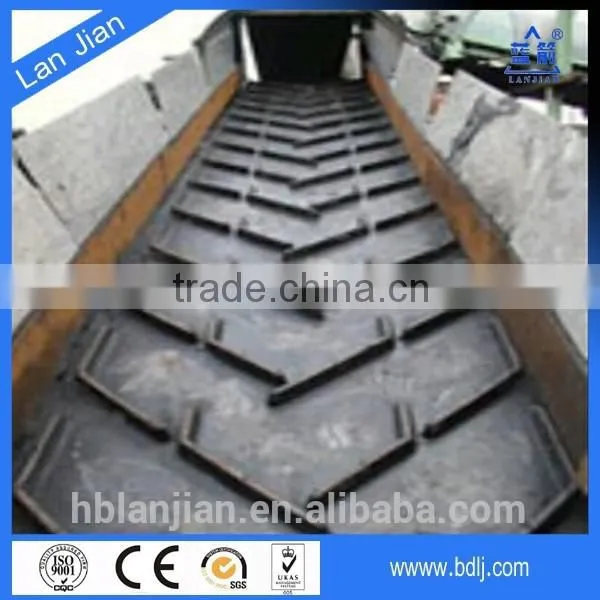

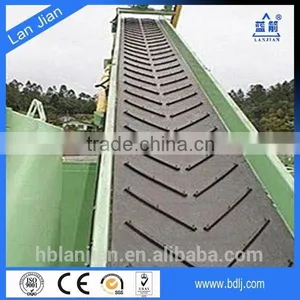

"U" pattern/"V" pattern/"/" pattern chevron pattern conveyor belt
2). Usage:

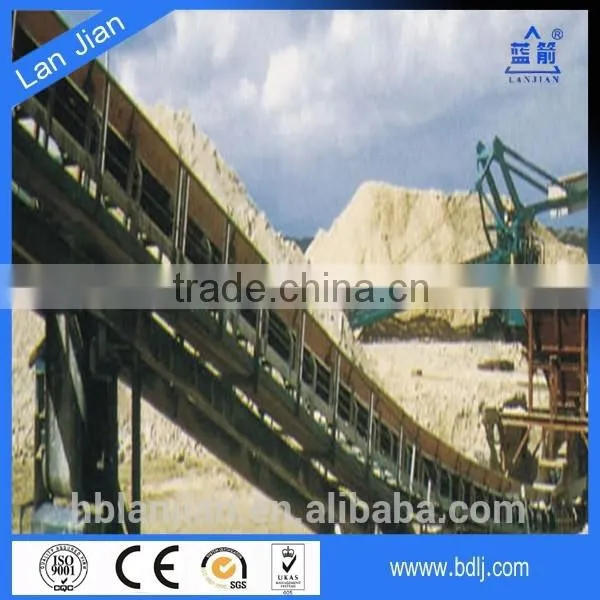

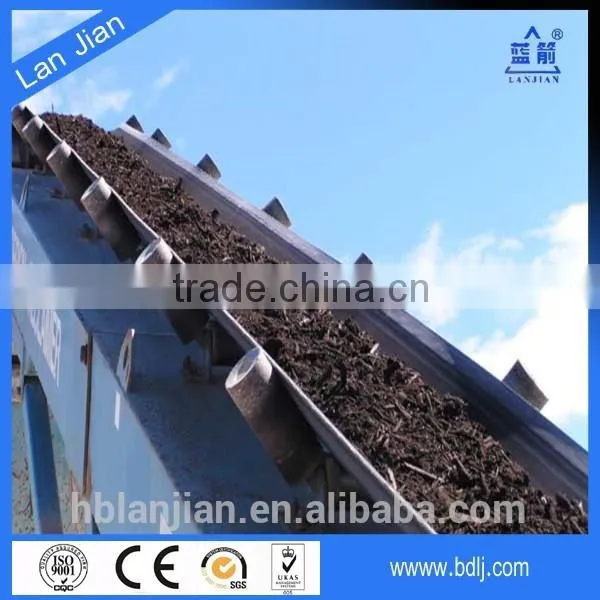

Lanjian chevron conveyor belt used in
convey powdered,granulated and small lump materials at the gradient of no more than 40 degrees. It can also convey packaged materials.

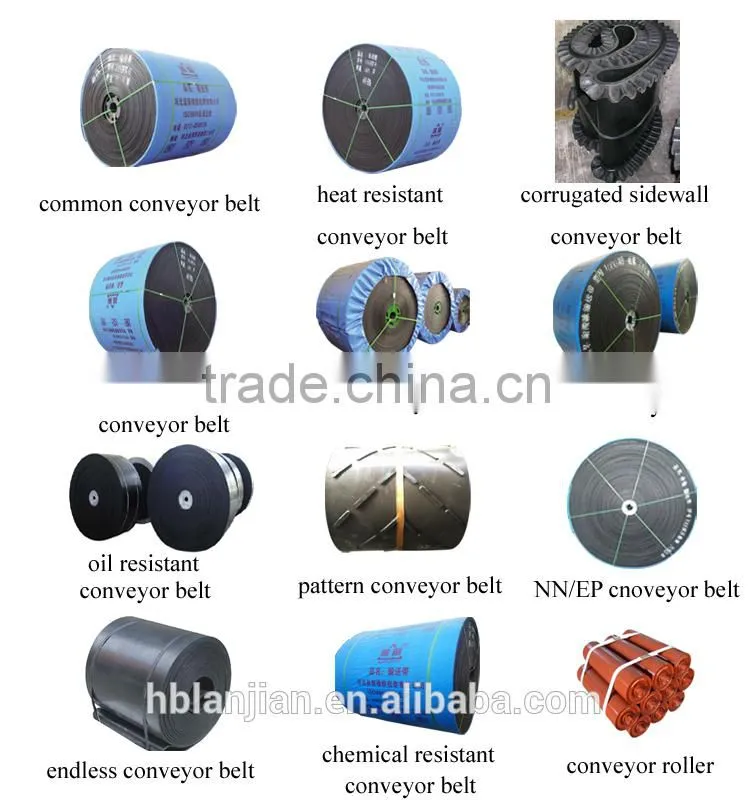

3). More rubber conveyor belt
EP Conveyor Belt: |
This kind of belt has good elasticity,low elongation in use,heat resistant and anti-shock,suitable for middle/long distance and high speed conveying with heavy load capacity. |
NN Conveyor Belt: |
This kind of belt has good elasticity and high tensile strength,anti-shock,warp resistant,easy to trough and low elongation,suitable for for middle/long distance and high speed conveying with heavy load capacity. |
Cotton Conveyor Belt(CC56): |
A kind of traditional conveyor belt,suitable for short/middle distance conveying. |
| Kinds | According to the rubber cover,the multi-ply conveyor belt can be mainly clarified as follows:Conventional,Oil resistant,Acid-alkali resistant,Heat resistant,High temperature resistant,Flame retardant and Cold resistant,etc. |
| Belting type | Textile type |
Ply Thickness |
Strength per ply |
Piles of textile | cover thickness |
Belting width (mm) |
Length (m) |
Cover grade | |
|
Top cover |
Bottom cover |
||||||||
| EP belting | EP-80 | 0.8 | 80 |
2~8 better no more than 6 piles |
2.0~8 |
0~4.5 |
400~2500 | ≤300 |
Abrasion resist impact resist heat resistant Oil resistant Acid/alkali resist Fire resistant etc |
| EP-100 | 0.8 | 100 | |||||||
| EP-125 | 0.85 | 125 | |||||||
| EP-150 | 0.9 | 150 | |||||||
| EP-160 | 0.9 | 160 | 500~2500 | ||||||
| EP-200 | 1.05 | 200 | |||||||
| EP-250 | 1.25 | 250 | |||||||
| EP-300 | 1.35 | 300 | |||||||
| EP-350 | 1.5 | 350 | 600~2500 | ||||||
| EP-400 | 1.8 | 400 | |||||||
| EP-500 | 2 | 500 | |||||||
| NN belting | NN-100 | 0.7 | 100 |
2~10 better no more than 8 piles |
1.5~8 | 0~4.5 | 400~2500 | ≤300 |
Abrasion resist impact resist heat resistant Oil resistant Acid&alkali resist Fire resistant etc |
| NN-125 | 0.75 | 125 | |||||||
| NN-150 | 0.8 | 150 | |||||||
| NN-200 | 0.9 | 200 | 500~2500 | ||||||
| NN-250 | 1.1 | 250 | |||||||
| NN-300 | 1.25 | 300 | |||||||
| NN-350 | 1.35 | 350 | 800~2500 | ||||||
| NN-400 | 1.7 | 400 | |||||||
| NN-500 | 1.8 | 500 | |||||||
| CC belting | CC-56 | 56 | 3~12 | 3.0 4.5 6.0 | 1.5 2.0 3.0 | 400~1600 | ≤200 | ||

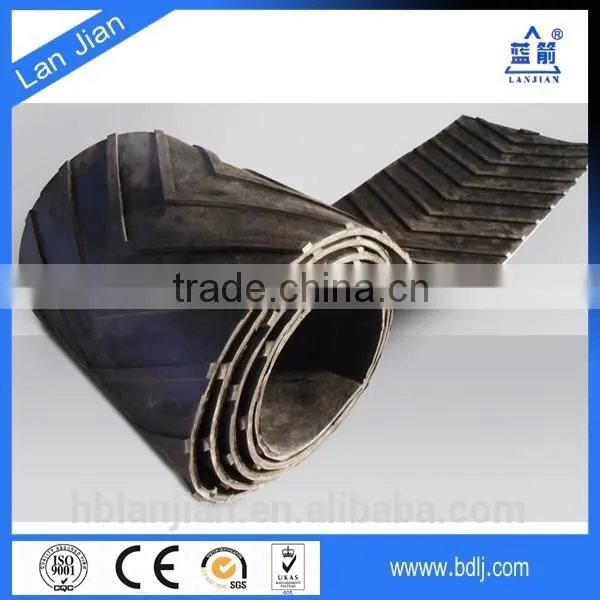

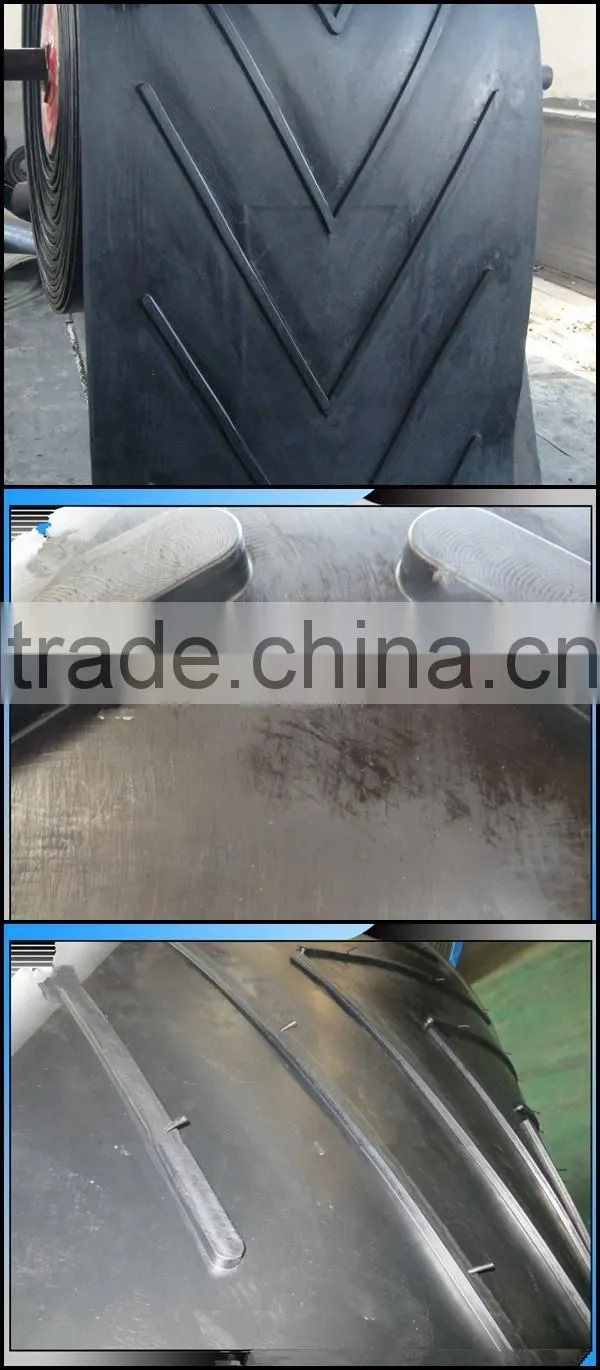

chevron pattern conveyor belt
7). Certificates:

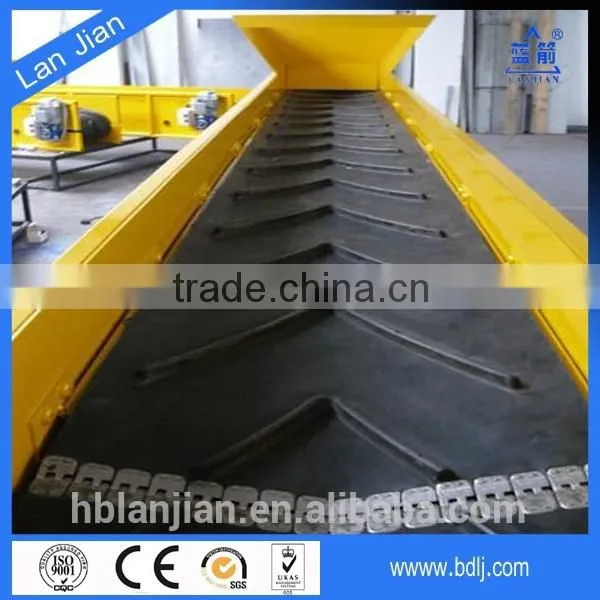

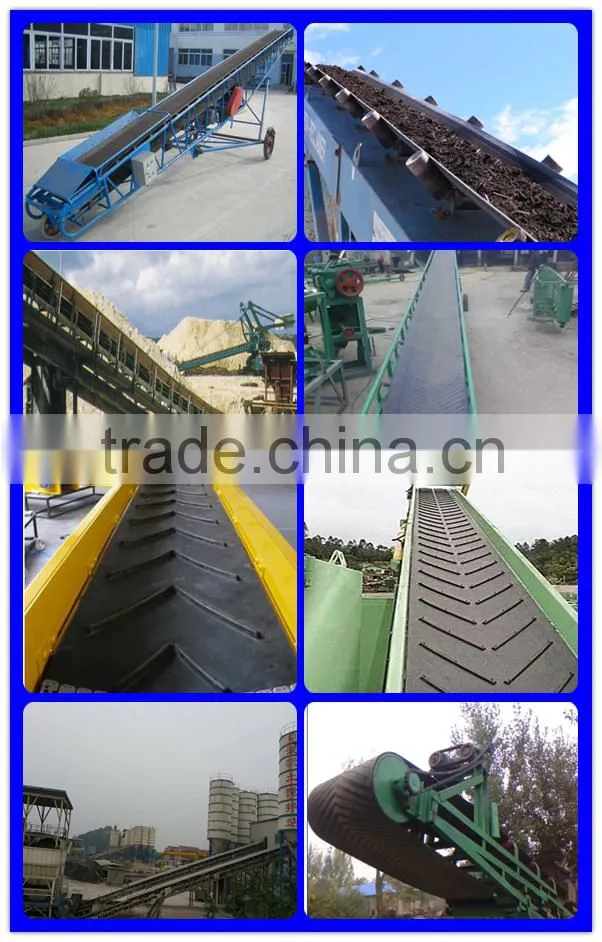

chevron conveyor belt

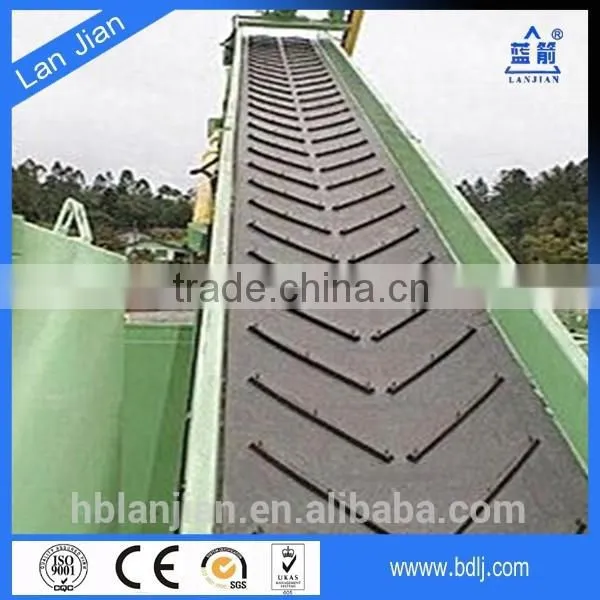

chevron rubber cleat conveyor belt

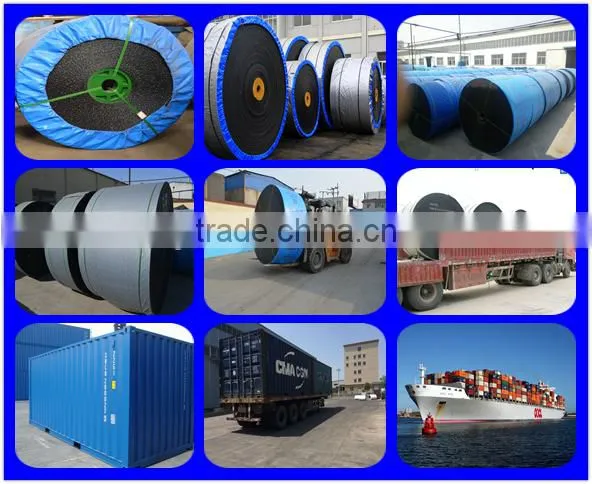

8)packing &shipping
Packaging:Anti-ultraviolet PP Bag packed all side of the conveyor belt,rubber core/steel pipe in side,generally load 10-25 rollers conveyor belt in one full 20 feet container,about 18-23 tons.
MOQ:100 Meters.
Capacity:500000 meters per month.
payment terms:T/T,L/C,West union. 30% at advance,the balance will be paid before shippment by T/T.
9)our service
We offer EP/Nylon/Cotton/Steel cord belt with heat/cold/high temperature/burn/chemical/oil resistant properties and our rubber belts are widely used in mining/cements/metallurgy /ports industries.Any needs,please contact us.
After Sale Service:
About shipment and sample quality tracking include life time,all your inquiry will be replied within 24 hours by our customer service professionals.Any questions please feel free to contact with us

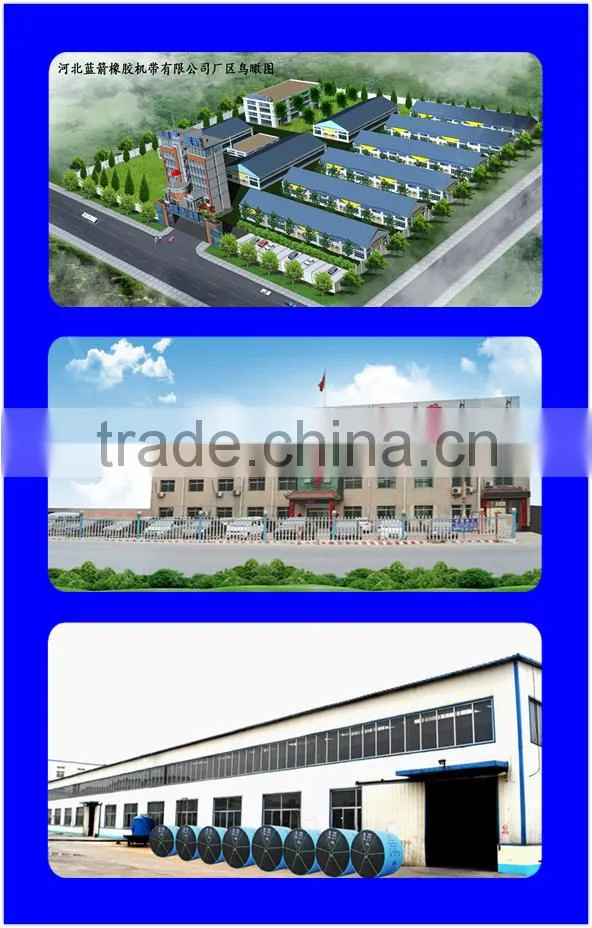

Hebei Lanjian Rubber Belts Co.,Ltd--------Is your best choice
Establish Year:In 1982-More than 23 years experience
Factory square meters:About 800,000 square meters
Number of empolyees:More than 200 workers
With our abundant experience and industrious and hardworking staff members,we can meet various requirements from different types of customers.
Export Market:Main markets are Asia,North America,Europe,Africa and South America,etc.
Certifications:Passed ISO 9001,BV and CE certifications
Standard:GB,ISO,DIN,CEMA,JIS
Our Aim:Quality First,Reputation First,Customer First.
1. How can I get samples?
·We can supply some free samples (total value under 10 US dollars) if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.
·If the total value of samples is more than 10 US dollars, we'd like to ask you to pay for the samples and courier freight, we will send the samples to you after receipt of your payment.
·If you don't have courier account, you can send your courier to collect samples from our company, or send us the samples charge together with the courier cost by T/T.
·The charge both sample and courier cost will be return you once the mass order placed.
2. How much the courier freight will be charged for the samples?
·Courier freight depends on the quantity, weight, and carton size and your area. Our courier agent TNT and DHL will be save you 20% total courier charges because we have a long-term agreement. However, you also can use your courier company to pick up.
3. How can I get your quotation sheet?
· Please send us your inquiry with our products model number by email or fax, we will offer you our price list, offer sheet and order information within one working day.
4. Can we have our logo or company name to be printed on your products or the package?
·Yes, your logo and company name can be printed on our products and packing. We will ask for a minimum order quantity, if you want print your logo on our products and packing for free.
5. What’s your usual payment term for orders?
·T/T 30% as the deposit, and T/T 70% balance paid before loading.
·Or any payment term to discuss.
6. What’s the warranty of your products?
·Usually we guarantee one year after delivery date, but depending on the specified product.
7. How can we get your monthly new products announcement?
·Please join our mailing list.
We sincerely welcome our old and new customers for developing a long-term business relationship and building a better future.
Hope our rubber conveyor belt can help your business.Any questions contact me as soon as possible,I will answer you within 24 hours.
