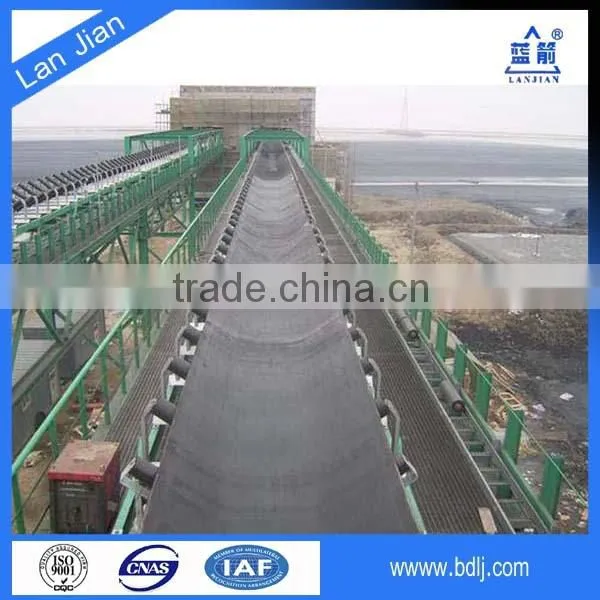

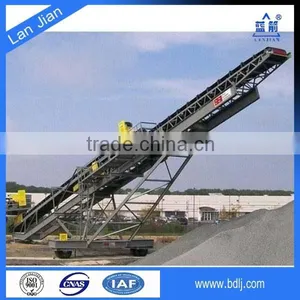

Cotton Covered With Rubber Conveyor Belt Manufacturer for Mining Machine
US$ 5.5 - 25.6
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
LANJIAN
Model Number:
cotton conveyor belt
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai qingdao or China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cotton Covered With Rubber /ep/nylon Conveyor Belt for Mining MachineUS$ 5.5 - 25.6MOQ: 100 Meters -
Cotton Covered With Rubber Woven Fabric Conveyor Belt for Mining MachineUS$ 5.5 - 25.6MOQ: 100 Meters
-
Cotton Covered With Rubber Carcass Conveyor Belt for Mining MachineUS$ 5.5 - 25.6MOQ: 100 Meters
-
Cotton Canvas Textile Conveyor Belt for Mining MachineUS$ 5.5 - 25.6MOQ: 100 Meters
-
Cotton Canvas Hebei Lanjian Rubber OEM ISO Standard Flat Open End Heat Resistant Conveyor Belt for Normal UseUS$ 5.5 - 25.6MOQ: 100 Meters
Place of Origin
Hebei, China
Brand Name
LANJIAN
Model Number
cotton conveyor belt
cotton covered with rubber conveyor belt manufacturer for mining machine
Product Description
Payment: T/T, L/C
Certificate: CE,SGS,ISO,TUV
Warranty: More than 2 years.
OEM/ODM available.
Advantages
1.More than twenty years manufacturing experiences.
2.Professional design formula and experienced engineers, advanced equipment,
3.Stable quality,competitive price of fellow products
4.Powerful, registered capital is more than 16 million
5.Our marketing is spreading all China.
| Technical Specification | |
| Standard | GB/T9770, DIN22131, JISK6369, AS1333, MT668, |
| HG/T3714, HG/T3782, HG/T3647 | |
| Plies of EP canvas | 2 - 10 Plies |
| Belt width | 500 mm ---- 2400 mm |
| Thickness of top cover | 1.5 mm ---- 12 mm |
| Thickness of bottom cover | 1.5 mm ---- 12 mm |
| Certificate | ISO9001:14001 |
| MOQ | 100 M- 200 M |
| Tensile strength | 8 mpa- 25 mpa |
| Belt Width | Cloth Layers | Cover Thickness | |
| Working Surface | Non-Working Surface | ||
| 300 | 3-5 | 4.5 3.0 1.5 | 3.0 1.5 |
| 400 | 3-6 | 4.5 3.0 1.5 | 3.0 1.5 |
| 500 | 3-6 | 4.5 3.0 1.5 | 3.0 1.5 |
| 650 | 3-6 | 4.5 3.0 1.5 | 3.0 1.5 |
| 800 | 3-6 | 6.0 4.5 3.0 1.5 | 3.0 1.5 |
| 1000 | 3-8 | 6.0 4.5 3.0 1.5 | 4.5 3.0 1.5 |
| 1200 | 4-10 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
| 1400 | 4-10 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
| 1600 | 4-10 | 6.0 4.5 3.0 | 4.5 3.0 |
| 1800 | 5-10 | 6.0 4.5 | 4.5 1.5 |
|

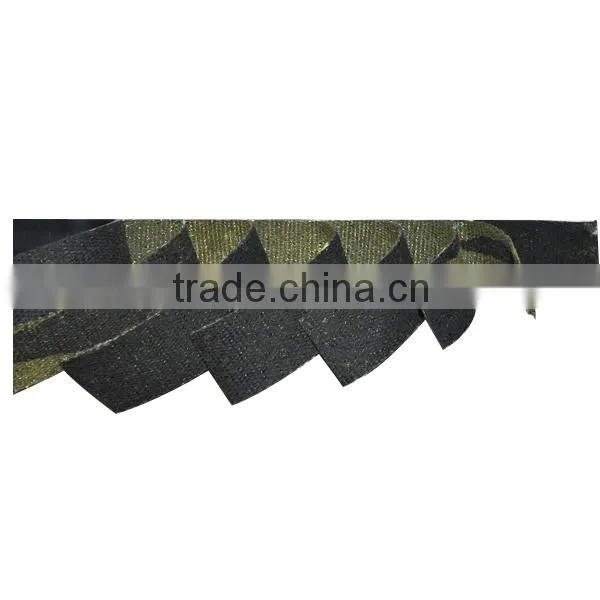

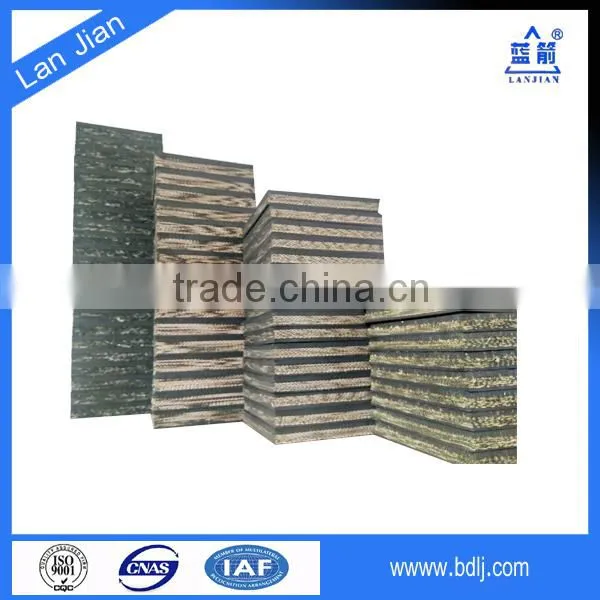

Fabric Type |
Cotton Canvas |
Polyester Cotton Canvas |
Polyester Cotton Canvas (to Soak Rubber) |
|
| Canvas Strength (N/mm) | CC-56 | TCC-65 | TCT-65 | |
| Adhesive Plaster Thickness mm | 1.40 | 1.10 | 1.20 | |
| Cloth layer | 3-10 | 3-8 | 3-8 | |
| Adhensive Strength between Cloths(kn/m) | ≥3.2 | ≥3.2 | ≥3.2 | |
| Entire Thickness Tensile Strength(kn/m) | 150-500 | 180-480 | 210-560 | |
| Cover Thickness mm | Top | 3.0 4.5 6.0 | 3.0 4.5 6.0 | 3.0 4.5 6.0 |
| Bottom | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 | |
| Width mm | 400-1600 | 500-1600 | 500-1600 | |
| Maximium Length of Reel(m/vol.) | 200.00 | 200.00 | 200.00 | |

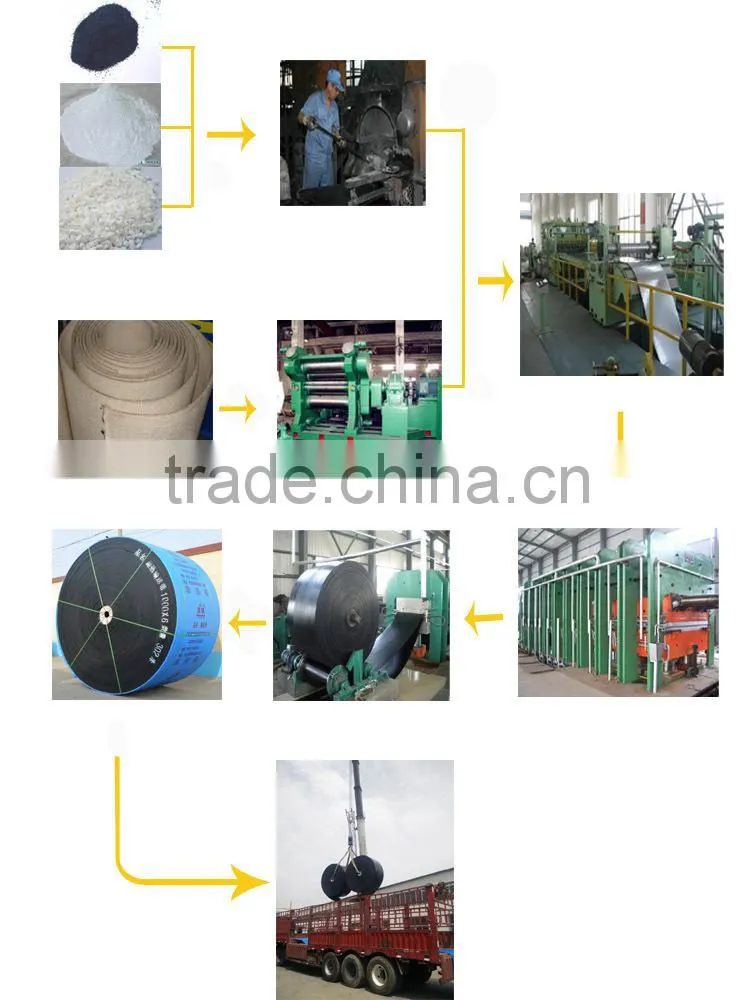

Production Process

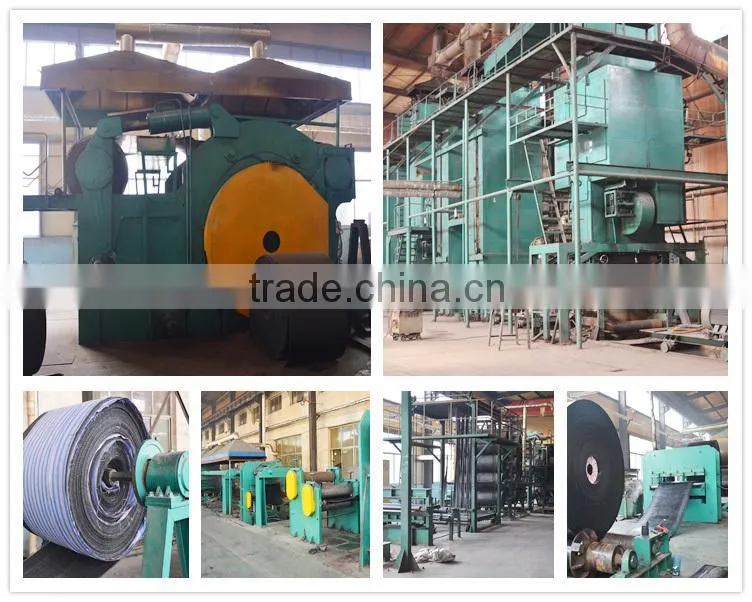

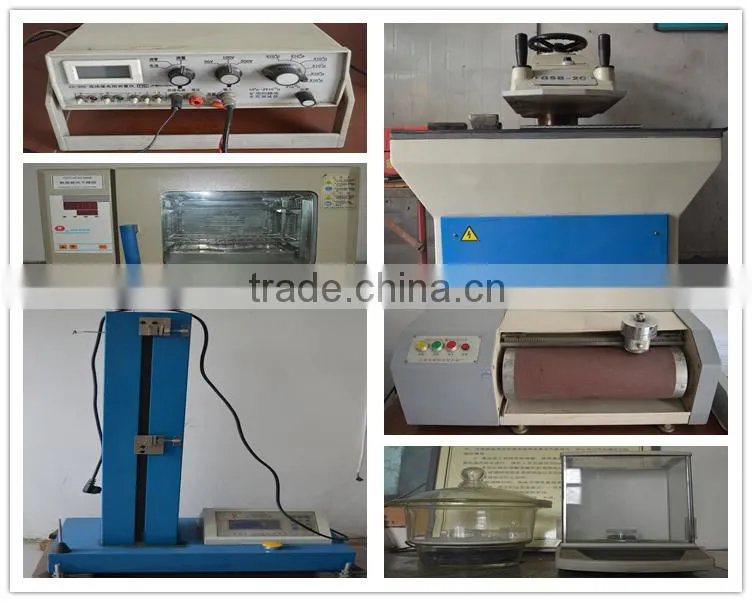

Production Equipment:

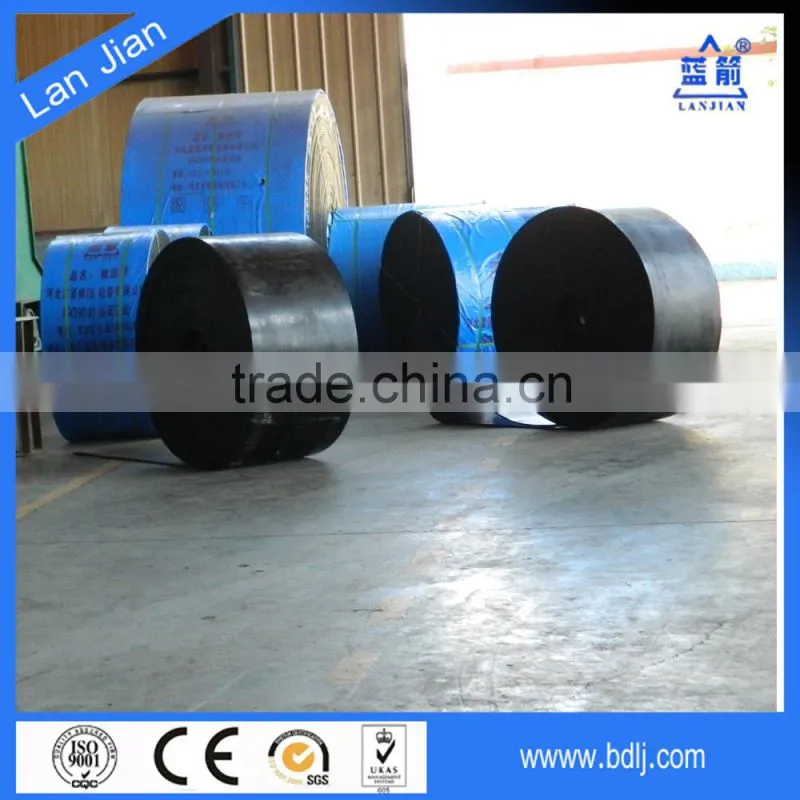

Certificate:

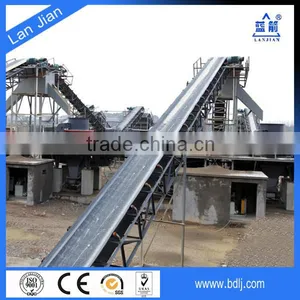

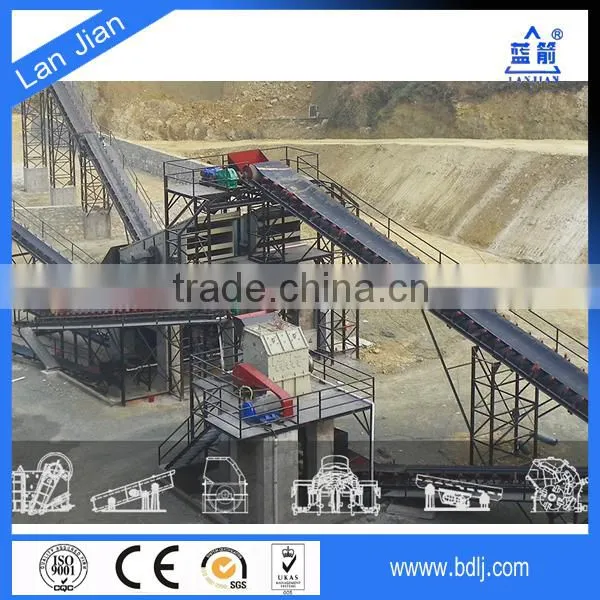

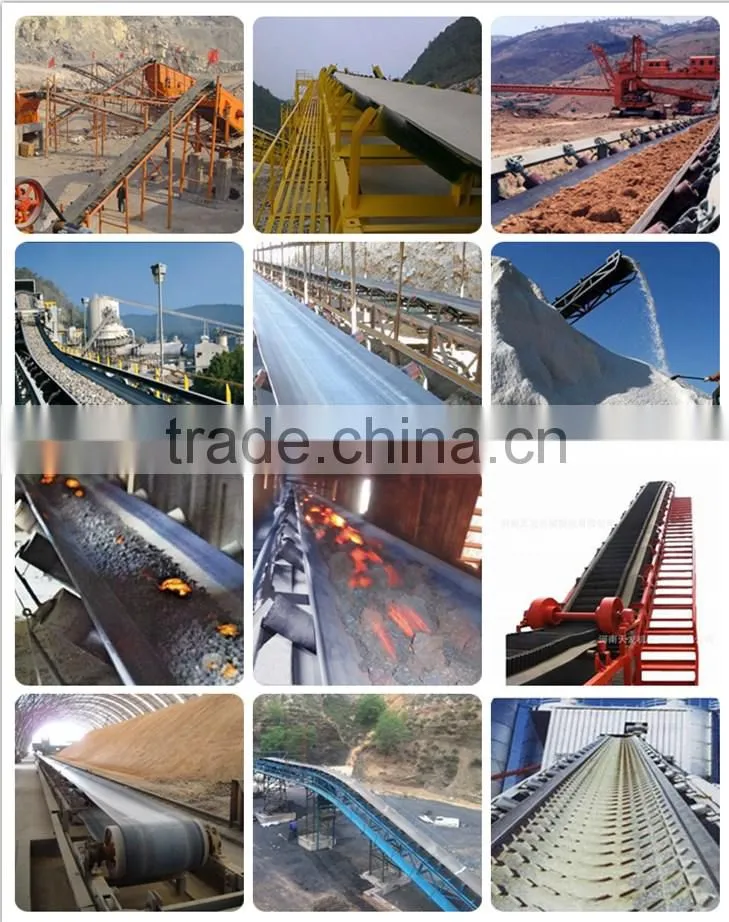

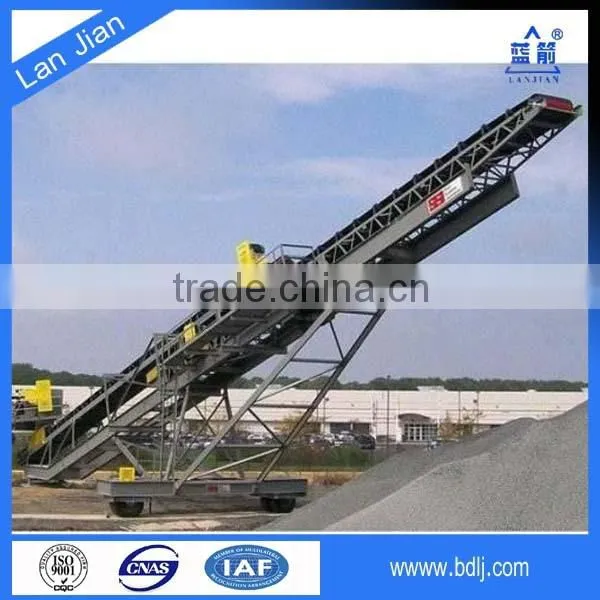

Application:

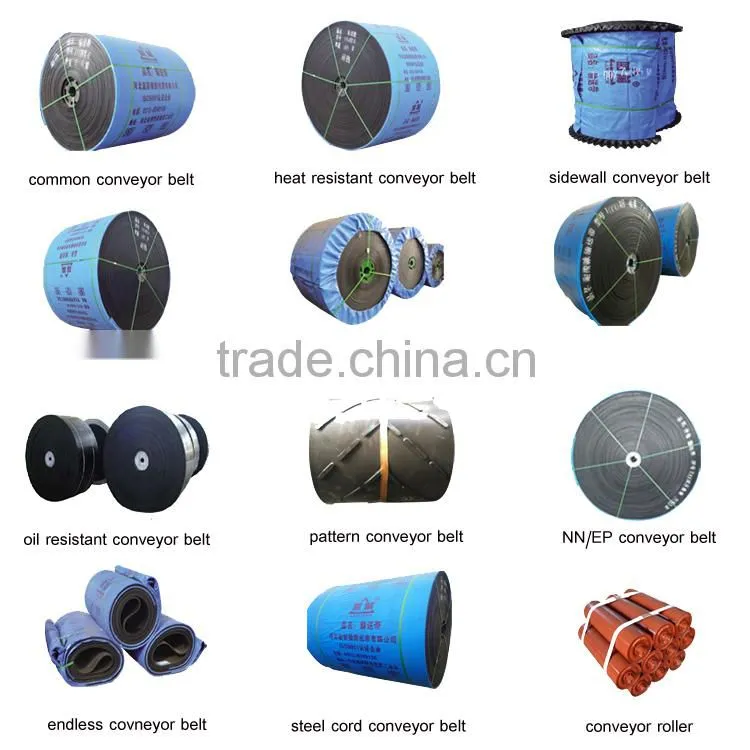

Catalgue

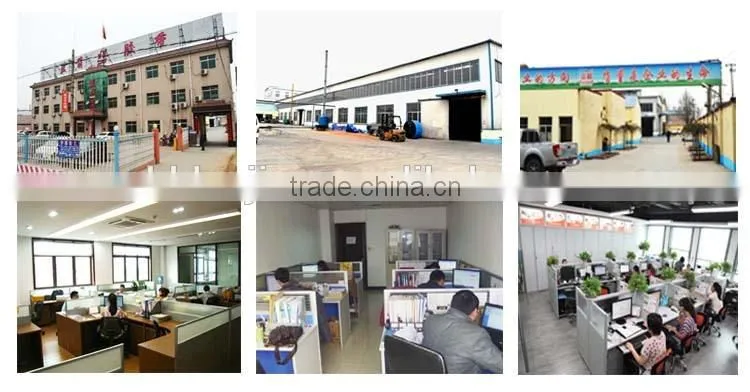

Company Information

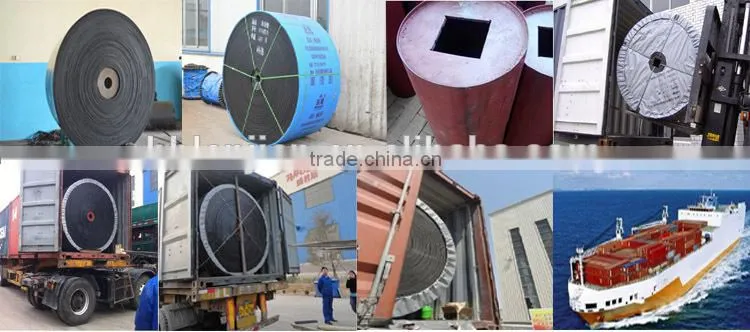

Packaging & Shipping
1. By Sea for batch goods
2. Loading port: Tianjin, Shanghai or according to customer's requirement
3. Delivery Time: 3 -7 days for samples
15-25 days for 1-2 20ft containers
20-30 days for 3-4 20ft containers
Inquery form
| Enquiry Form | |
| Using the inquery form below for our effective communication. And Welcome to inquery any time when you are free. | |
| General Information | |
| Company Name | |
| Country | |
| Project(Optional) | |
| Technical Specification | |
| Standard | |
| Belt length mm | |
| Belt width mm | |
| Thickness of top cover mm | |
| Thickness of bottomp cover mm | |
| Canvas type | NN____________ |
| Number of plies | |
| Optional (For technical advice, verification and support) | |
| Tensile strength (whole belt) N/mm | |
| Conveying material | |
| Type of cover | |
| Tensile strength of cover N/mm | |
| Temperature | General ____ ºC, Min ____ ºC, Max ____ ºC |
Our Services
- Any Inquires will be replied within 24 hours.
- Professional manufacturer,we have professional team to design and manufacture conveyor belt as customer requested.
- All of our products 100% inspection before shipment, we guarantee to use our products safety.
- We own the best after-sale service.If there any problems happen, our team will do our best to solve for customers.
- Faster delivery, 7-10 days after we receive the payment.
- Any problems during use, you can freely contact with us by email or by telephone.
