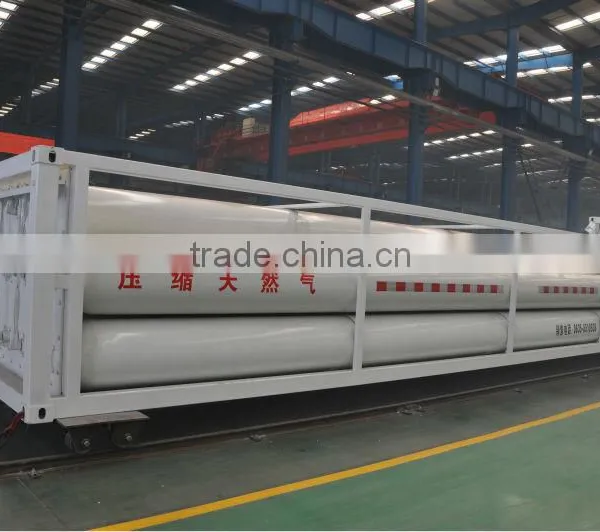

11-tube bundle container | |||||
|
Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to3000 L . ISO 668 Classification , dimensions and ratings of series 1 container | |||||
|
Tube Bundle Container |
Item |
data |
Cylinder |
Item |
data |
Type |
GSJ11-2320-CNG-25 |
Working pressure |
25MPa |
||
Net weight |
29650Kg |
Working temperature |
-50~65°C |
||
Filling weight |
5788Kg |
Main material |
30CrMoLX |
||
Total weight |
35438Kg |
cylinder QTY |
11 |
||
Hazard class |
2.1 |
Total volume |
25.52M3 |
||
UN code |
1049 |
Hydrostatic test pressure |
37.5MPa |
||
Medium |
CNG |
Dimension |
559x14.8x10977 |
||
Leakage test pressure |
25MPa |
Design temperature |
65°C |
||
Hydrostatic test pressure |
37.5MPa |
Medium property |
Explosive |
||
Loading volume |
8038.8Nm3 |
Bursting discs |
Burst pressure |
37.5MPa |
|
Dimension |
12192x2438x1890 |
||||
Transporting |
Highway combined transport |
Bursting disc device discharge aperture |
≥20 |
||
Design service life |
15 year |
||||
rder-right:solid windowtext 1.0pt; mso-border-top-alt:solid windowtext .5pt;mso-border-left-alt:solid windowtext .5pt; mso-border-alt:solid windowtext .5pt;padding:0cm 5.4pt 0cm 5.4pt'>
Design service life
15 year.
.
