Home > Lights & Lighting > Bulb & Lamp > Ultraviolet Lamp > Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing

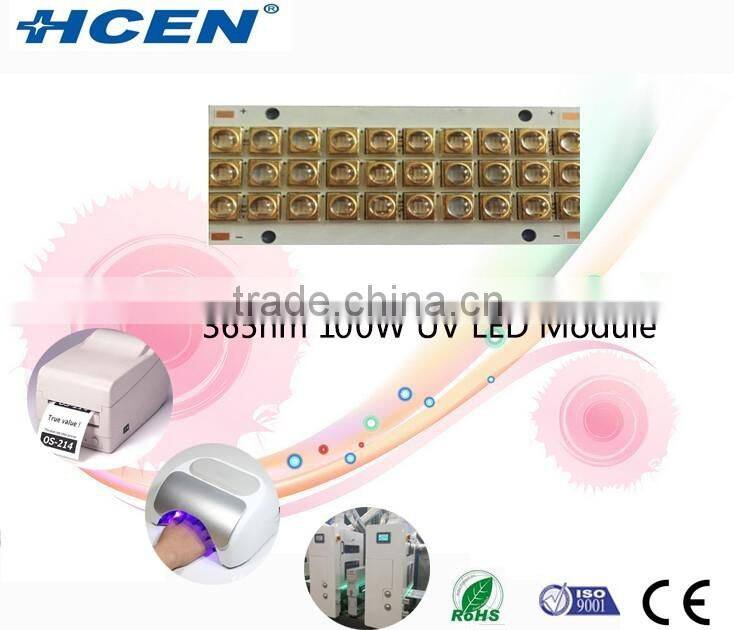

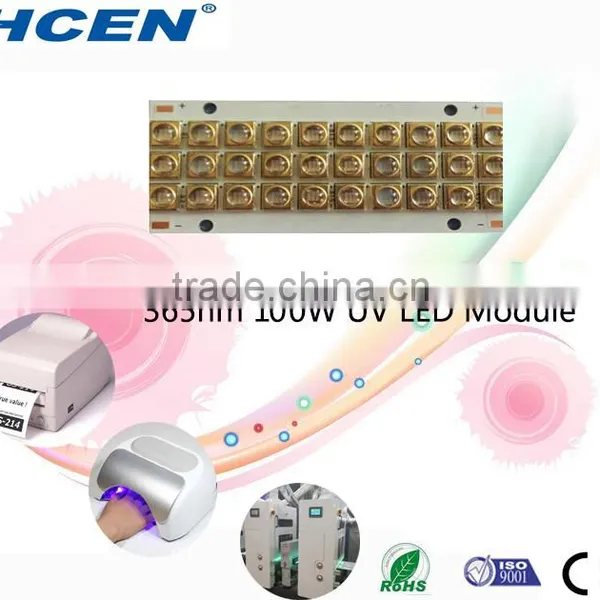

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing

Name: Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing
Brand: HCEN
SKU: 132776151
Availability: InStock

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-1

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-2

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-3

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-4

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-5

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing thumbnail-6

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-1

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-2

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-3

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-4

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-5

Hot Sales High Power 100W 365nm 385nm uv Led Array Module for uv Curing photo-6

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

T003A4V08S11P3

Chip Material:

InGaN

Emitting Color:

Other, Purple

Contact Supplier Request Quote Chat Now

Shenzhen HCEN Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangdong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number T003A4V08S11P3

Chip Material InGaN

Emitting Color Other, Purple

Luminous Intensity 12600

Luminous Flux(lm) 12600

Optical Attenuation(%) 7

Power Other, 100W

Power Dissipation 100

Color Rendering Index(Ra) 90

Color Temperature Ultraviolet

Operating Temperature(℃) -40, +100

Storage Temperature(℃) -40, +85

Place of Origin Guangdong, China

Brand Name HCEN

Certification CE

Product Description

Features:

1.Size:56mm*27.5mm*1.5mm

2.Long operating life

3.High reliability

4.RoHS compliant

Applications:

1.Ink curing

2.Resin curing

3.Fluorescence excitation

4.Lithography

Characteristics of UV LED modules

(1) Absolute Maximum Rating at TA=25°C

Parameter	Symbol	Rating	Units
Input Power	Pi	99	W
DC Forward Current	IF	2100	mA
Junction Temperature	Tj	125	°C
Operating Temperature Range	Topr	-40°C TO +85°C
Storage Temperature Range	Tstg	-40°C TO +100°C

(2) Electrical/Optical Characteristics

Parameter	Symbol	Typ	Units
Peak Wavalength	λp	365	nm
Radiant quantity	ω	12600	mJ/cm2
Radiant quantity	ω	2600	mJ/cm2
Radiant quantity	ω	950	mJ/cm2
Forward Voltage	VF	38-42	V
Spectrum Half Width	Δλ	14	nm

Notes:

1.Peak wavelength measurement tolerance:±3nm

2.Radiant quantity measurement tolerance:±10%

3.500mA is single light emitting diode DC forward current

4.Distance between light exiting surface and UV energy apprantus

5. ω is the total radiant quantity as measured with an UV energy appratus

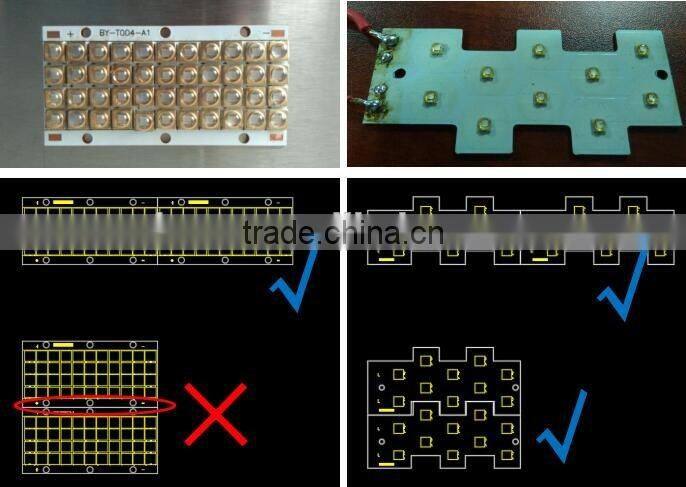

Splicing of the Module

▲This module is adapted to the transverse splicing which forms a line source

▲Connection way of this module is flexible,which can be composed of linear light source or a surface light source

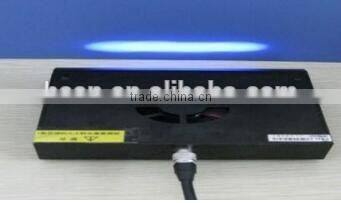

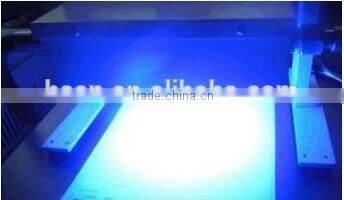

▲ UV LED Linear Light Source ▲UV LED Surface Light Source

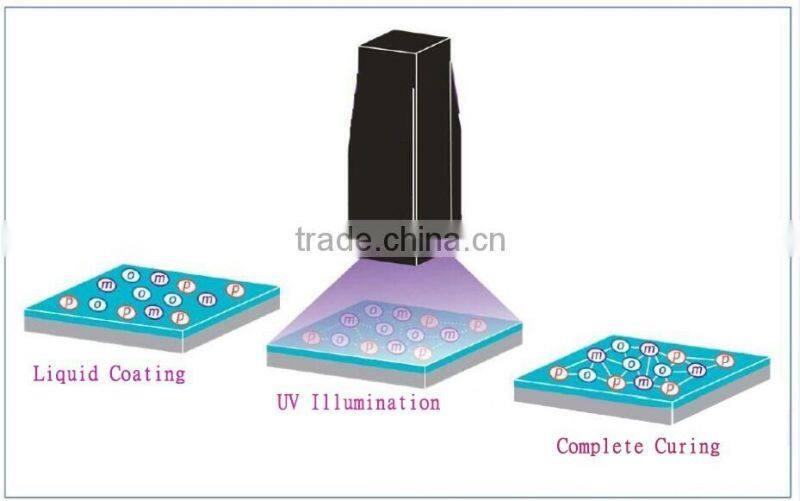

UV Curing Process:

Product Applications

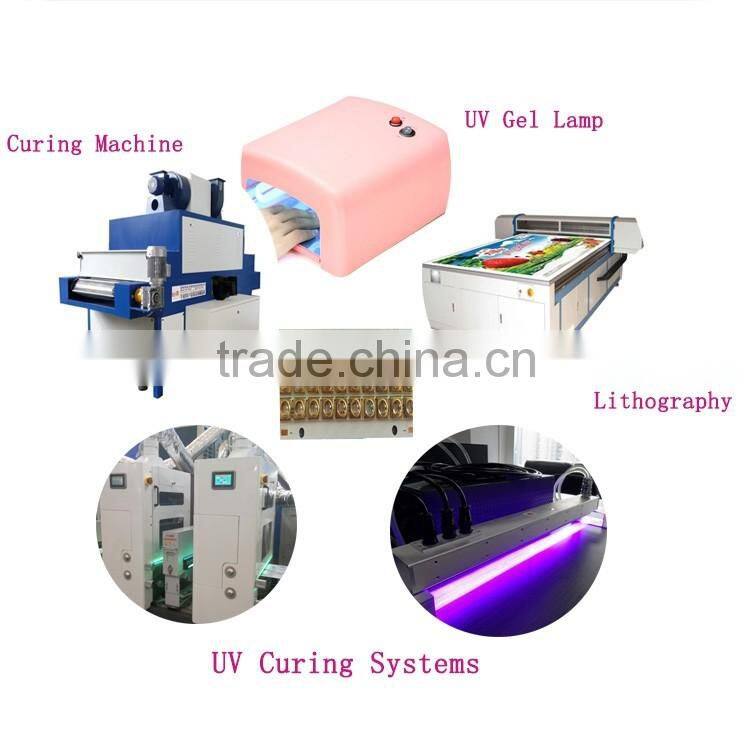

Main Applications of This UV LED Module:It is used for curing system,uv gel lamp,lithography,coating curing.,ect.

Our Advantages

UV LEDS offer many advantages toward UV lamps:

Certifications

Packing & Delivery

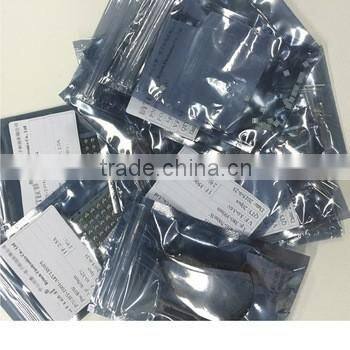

Packing Informations:IN anti-static package then in Carton

1.Payment term: T/T, L/C ,Western Union,Paypal .,ect.
2.Delivery:Carrier is available by express,or sea shippiung or ordinary air cargo.

Our Company

Shenzhen HCEN Technology CO.,LTD located in the east bank of the Pearl River Delta and near Hong Kong.HCEN brand is registered in October 17, 2014, with registered capital is RMB200 million RMB.

Headquartered in Shenzhen, HCEN also have branch in Shanghai, Beijing and Hong Kong. We have marketing and technical supporting teams in Munich Germany, Bangkok Thailand and Malaysia .

As a promoter of UV LED technology, HCEN own professional UV LED R&D team ,soulution engineers to give full support of our customer. HCEN invest about 10%-20% of the sales volume to develop new products.

Our Service

UV LED Solution Team

HCEN is a professional UV LED solution provider,supported by 22 application engineers and R&D experts backing from Japan and Germany.They are experienced in UV LED encapsulation,optical design and led cooling solution. Tell us your application and then we provide you the tailored solutions

Sample Policy:

We support free samples for testing! You just need to pay the shipping cost.

Guarantees/Warranties/Terms and Conditions:

We guarantee our products to be free from manufacturer defects.Warranty and free maintance time about 12 month-24 month.

FAQ

Q1:Are you a Factory or Trading Company?

Answer: Factory.

Q2:How can I visit your factory?

Answer:Since you come to Shenzhen,contact us before you come,we will pick you up directly to our company.

Q3:When can I get the price?

Answer:Within 24 hours we get your inquiry and confirm the needs and solution.

Q4:How can I get a sample to check your quality?

Answer: After price and payment confirmation, we are honored to send you.

Q5:Can you provide a solution for UV LED substitute for UV Lamp ?

Answer: Pls provide UV Lamp data heet,wavelength,required optial power or radiant intensity . radiant distance and curing area,more info. will help us to provide a exact solution for your application.

Q6:What’s the universal Lead-Time for order delivery?

Answer:1)7-15 Working days for led diodes undering quantity of 10k.

2)10-30 Working days for curing system and UV LED module

3)Samples will be delivered as soon as payment confirmed .

Q7:What’s the payment terms?

Answer:We can accept T/T,and Paypal.
