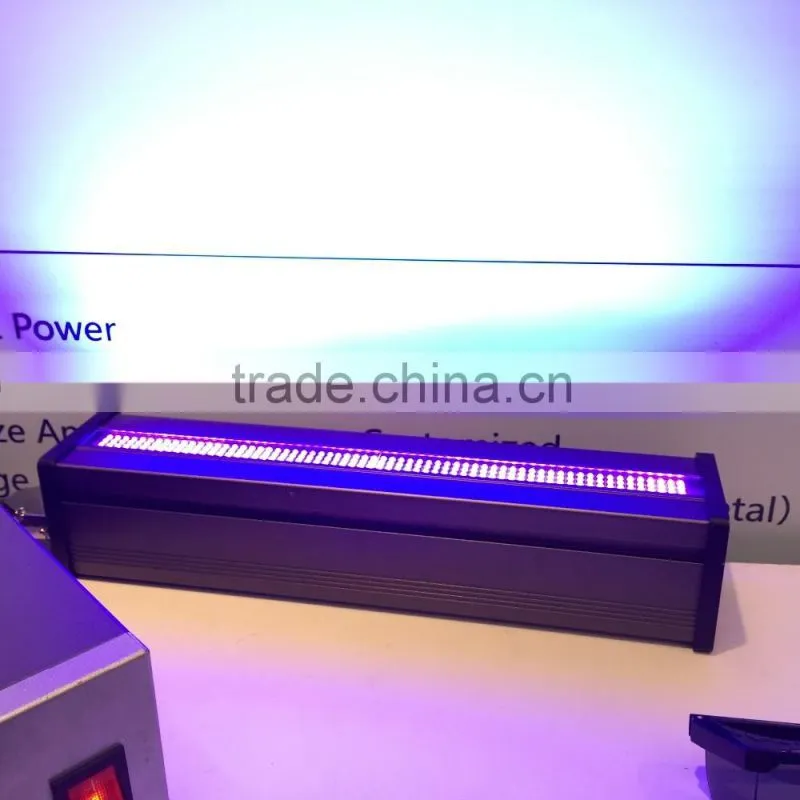

Factory Sale 2 year Warranty High Power 395nm 365nm Led UV Curing System
Features of HCEN UV LED CURING SYSTEM
UV LED low energy consumptions
Without preheat and can get instant on
Curing Area Optional :Cutomized or 80x20mm, 160x20mm;240x20mm;320mmx20;400x20mm
Environmental,without toxic mercury ozone produced ,is a much more safer and green choice.
Wavelength 365nm ,395nm ,405nm is available
Curing Size Optional or customized: 80X20mm ; 160X20mm ; 320X20mm
Controller have four different mode :Manual,Auto ,can control part or full of leds to be on/off
Lighting time can be adjusted from 0.1second to 6000s
Radiant intensity/efficiency can be adjusted from 0% to 100%
Four channels controlled independently or synchronously.
8 Steps for 8 product for same production line like glue curing,ink curing.
HCEN Spot Curing System Consist of Two Parst :
UV LED Controller
UV LED Lighting Head
Prameters Of UV Controller
| Model | HC-FLC-395-320-CTR |
| Modules | 320mmx20mm consist of 4 module, controler can control each module or each line of led on module or simutanously control |
| Control Mode | Manual, Auto |
| Control Method | PLC Control or Foot Step Control |
| Output Status | RS232 (Standard MODBUS Agreement) |
| Display | Touch Screen |
| Alarm Function | Lighting Head Short-Circuiting alarm ,circuit broke alarm,high temperature Alarm and Connection Malfunction |
| Driver | 700mA Max Constant Current |
| Rated Voltage | DC36V |
| Rated Power | 1008W |
| Operate Temperature | 0℃-45 ℃ |
| Storage Temperature | 0℃-60 ℃ |
Advantage Of Our Curing System
- Easy To Use - Touch screen easy to imput and built-in program is clear
- Four mode to control
- 8 Steps of Curing Process
- Stable Lighting
- Four channel controlled indepently or synchronously
UV Curing system with Light head, Water Cooling System
UV LED Solution Team
HCEN is a professional UV LED solution provider,supported by 22 application engineers and R&D experts backing from Japan and Germany.They are experienced in UV LED encapsulation,optical design and led cooling solution. Tell us your application and then we provide you the tailored solutions.
Sample Policy:
We support free samples for testing! You just need to pay the shipping cost.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects.Warranty and free maintance time about 12 month-24 month.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Any questions just feel free to contact
Feel free to contact:
HCEN Group
Operation Center
Add:Room 17E-17F,17Fl,Tower B,NEO Bldg,Chegongmiao,Futian District,Shenzhen,518000, China.
Tel: +86-0755-83448066 Fax:+86-0755-83441266
R&D Centre
Add: Room 1704B-1705, 17/Fl,A Tower Times Bldg, Tian'an Cyber Park, Futian District, Shenzhen, 518000,China.
Beijing Office
Add: Room 1701/1709. 17/Fl,Wantong Centre,6th Waidajie,Chaoyang District,Beijing,China.
Tel:+86- 010-59070860 Fax:+86-010-59070859
Hongkong Office
Add: RM2001-2005 Harbour CTR 25,Habour road Wan Chai,Hongkong
Thailand Office
Add: 491/13Silomplaza Fl2nd Silom Road, Silom Bangkok 10500
Shenzhen HCEN Technology CO.,LTD located in the east bank of the Pearl River Delta and near Hong Kong.
Headquartered in Shenzhen, HCEN also have branch in Shanghai, Beijing and Hong Kong. We have marketing and technical supporting teams in Munich Germany, Bangkok Thailand and Malaysia .
HCEN aimed to be a global new technology producer and solution provider. We dedicated in UV (Ultraviolet) LED diode ,curing system and diverse application of UV LED .
As a promoter of UV LED technology, HCEN own professional UV LED R&D team ,souluiton engineers to give full support of our customer. HCEN invest about 10%-20% of the sales volume to develop new products.
Q1:Are you a Factory or Trading Company?
Answer: Factory.
Q2:How can I visit your factory?
Answer: Since you come to Shenzhen,contact us before you come,we will pick you up directly to our company.
Q3:When can I get the price?
Answer: Within 24 hours we get your inquiry and confirm the needs and solution.
Q4:How can I get a sample to check your quality?
Answer: After price and payment confirmation, we are honored to send you.
Q5:Can you provide a solution for UV LED substitute for UV Lamp ?
Answer: To provide solution for your application pleaase provide UV Lamp data sheet, wavelength, required optical power or radiant intensity . radiant distance and curing area.
Q6:What’s the universal Lead-Time for order delivery?
Answer:1)7-15 Working days for led diodes under quantity of 10k.
2)10-30 Working days for curing system and UV LED module
3)Samples will be delivered as soon as payment confirmed .
Q7:What’s the payment terms?
Answer: We can accept T/T and Paypal.
