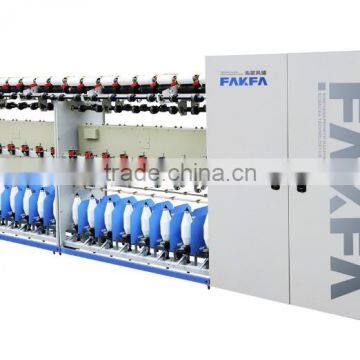

Fancy Tfo Yarn Twisting Machine for Chemical Fiber

Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-1
Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-2
Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-3
Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-4
Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-5
Fancy Tfo Yarn Twisting Machine for Chemical Fiber photo-6
US$ 20,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Chemical Fiber
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ning Bo OR Shang Hai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Chemical Fiber
Place of Origin Zhejiang, China
Brand Name XIANQU
Model Number XQ328F
Voltage 380V
Power(W) 13kw
Dimension(L*W*H) 20300*770*1800mm
Certification ISO9001:2008
Warranty One Year
After-sales Service Provided Overseas third-party support available

Features:

1.A reasonable stored height, more fitted for Chinese female workers.

2.An improvement based on equipment G,E, economical and more practical yarn quality.

3.Absorbed advanced Italian, German and Japanese technologies, so the yarn route temperature

  is more reliable along with a still better yarn quality.

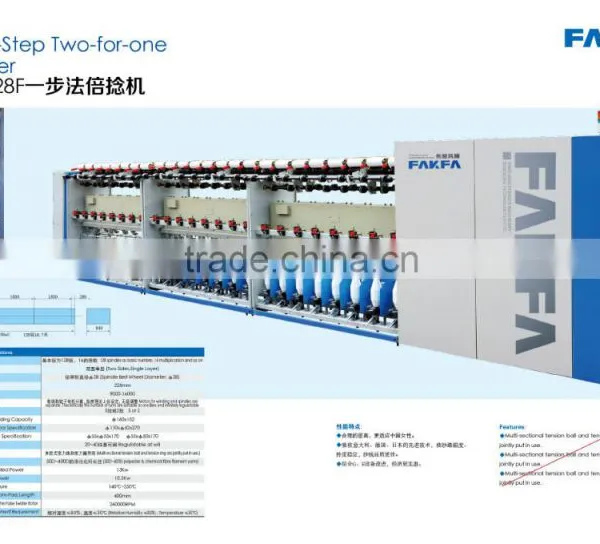

Technical Specification





Number of     Spindles                                         128 Spindles As Basic Number(16 Multiplication and  so   on)                                                Type                     Two Side,Single Layer
Spindle Distance  225mm Spindle  Spindle Bell Wheel Diameter:Φ28
Spindle Speed  9000-16000 rpm Faise Twist Range  Motors for winding and spindles are separate. Theoretically the   number of thrns are settable as one likes and intinitely regulatable
Twis Direction  S or Z Tension Control  Multi-sectional tension ball and tensiong ring are jointly put in use.
Maximum Winding Capacity  Φ160*152 Applicability  50D-400D Polyester & Chemical Fiber Filament Yarns
Unwinding Spool Specification  Φ110*Φ42*270-290 Max.Speed of the false twister rotor   260000RPM
Electro-Thermal Power  10.5kw Thermal Box Yarn-Pass Length   400mm

Overall size

 20300*770*1800MM Winding Angle   Regulatable at will



 Fancy tfo yarn Twisting Machine for chemical fiber

Fancy tfo yarn Twisting Machine for chemical fiber



 Fancy tfo yarn Twisting Machine for chemical fiber
