Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Car Bench > Auto Diagnostic Machine C-900

Auto Diagnostic Machine C-900

Name: Auto Diagnostic Machine C-900
Brand: Wande
SKU: 132761653

Auto Diagnostic Machine C-900 thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Bench Height:

320-1050mm

Max. Hydraulic Pressure:

69Mpa

Max. Lifting Capacity:

3000kg

Contact Supplier Request Quote Chat Now

Yantai Primacy Industry Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Bench Height 320-1050mm

Max. Hydraulic Pressure 69Mpa

Max. Lifting Capacity 3000kg

Max. Tension (N) 95

Worktable Length 5900mm

Worktable Width 2100mm

Place of Origin Shandong, China

Brand Name Wande

Model Number C-900

Warranty 1 Years

Specifications

Platform Length 5300mm
Platform width 2100mm
Platform height 520mm

Product Description

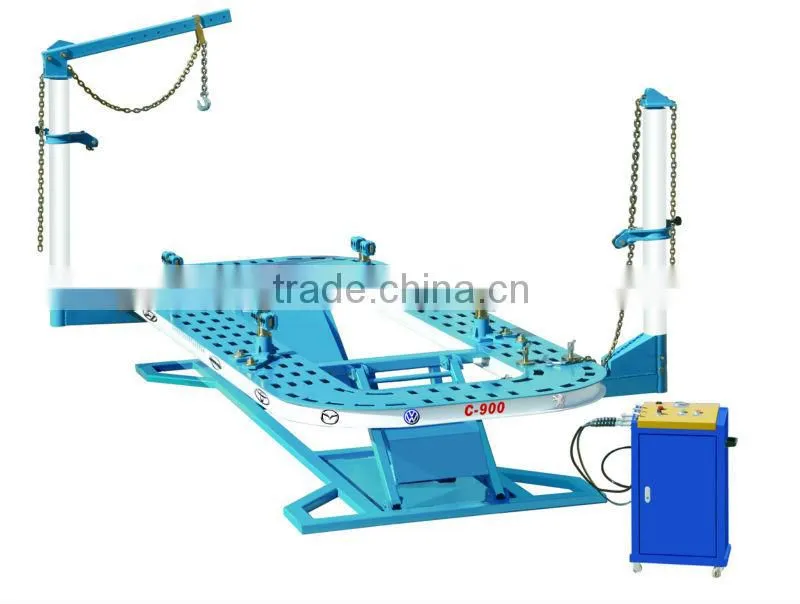

Function (one side lifting bench )

Whole machine hydraulic power source is electric pump station with three way output, platform lifting, two pulling tower stretch, operated separately by one remote control, Bluetooth wireless concentrate control, a key in the hand, operate freely

Double cylinder vertically lifting working platform, platform could change height between 320-1050mm, lifting frame with hydraulic and mechanical self-lock, double insurance. Inclined lifting platform, any accident vehicle could move on or off platform convenient.

Two pulling tower, move around platform 360°, flexible and pulling force strong.

Brand hydraulic system, power strong, failure rate low.

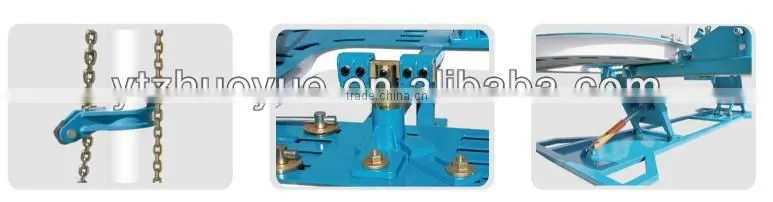

Adopt wide jaw tiger type universal clamp, clamping and fixed vehicle skirt and beam vehicle fast.

High strength pulling tool could satisfied any deformation straightening, operation flexible, convenient, and reliable.

Technical Specification

Platform Length 5900mm

Platform width 2100mm

Platform height 320-1050mm

Pulling tower max tension 95KN

Dynamic air supply pressure 0.8Mpa

Pulling tower working range 360°

Max. load 3000Kg
