Specifications
A lift/frame machineScissor vertical lifting
Electric controlled system
Patented clamp design
European technology
Car Chassis Straightening Bench CRE-900B (for export)
CRE-900B Specifications | |
Bench Length |
3230mm |
Bench Width |
880mm |
Bench Height |
140-1400mm |
Weight |
1300kgs |
Max Hydraulic Pressure |
69MPa |
Air Supply Required |
100PSI |
Pulling Tower Height |
1800mm |
Oil Cylinder Pushing Force |
10t |
Bench Holding Capacity |
2500kgs |
Power |
380V 50/60Hz |
Car collision repair system is also named car bench, chassis straightener, auto body repair equipment, collision repair equipment, frame rack, frame machine,chassis straightening system, frame straightener, etc.
Car Chassis Straightening Bench CRE-900B Functions
Collision repair systems CRE-900B equipped with scissor lift are suitable both for straightening and most other general body repair work.
Frame-style bench with European technology adopts cold-drawing high alloy rectangular tube, making it with high flatness and strong strength.
Welding robot equipment is used to ensure quality.
The working height of Scissor lifting bench can be adjusted between 140mm and 1400 mm as needed. Bench can be down to 140mm from the floor, which makes car can be driven on it directly without ramps.
The movable hydraulic pulling tower can turn 360 degrees along the bench rail, making work on all sides of the vehicle fast and efficient.
Heavy-duty pulling tower with high strength are always ready multi direction straightening for demanding structures.
The Air-Driven Hydraulic Pump imported from USA has the advantages of reliable performance and long service life.
Equipped with electrical pump, the lifting cylinders are operated electrically by hand-held remote control,which speeds up the collision repair process and makes it easy and comfortable.
Self-lock structure, ensure lifting safety.

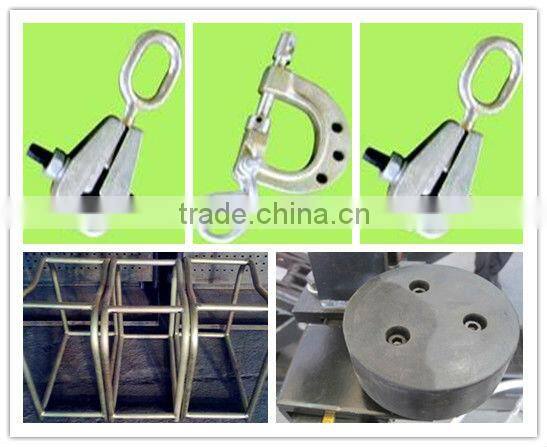

The patented Jigs and auxiliary clamps with different functions can cover various repair situations.
About Us
We,Yantai Primacy Industry Co.,Ltd. design, manufacture and market car collision repair system for repairing collision-damaged vehicles. We can also manufacture according to customers' specific need. All the size, details and accessories can be made as you want. Customers from home and abroad are welcome to visit our company and use our products
