Specifications
auto body repair tools CRE-VI (Mechanical Measurement)Bench Length 5920mm
Bench Width 2000mm
Bench Height 300-1020mm
auto body repair tools CRE-VI Function:
1. High-precision working bench,one pair of cutting types of lifts rising vertically provides you a multi-use working bench for repairing.
2. The working-bench goes up and down vertically,the height is adjustable arbitrarily according to the need for repairing among 300-1020mm.it is more convenient for the vehicle to put on the shelf.
3. Movable hydraulic pressure drawing-tower,can work along working bench360°,has powerful pulling force .The unique way of the draw tower fixture is convenient and reliable.
4. Load adjustable common jigs,three-dimension adjustable,can meet the demand of the fixture of all cars that out of shape.there doesnt need the jigs for the vehicle putting on and down the shelf.
5. By air operated machinery self-lock device since,can realize remote-controlled operation,make the rising or falling of the working bench safe and reliable,and can lengthen the service life of the cylinder of lifting.

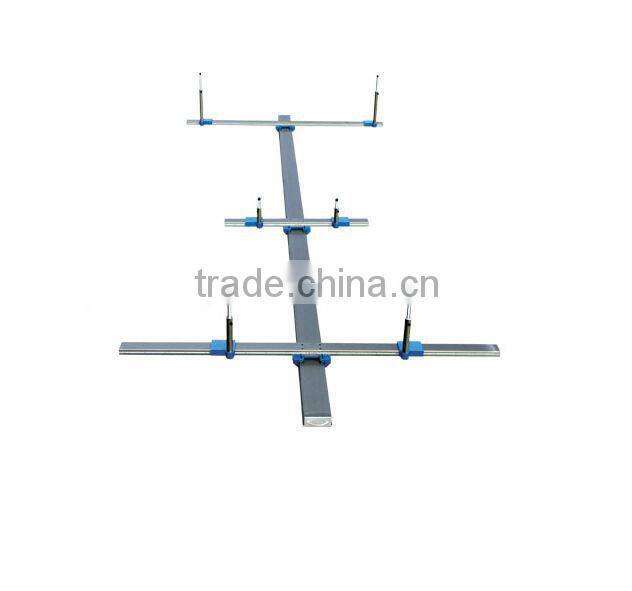

6 Adopting the movable three-dimensional measuring system,the system has a high precision and is easy to handle.
7. Movable secondary-lifting ensures the getting on the vehicle and repairing more convenient and swifter.
8. Imported hydraulic system,with its reliable performance,long performance life.
9. Allocating top and bottom draw device,in order to realize the omni-direction of drawing and operating for the vehicle.
CRE-VI Specifications
Bench Length |
5920mm |
Bench Width |
2000mm |
Bench Height |
300-1020mm |
Weight |
3500kg |
Max Hydraulic Pressure |
69MPa |
Max Pulling Force of Pulling Tower |
98000N |
Radius of Pulling |
360° |
Air Supply Required |
100PSI |
Max Lifting Capacity |
4500kg |
