Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Car Bench > Yantai Primacy Tilt Bed Frame Machine CRE-B

Yantai Primacy Tilt Bed Frame Machine CRE-B

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Weight:

2200kg

Bench Height:

530mm

Max. Hydraulic Pressure:

69MPa

Contact Supplier Request Quote Chat Now

Yantai Primacy Industry Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Weight 2200kg

Bench Height 530mm

Max. Hydraulic Pressure 69MPa

Max. Lifting Capacity 3.5t

Max. Tension (N) 10t

Worktable Length 5180mm

Worktable Width 2000mm

Place of Origin Shandong, China

Brand Name CRE

Model Number CRE-B

Specifications

1.With tilt bed frame machine
2.Tower Pulling range 360 degrees
3.Self-lock structure

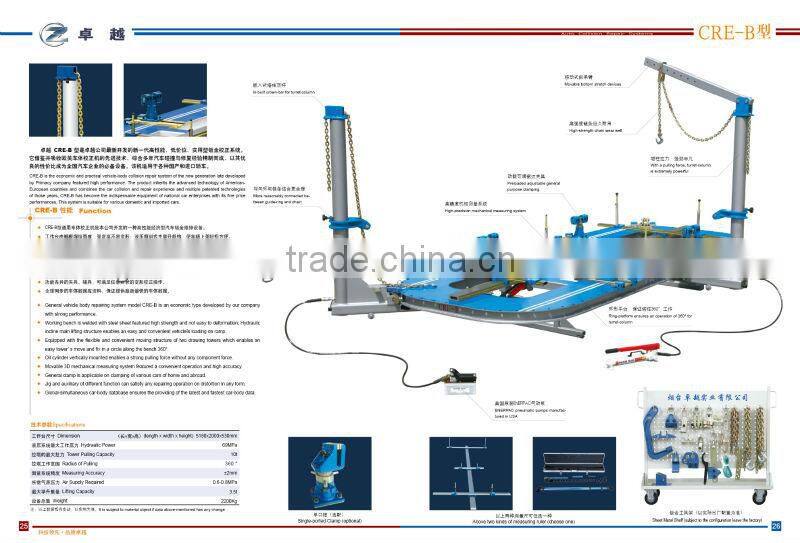

Yantai Primacy tilt bed frame machine CRE-B Specification

CRE-B Specifications
Bench Length	5180mm
Bench Width	2000mm
Bench Height	530mm
Weight	2200kgs
Max Hydraulic Pressure	69MPa
Max Pulling Force of Pulling Tower	10t
Radius of Pulling	360°
Pressure at Air Source	0.6-0.8MPa
Max Lifting Capacity	3.5t
Measuring Accuracy	±2mm

Yantai Primacy tilt bed frame machine CRE-B Features

Welded with steel plate the bench can hardly deform. Cars can be hydraulically pulled onto the bench by the main one side incline lifting system.
The two movable hydraulic pulling towers can move 360 degrees around the bench rail, making work on all sides of the vehicle fast and efficient.
The oil cylinder operating vertically has a strong pulling force.
The movable three-dimensional mechanical measuring system, with high accuracy, can be easily operated.
General-purpose clamps are applicable to clamping of various cars both at home and abroad.
Jigs and auxiliary clamps with different functions can cover various repair situations.
A data manual for latest car models of various series is provided.

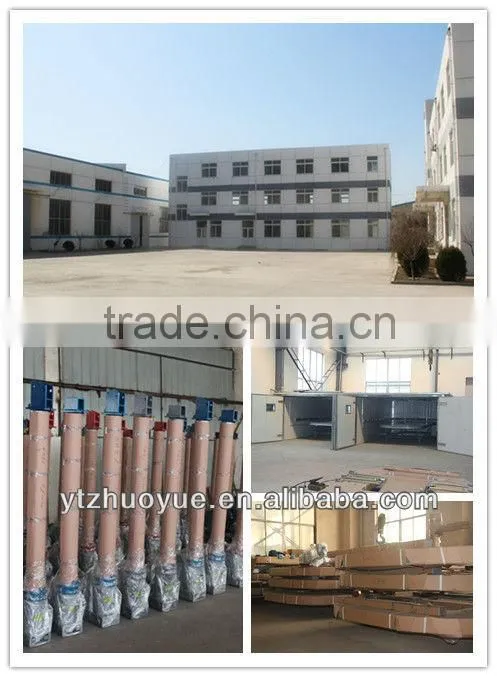

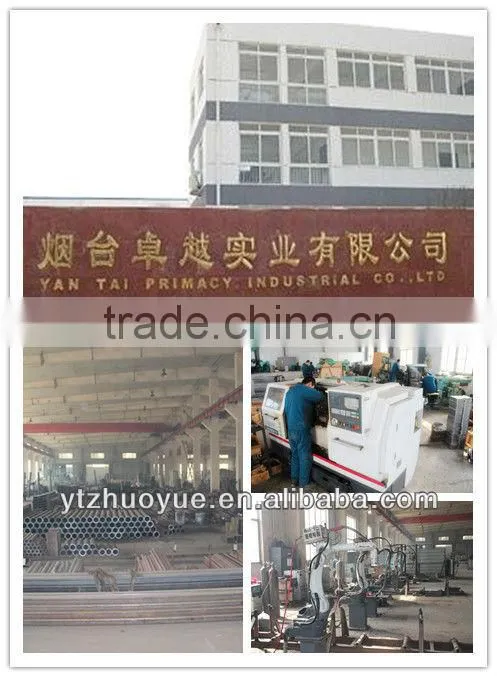

About Us

We,Yantai Primacy Industry Co.,Ltd. design, manufacture and market car collision repair system for repairing collision-damaged vehicles. We can also manufacture according to customers' specific need. All the size, details and accessories can be made as you want. Customers from home and abroad are welcome to visit our company and use our products.
