Alibaba gold suppier automatic pasta pellet packing machine
SPECIFICATIONS
| Item | Content |
| Model | VG52 |
| Filling amount (L) | ≤2.4 |
| Accuracy | ≤±1.5% |
| Die way | Double pull |
| Max packing speed | 150 bag/min |
| Film thickness | 0.04--0.09mm |
| Type of bag making | Pillow Bag, gusseted bag |
| Bag size | (L)50-300(w)90-250mm |
| Voltage | 5.6kw, 380v, 50/60HZ |
| Air consumption | 0.8Mps 0.3m³/min |
| Net weight | 800KG |
| Dimension | (L)1900X(W)1180X(H)1550mm |
| Package material | BOPP/CPP/VMCPP,BOPP/PE,PET/VMPET, PE,PET/PE,etc |
Please watch video about principle of operation as following
link https://youtu.be/LbMg4R-Ow8k

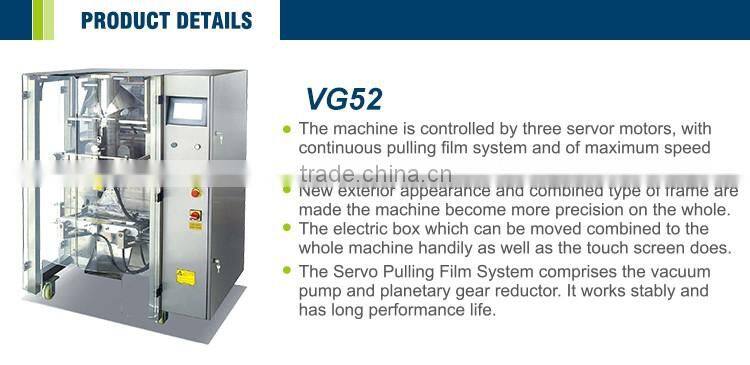

Main Features:
1: The machine is controlled by three servor motors,with continuous pulling filmsystem and of maximum speed which can catch 120 bags/min.
2: New exterior appearance and combined type of frame are made the machine become more precision on the whole.
3: The electric box which can be moved combined to the whole machine handily as well as the touch screen does.
4: The Servo Pulling Film System comprises the vacuum pump and planetary gear reductor. It works stably and had long performance life.
5: Over 90% spare parts are stainless material. Also eletrical apparatus elements are world famous brands.
6: Automatic correction system makes tracking and positioning more accurately.
7: It is easy to adjust the novel vertical sealing structure and developed horizontal sealing structure because of adopting gravity balance system.
8:The film pulling frame is simple design, easy to adjust the eye mark and install the film.
9:It is convenient for user operate the machine by the separate film installation system of the film pulling frame.
Optional Device:
Filling nitrogen device,punching jaws, chain bag making device, gusseted device
Air inflation device, euroslot device, strip bag device, gusset device,etc.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/LbMg4R-Ow8k
Q2:What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel.
The machine body can be 304#stainless steel or carbon steel.
Q3:Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range.
It should be ordered an extra former if you want to make the other bag width.
Q4:Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5:When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days,
but it depends on the quantity of the products.
Q6:How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7:What can you provide after service?
A: We can provide machine testing video and pictures before delivery,
English manual, some free spare parts, installation in clients' factory and technical training.
