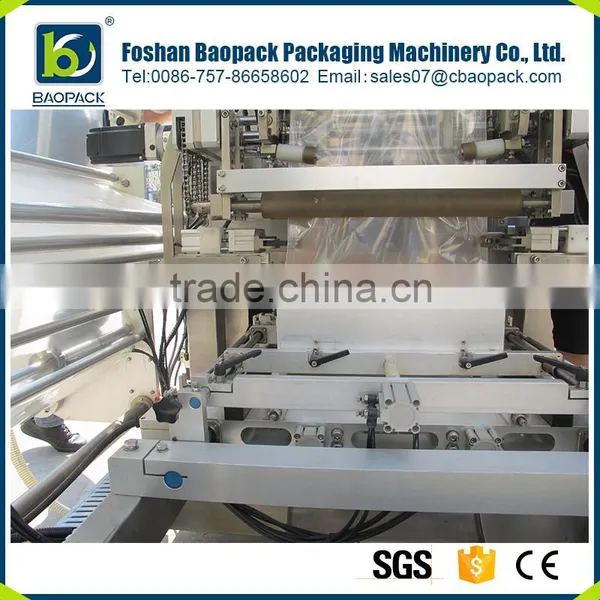

Hot selling automatic tomato ketchup oil liquid pouch packing machine
- 60 Set / Sets per Month
- Guangzhou Foshan Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Condition: | New | Function: | Filling, Labeling, Sealing | Application: | Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical |
Packaging Type: | Bags, Film, Pouch, Stand-up Pouch | Packaging Material: | Plastic | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Voltage: | 220V,50/60HZ | Power: | 6.7KW |
Place of Origin: | Guangdong, China | Brand Name: | BAOPACK | Model Number: | CB-VZ82 |
Dimension(L*W*H): | (L)1920*(W)1860*(H)2500mm | Certification: | CE/ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot selling automatic tomato ketchup oil liquid pouch packing machine
SPECIFICATIONS
Item | Content |
Model | CB-VZ82 |
Film with range | 360mm-820mm |
Accuracy | ≤±1.5% |
Die way | Cots traction |
Max packing speed | 30 bag/min |
Film thickness | 0.04--0.09mm |
Type of bag making | 4 Sides sealing bag |
Bag size | (L)180-520mm (W)180-410mm |
Voltage | 6.7kw, 220v, 50/60HZ |
Air consumption | 0.8Mps 0.5m³/min |
Net weight | 850KG |
Dimension | (L)1920X(W)1860X(H)2500mm |
Package material | BOPP/CPP,BOPP/VMCPP,BOPP/PE, PET/VMPET/PE,PET/PE,etc |
Please watch video about principle of operation as following
link https://youtu.be/_e8gaibXrE4

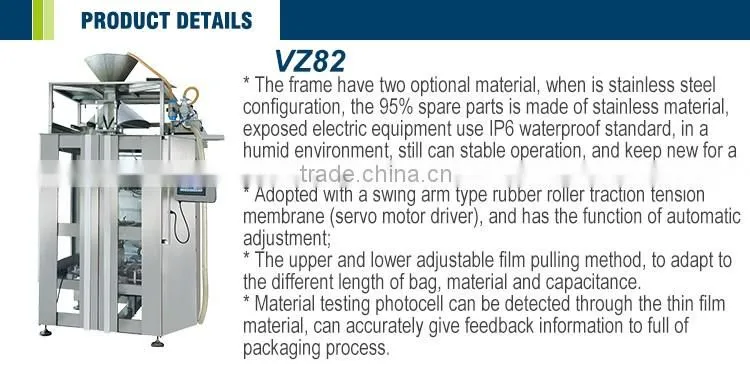

Main Features:
1: 95% spare parts are made of stainless material, exposed electric equipment use IP65 waterproof standard, in a humid environment, still can stable operation, and keep new for a long time.

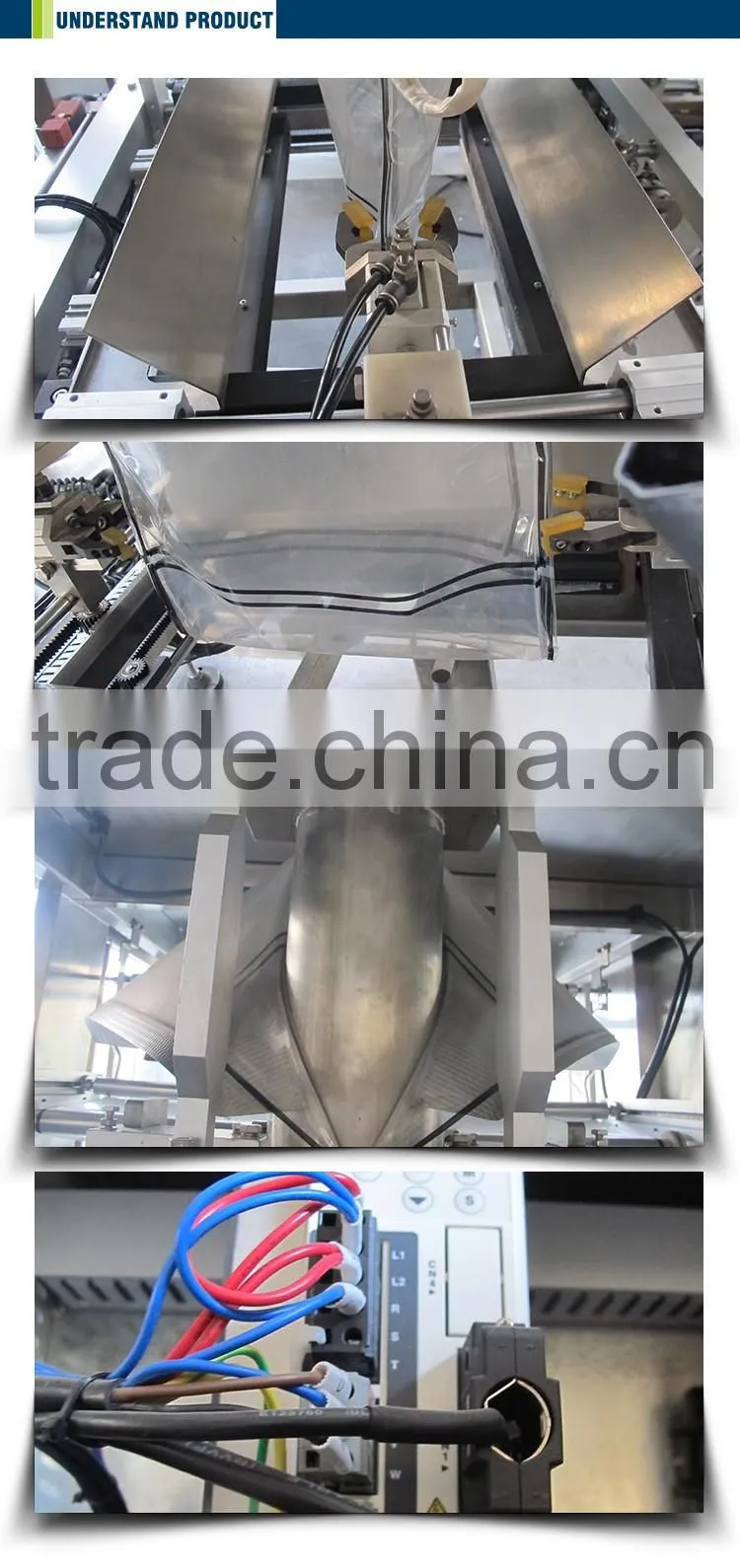

2: Adopted with a swing arm type rubber roller traction tension membrance (servo motor with planetary gear box), and has the function of automatic adjustment.
3: The upper and lower adjustable film pulling adapt to the different length of bag, material and capacities.
4: Material testing photocell can through the thin film material, can accurately give feedback information to full of packaging process.

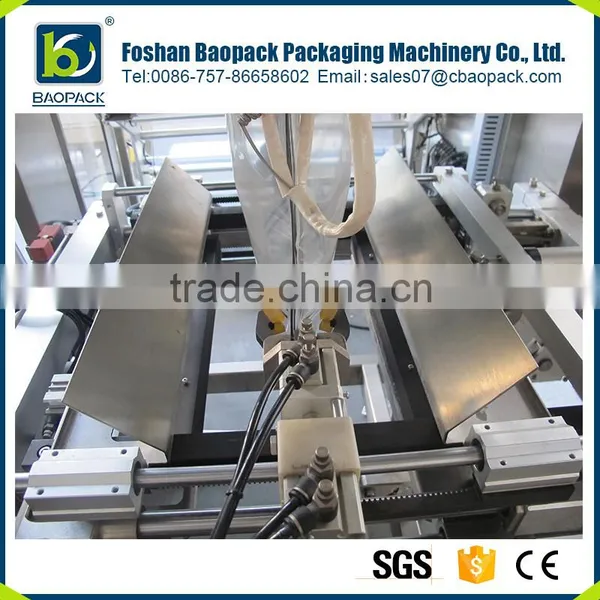

5: The eight unfolding wheel easily solve the four sides sealing bag easily overlappling problem.
6: The hexagonal former design, molding bag better, a strong guarantee the apperance of the bag.
7: Horizontal sealing dynamic design have two optional device that cylinder power and servo fast transverse sealing.
8: The vertical sealing structure using a new type of screw mandrel to adjust different specifications.
Pre-sales Services:
BAOPACK have the best salesmen to provide the most professional services.
Standing in the perspective of the customer to solve your queries.
Medium-sales Services:
BAOPACK have the trained team to follow your orders methodically to guarantee
the products can be finished on time with high quality.
After-sales Services:
BAOPACK have the technician team with many years of technical experience to
provide you the most professional after-sales services.
Q1: Can you send me the video of this machine in operating mode?
A: Yes, please check the link for this video https://youtu.be/_e8gaibXrE4
Q2:What is the material of contact food/material parts?
A: The contact food/material parts are made of 304# stainless steel.
The machine body can be 304#stainless steel or carbon steel.
Q3:Can this machine make different bag sizes?
A: One former can make one bag width, and the bag length can be adjustable within a range.
It should be ordered an extra former if you want to make the other bag width.
Q4:Does your company accept OEM?
A: Yes, we have a professional design and technical team to accept customization.
Q5:When you can deliver the machine after the order is placed?
A: We usually can arrange shipment after 30-40 working days,
but it depends on the quantity of the products.
Q6:How about your warranty?
A: We provide one year warranty and lifelong maintenance.
Q7:What can you provide after service?
A: We can provide machine testing video and pictures before delivery,
English manual, some free spare parts, installation in clients' factory and technical training.
