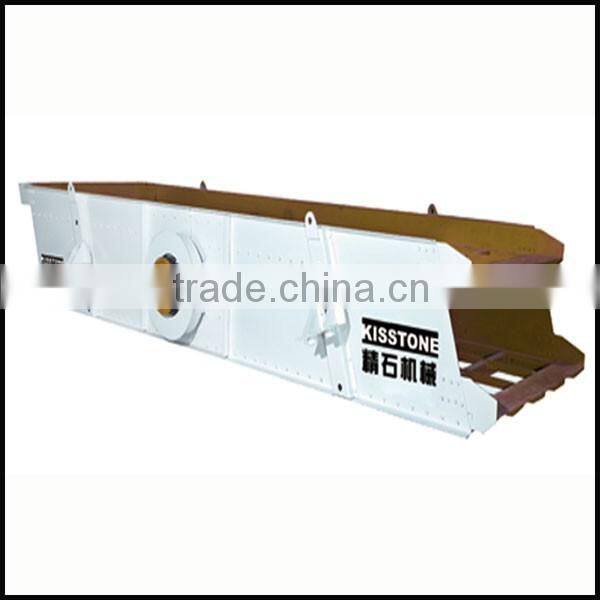

Mining Vibratory Grizzly Sieves Screen

Mining Vibratory Grizzly Sieves Screen photo-1
Mining Vibratory Grizzly Sieves Screen photo-2
Mining Vibratory Grizzly Sieves Screen photo-3
Mining Vibratory Grizzly Sieves Screen photo-4
Mining Vibratory Grizzly Sieves Screen photo-5
Mining Vibratory Grizzly Sieves Screen photo-6
US$ 19,999 - 29,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Circular
Application Ore
Place of Origin Guangdong, China
Brand Name KISSTONE
Model Number YK1542
Power(W) 11000
Dimension(L*W*H) 4200*1500
Weight 3.93t
Certification ISO CE IAF CNAB
Warranty 12 Months
After-sales Service Provided Overseas service center available

Mining vibratory grizzly sieves screen



Product Information

YK series self-centering stepless luffing  vibrating screen is an updated product developed by our company  through introducing German advanced technology and combine it with the actual  production situation. It is suitable for the industry of quarry, mining, construction material, etc. It works stably when starts up or stops. It can automatically adjust excitation force and amplitude according to the material flow size during production process, greatly reducing the blocking phenomenon of normal screen. It is a highly efficient screening machine for classifying broken materials of stone, ore, etc.



*Product Display*



Mining vibratory grizzly sieves screenMining vibratory grizzly sieves screen

Mining vibratory grizzly sieves screen



Structure

 Mining vibratory grizzly sieves screen

*Installation Process*

Mining vibratory grizzly sieves screen

*Product Features*

Mining vibratory grizzly sieves screen



Technical Parameters
ModelLayer Quantity

Area



m2



Sieve Hole Size

mm

Max Feed Size

mm

Capacity

m3/h

Power

kw

Weight

t

 YK1236 1 4.3    1-100     300   40-65   7.5   3.21
 2YK1236 2 4.3    1-100     300   40-65   7.5   3.63
 YK1536 1 5.4    1-100     300   45-70   11   3.68
 2YK1536        2 5.4    1-100     300   45-70   11   4.30
 YK1542        1 6.3    1-100     300   45-75   11   3.93
 2YK1542        2 6.3    1-100     300   45-75   11   4.60
 YK1548        1 7.2    1-100     300   50-80   11   4.78
 2YK1548        2 7.2    1-100     300   50-80   11   5.85
 YK1836        1 6.5    1-100     300   55-85   11   4.82
 2YK1836        2 6.5    1-100     300   55-85   11   5.90
 YK1842        1 7.6    1-100     300   60-90   15   5.38
 2YK1842        2 7.6    1-100     300   60-90   15   6.51
 YK1848        1 8.6    1-100     300  60-100   15   5.95
 2YK1848        2 8.6    1-100     300  60-100   15   6.80
 YK2148        1 10    1-100     300  80-150   15   7.15
 2YK2148        2 10    1-100     300  80-150   15   8.36
 YK2060        1 12    1-100     300 100-180   22   7.37
 2YK2060        2 12    1-100     300 100-180   22   8.98
 YK2160        1 12.6    1-100     300 110-220   22   8.03
 2YK2160        2 12.6    1-100     300 110-220   22  10.12
 YK2270        1 15.4    1-100     300 120-230   22   9.62
 2YK2270        2 15.4    1-100     300 120-230   22  11.86
 YK2448        1 11.5    1-100     300 100-160   22   8.98
 2YK2448        2 11.5    1-100     300 100-160   22  10.70
 YK2460        1 14.4    1-100     300 120-210   22   9.30
 2YK2460        2 14.4    1-100     300 120-210   22  11.54
 YK2470        1 16.8    1-100     300 140-260   30  10.95
2YK2470        2 16.8

     1-100

      300 140-260   30   12.18





About Us

 Mining vibratory grizzly sieves screenMining vibratory grizzly sieves screen

Mining vibratory grizzly sieves screen



Our Service



 *Special Customized Service*

We own a professional technical and design team to offer a proposal of the product line based on your specific situation and bring you the maximal economic benefit with minimum cost. :)



*Production Line Case*

Mining vibratory grizzly sieves screen

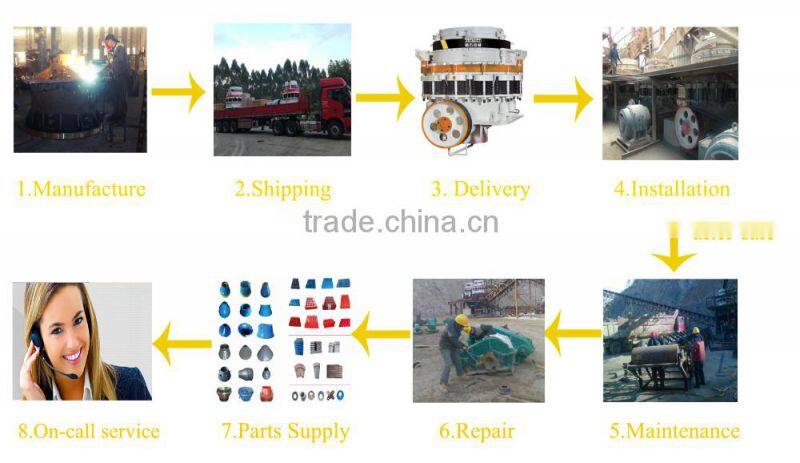

*One-station Service*

Mining vibratory grizzly sieves screen



Shipping & Package

Mining vibratory grizzly sieves screen

FAQ



1. How long is the warranty period of the product?

 One year. If there is any problem, please feel free to contact us and we will do whatever we can to help you as soon as possible.

2. I am from Africa.  I have difficulty in currency exchange and the custom issue.

No worry. We have our local company there and can help you solve them easily.

3. Do you accept factory visiting?

Sure. Welcome to our factory anytime!

4.  Do you provide spare parts?

Yes, we provide all spare parts of the machine and we accept customized ones upon customers requirement.
