Durable vibrating screener/sand extracting machine for coal
Introduction

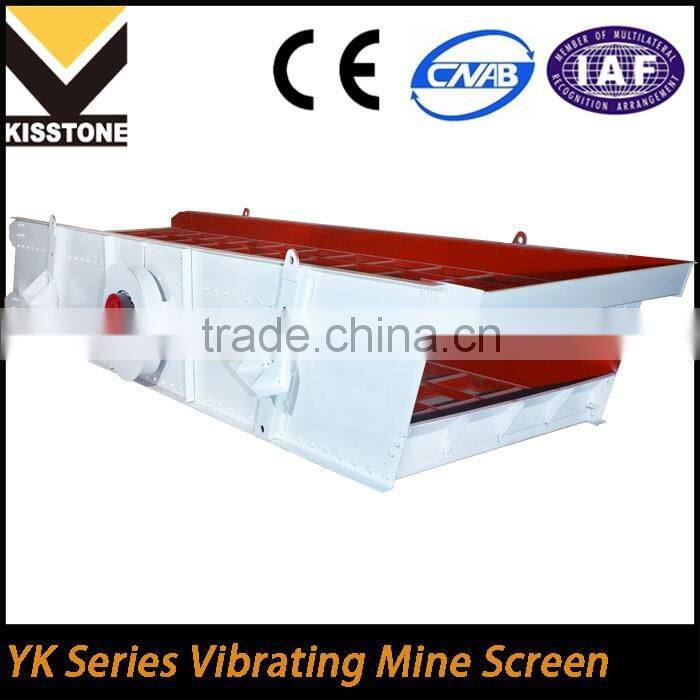

YK series self-centering variable amplitude vibrating screen is a new generation patent product developed by our company through introducing German advanced technology and combine with the actual situation of domestic industry.It is suitable for using in industry of quarry,it can adjust automatic excitation force and amplitude,thus decrease greatly blocking screen phenomenon.It is a high efficient screening machine for classifying broken materials of stone,ore,etc.

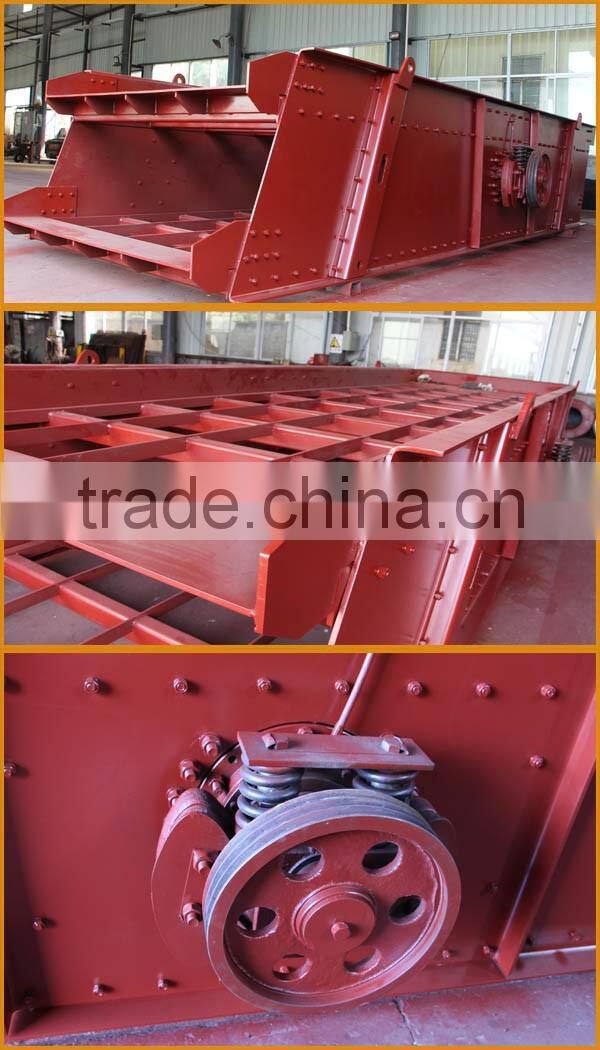

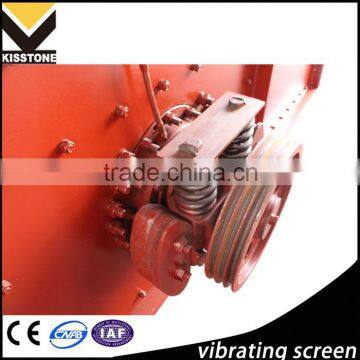

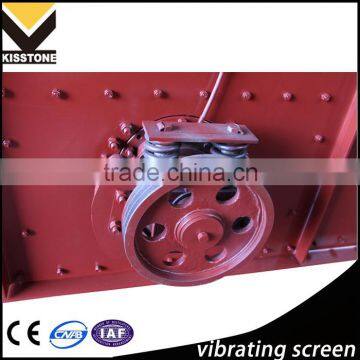

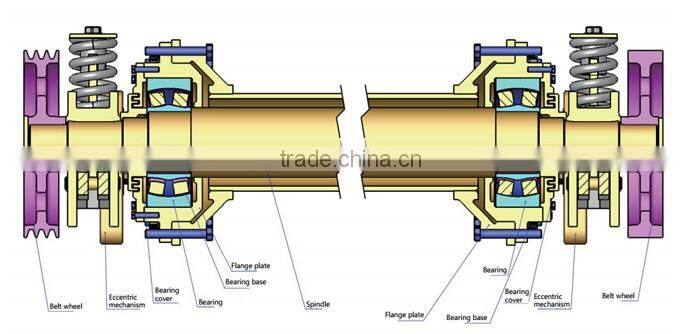

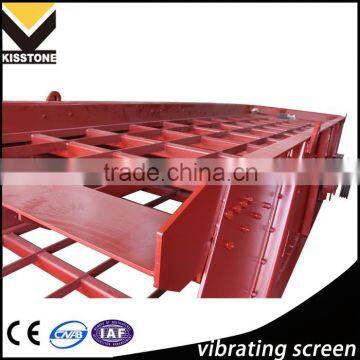

The movement of this vibrating screen is that motor through V-belt drive vibrator with eccentric device to make screen box vibrating,the motion trail of screen composes of screen box,vibrator,spring vibrator device and supporting base,etc.Screen box is made of high quality alloy-steel plate and connected by high strength bolts to constitute frame structure.Vibrator adopts infinite amplitude eccentric mechanism.Spring vibrating device adopt high quality coil spring.
Features
1. Stable operation.
2. Be wearproof for the screen box with long lift.
3. High screening efficiency with low noise.
4. Variable amplitude.
5. Non clogging screen.
6. High standard sealing effect.
Specification
Model | Screen | Max. feeding size (mm) | Capacity m³/h | Double amplitude mm | Motor | Weight (kgs) | Dynamic load (N) | Max. dymamic load (kN) | |||||
| Layer | Area m² | Angle | Mesh size (mm) | Model | Power kw | Speed (r/mim) | |||||||
| YK1236 | 1 | 4.3 | 20 | 1-100 | 300 | 340-65 | 8-10 | Y160L-8 | 7.5 | 720 | 3210 | 616 | 3.69 |
| 2YK1236 | 2 | 4.3 | 20 | 1-100 | 300 | 40-65 | 8-10 | Y160L-8 | 7.5 | 720 | 3630 | 737 | 4.42 |
| YK1536 | 1 | 5.4 | 20 | 1-100 | 300 | 45-70 | 8-10 | Y180L-8 | 11 | 730 | 3680 | 639 | 3.83 |
| 2YK1536 | 2 | 5.4 | 20 | 1-100 | 300 | 45-70 | 8-10 | Y180L-8 | 11 | 730 | 4300 | 788 | 4.72 |
| YK1542 | 1 | 6.3 | 20 | 1-100 | 300 | 45-75 | 8-10 | Y180L-8 | 11 | 730 | 3930 | 667 | 4 |
| 2YK1542 | 2 | 6.3 | 20 | 1-100 | 300 | 45-75 | 8-10 | Y180L-8 | 11 | 730 | 4600 | 835 | 5.01 |
| YK1548 | 1 | 7.2 | 20 | 1-100 | 300 | 50-80 | 8-10 | Y180L-8 | 11 | 730 | 4780 | 863 | 5.17 |
| 2YK1548 | 2 | 7.2 | 20 | 1-100 | 300 | 50-80 | 8-10 | Y180L-8 | 11 | 730 | 5850 | 1003 | 6.04 |
| YK1836 | 1 | 6.5 | 20 | 1-100 | 300 | 55-85 | 8-10 | Y180L-8 | 11 | 730 | 4820 | 831 | 4.98 |
| 2YK1836 | 2 | 6.5 | 20 | 1-100 | 300 | 55-85 | 8-10 | Y180L-8 | 11 | 730 | 5900 | 1008 | 6.04 |
| YK1842 | 1 | 7.6 | 20 | 1-100 | 300 | 60-90 | 8-10 | Y160L-4 | 15 | 1470 | 5380 | 882 | 5.29 |
| 2YK1842 | 2 | 7.6 | 20 | 1-100 | 300 | 60-90 | 8-10 | Y160L-4 | 15 | 1470 | 6510 | 118 | 6.70 |
| YK1848 | 1 | 8.6 | 20 | 1-100 | 300 | 60-100 | 8-10 | Y160L-4 | 15 | 1470 | 6800 | 961 | 5.76 |
| 2YK1848 | 2 | 8.6 | 20 | 1-100 | 300 | 60-100 | 8-10 | Y160L-4 | 15 | 1470 | 5950 | 698 | 4.18 |
Guangzhou Kisstone import and Export Co.,Ltd.is Kisstone Group subordinates are mainly for foreign import and export business of the subsidiary,the group id specialized in mine crushing equipment,screening equipment,screening equipment and transportation equipment R&D,manufacturing and sales for the integrated enterprise backbone, as well as the main mining equipment production and export base in South of China.

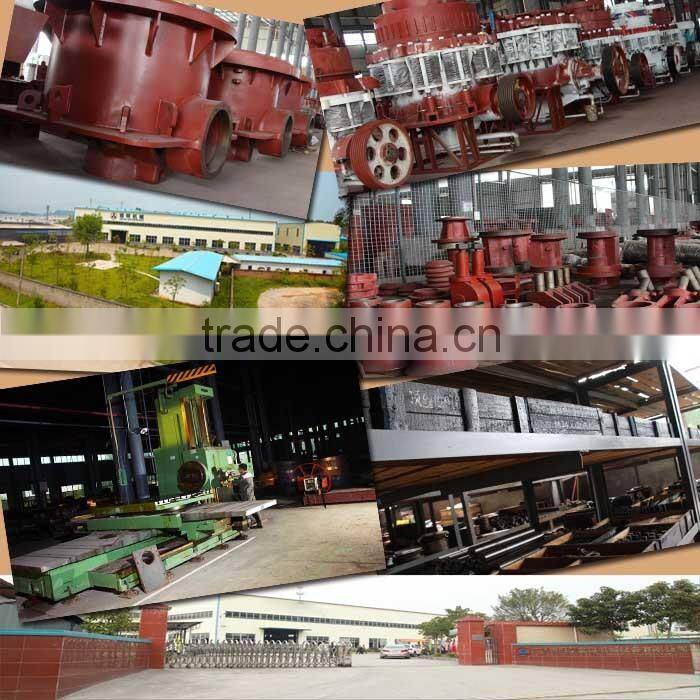

Our group has its own production base and independent casting base,modern metal cutting and processing equipment,equipped with advanced Solid Works 3D mechanical design system and simulation test system,has a professional sales,technical and service teams and establish more than 180 professional design,installation and on-site operations management team,for customers to provide complete sets of equipment solutions,turn key project.
1. We are online 24 hours on working days.
2. One team of Engineers for solution of products.
3. Stock of spare parts.
4. Strict inspection making before delivery.
5. Punctual shipment time and good after-sales service will be guaranteed.
6. Project designing, process designing, choosing suitable equipment be provided freely..
7. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export crusher
8. Engineers be sent to the scene to guide installation, debugging and training operators if necessary.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and the production base located in Guangzhou City with 10 years experience.
Q. Payments terms?
A: T/T, L/C, D/P,
Q. What is the delivery time?
A: 15 working days except the special order.
Q. Warranty
A:1 year for warranty, Wearing parts and the problems by improper operation is not included.
Q. Can you provide the suitable equipment?
A:Yes, of course. Plz provide the following info for making the program.
1. The produce capacity (tons for per hour)
2. The Max. Feeding size
3. The output size
4. Material for the Stone (hard of soft)
