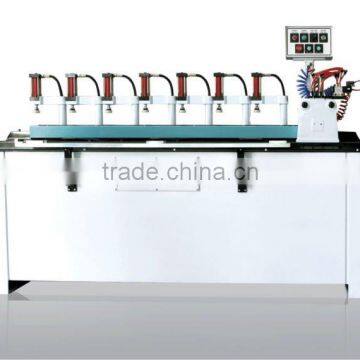

FU294F Automatic Flat Clipping Machine

Specifications

Application:

It's used for clilpping flat clothing of various of kinds of cards

Main specification :

Working width                                            1440-1643mm

Suited flat width                                          33.3mm

Motion speed while clipping flat              60mm/s

Power rate                                                    1.1kw

Compressing air pressure                       0.6-0.8Mpa

Machine weght                                            1000kg

Main feature:

Easy operation, reliable performance and beautiful appearance

FU294F adopts automatic pneumatic clamping, clipping and positioning for flat, featured by high automation

Vertical compression on flat bone adopts seven support & compression poits, driven by pneumatic and hydraulic pressure increasing cylinder with even force and higher flat clipping plane ness, greatly increasing grinding times and flat's life.

Flat clipping is finished at one time, no need manual operation at wo ends.

Special motor drives ladder-shaped guide screw, featured by advanced stucture

All clipping process is controlled by PLC with accuracy and reliability, featured by convenient adjustment and reliability.
