YK series self-centering stepless luffing vibrating screen is an updated product developed by our company through introducing German advanced technology and combine it with the actual production situation. It is suitable for the industry of quarry, mining, construction material, etc. It works stably when starts up or stops. It can automatically adjust excitation force and amplitude according to the material flow size during production process, greatly reducing the blocking phenomenon of normal screen. It is a highly efficient screening machine for classifying broken materials of stone, ore, etc.

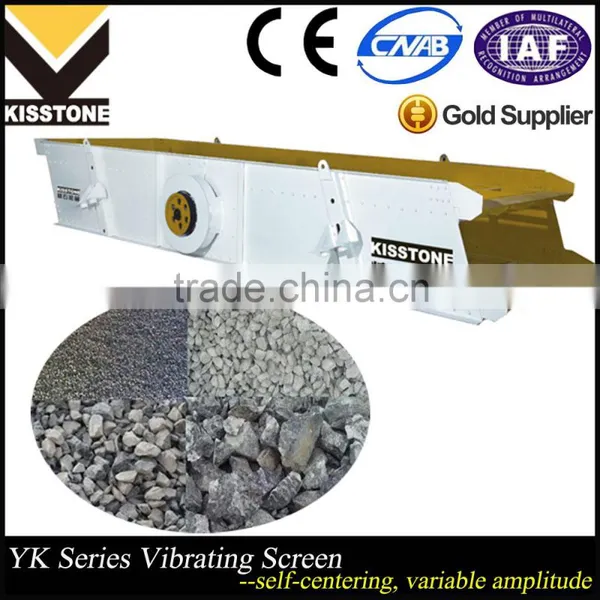

*Product Display*

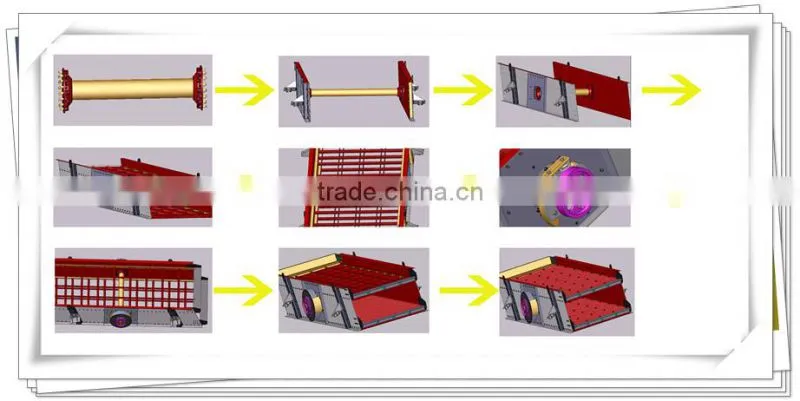

*Installation Process*

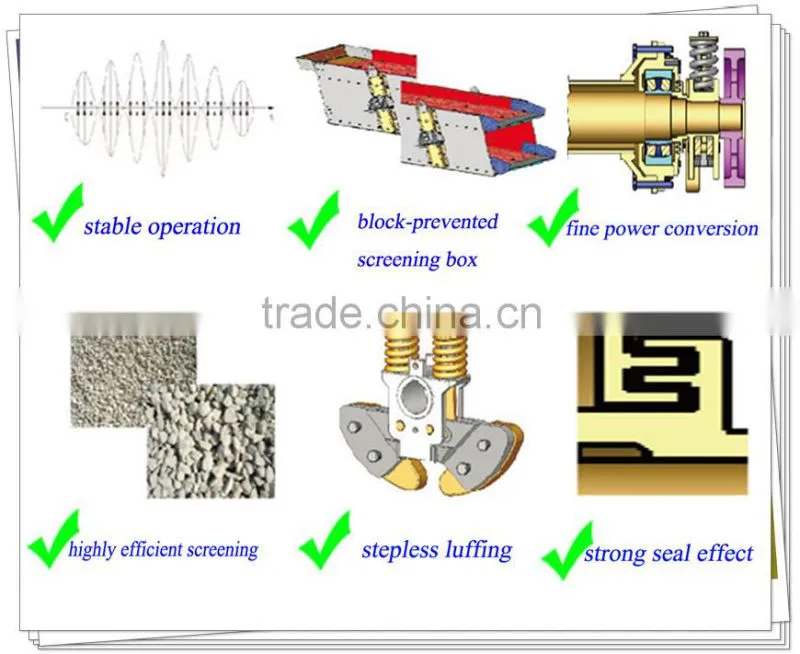

*Product Features*
| Model | Layer Quantity |
Area
m2 |
Sieve Hole Size mm |
Max Feed Size mm |
Capacity m3/h |
Power kw |
Weight t |
| YK1236 | 1 | 4.3 | 1-100 | 300 | 40-65 | 7.5 | 3.21 |
| 2YK1236 | 2 | 4.3 | 1-100 | 300 | 40-65 | 7.5 | 3.63 |
| YK1536 | 1 | 5.4 | 1-100 | 300 | 45-70 | 11 | 3.68 |
| 2YK1536 | 2 | 5.4 | 1-100 | 300 | 45-70 | 11 | 4.30 |
| YK1542 | 1 | 6.3 | 1-100 | 300 | 45-75 | 11 | 3.93 |
| 2YK1542 | 2 | 6.3 | 1-100 | 300 | 45-75 | 11 | 4.60 |
| YK1548 | 1 | 7.2 | 1-100 | 300 | 50-80 | 11 | 4.78 |
| 2YK1548 | 2 | 7.2 | 1-100 | 300 | 50-80 | 11 | 5.85 |
| YK1836 | 1 | 6.5 | 1-100 | 300 | 55-85 | 11 | 4.82 |
| 2YK1836 | 2 | 6.5 | 1-100 | 300 | 55-85 | 11 | 5.90 |
| YK1842 | 1 | 7.6 | 1-100 | 300 | 60-90 | 15 | 5.38 |
| 2YK1842 | 2 | 7.6 | 1-100 | 300 | 60-90 | 15 | 6.51 |
| YK1848 | 1 | 8.6 | 1-100 | 300 | 60-100 | 15 | 5.95 |
| 2YK1848 | 2 | 8.6 | 1-100 | 300 | 60-100 | 15 | 6.80 |
| YK2148 | 1 | 10 | 1-100 | 300 | 80-150 | 15 | 7.15 |
| 2YK2148 | 2 | 10 | 1-100 | 300 | 80-150 | 15 | 8.36 |
| YK2060 | 1 | 12 | 1-100 | 300 | 100-180 | 22 | 7.37 |
| 2YK2060 | 2 | 12 | 1-100 | 300 | 100-180 | 22 | 8.98 |
| YK2160 | 1 | 12.6 | 1-100 | 300 | 110-220 | 22 | 8.03 |
| 2YK2160 | 2 | 12.6 | 1-100 | 300 | 110-220 | 22 | 10.12 |
| YK2270 | 1 | 15.4 | 1-100 | 300 | 120-230 | 22 | 9.62 |
| 2YK2270 | 2 | 15.4 | 1-100 | 300 | 120-230 | 22 | 11.86 |
| YK2448 | 1 | 11.5 | 1-100 | 300 | 100-160 | 22 | 8.98 |
| 2YK2448 | 2 | 11.5 | 1-100 | 300 | 100-160 | 22 | 10.70 |
| YK2460 | 1 | 14.4 | 1-100 | 300 | 120-210 | 22 | 9.30 |
| 2YK2460 | 2 | 14.4 | 1-100 | 300 | 120-210 | 22 | 11.54 |
| YK2470 | 1 | 16.8 | 1-100 | 300 | 140-260 | 30 | 10.95 |
| 2YK2470 | 2 | 16.8 | 1-100 |
300 | 140-260 | 30 | 12.18 |
*Special Customized Service*
We own a professional technical and design team to offer a proposal of the product line based on your specific situation and bring you the maximal economic benefit with minimum cost. :)

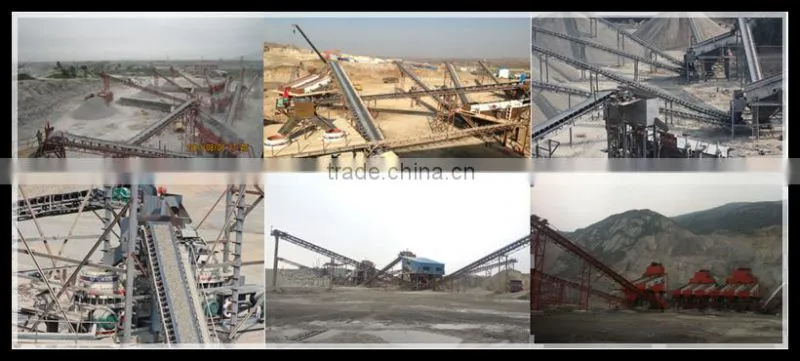

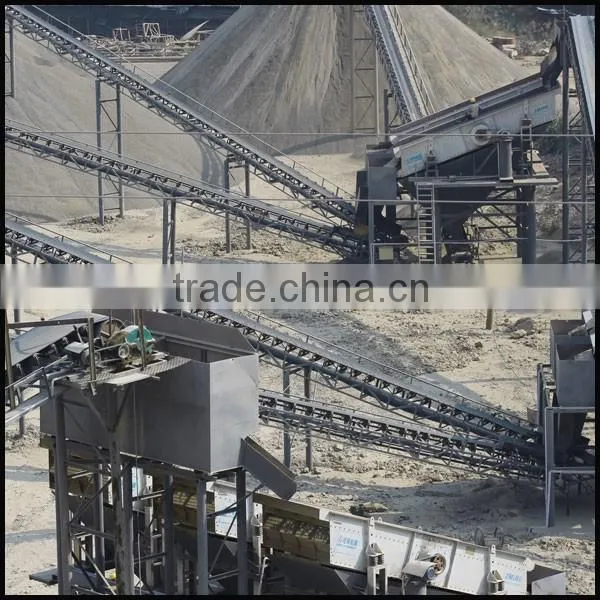

*Production Line Case*

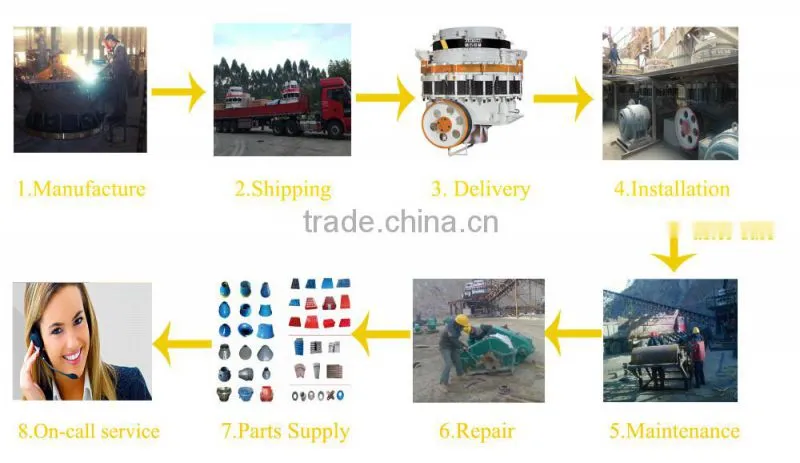

*One-station Service*
1. How long is the warranty period of the product?
One year. If there is any problem, please feel free to contact us and we will do whatever we can to help you as soon as possible.
2. I am from Africa. I have difficulty in currency exchange and the custom issue.
No worry. We have our local company there and can help you solve them easily.
3. Do you accept factory visiting?
Sure. Welcome to our factory anytime!
4. Do you provide spare parts?
Yes, we provide all spare parts of the machine and we accept customized ones upon customers’ requirement.
