Centrifugal bowl feeder, gravimetric feeders
The GZB series vibrating feeder is a slanting fitted vibrating feeder with single-mass elastic system. The electromotor makes the eccentric shaft and the eccentric mass and the eccentric mass of the vibrator produce enough excited force after being decelerated by the belt pulley, stimulating the machine case produce circular vibration with certain amplitude. The materials conduct continuous casting on the slant working surface with the excited force effect and move down during the casting process, realizing even feeding.
This machines has simple structure, convenient operation, reliable working and easy maintenance, which is mainly used as the feeding machine in the departments like beneficiation, construction material, electricity, chemistry and so on. This machine has two types: plate type and bar type, which are separately marked as GZBXXXX and GZBXXXXB.

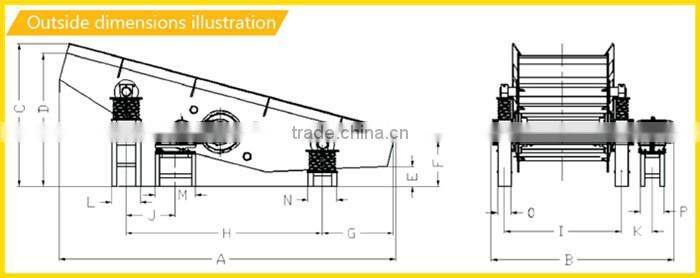

Structure diagram:
| Model |
Size of material surface (length x height) |
Effective working area m2 |
Tilt angle of feeding material surface |
Vibration frequency r/min |
Double amplitude of case mm |
Maximum feeding size mm |
Processing capacity t/h |
motor | Weight t |
|||
| Model |
Power kw |
Speed r/min |
Voltage v |
|||||||||
| GZB0715 | 700*1500 | 1.1 | 15-20 | 800 | 7-10 | 420 | 50-200 | Y132M-4 | 7.5 | 1440 | 380 | 1.8 |
| GZB1017 | 1000*1700 | 1.7 | 15-20 | 800 | 7-10 | 600 | 80-320 | Y132M-4 | 7.5 | 1440 | 380 | 2.1 |
| GZB1218 | 1200*1800 | 2.2 | 15-20 | 800 | 7-10 | 750 | 120-400 | Y160M-4 | 11 | 1450 | 380 | 3.1 |
| GZB0730B | 700*3000 | 2.1 | 15-20 | 700 | 7-10 | 750 | 120-450 | Y180M-4 | 18.5 | 1460 | 380 | 3.2 |
| GZB0930B | 900*3000 | 2.7 | 15-20 | 700 | 7-10 | 750 | 120-450 | Y180M-4 | 18.5 | 1460 | 380 | 3.4 |
| GZB1035B | 1000*3500 | 3.5 | 15-20 | 700 | 7-10 | 750 | 120-450 | Y180M-4 | 18.5 | 1460 | 380 | 3.8 |
| GZB1045B | 1000*4500 | 4.5 | 15-20 | 700 | 7-10 | 750 | 180-500 | Y180M-4 | 18.5 | 1460 | 380 | 4.6 |
| GZB1235B | 1200*3500 | 4.2 | 15-20 | 700 | 7-10 | 750 | 180-500 | Y180M-4 | 18.5 | 1460 | 380 | 4.4 |
| GZB1245B | 1200*4500 | 5.4 | 15-20 | 700 | 7-10 | 750 | 200-550 | Y180M-4 | 18.5 | 1460 | 380 | 5.0 |
| GZB1250B | 1200*5000 | 6.0 | 15-20 | 700 | 7-10 | 750 | 230-600 | Y180L-4 | 22 | 1460 | 380 | 5.4 |
| GZB1560B | 1500*6000 | 9.0 | 15-20 | 700 | 7-10 | 900 | 280-700 | Y225S-4 | 37 | 1470 | 380 | 7.4 |
1. Imple structure, easy to install and use, stable performance
2. Easy to adjust, low maintenance cost
3. Reliable operation, low noise
4. High efficiency and feeding capacity
5. No pollution with closed body, and long service life

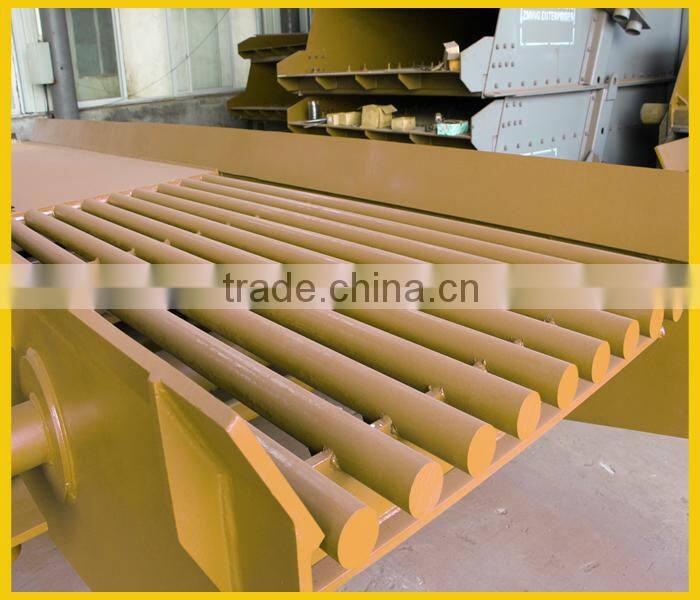

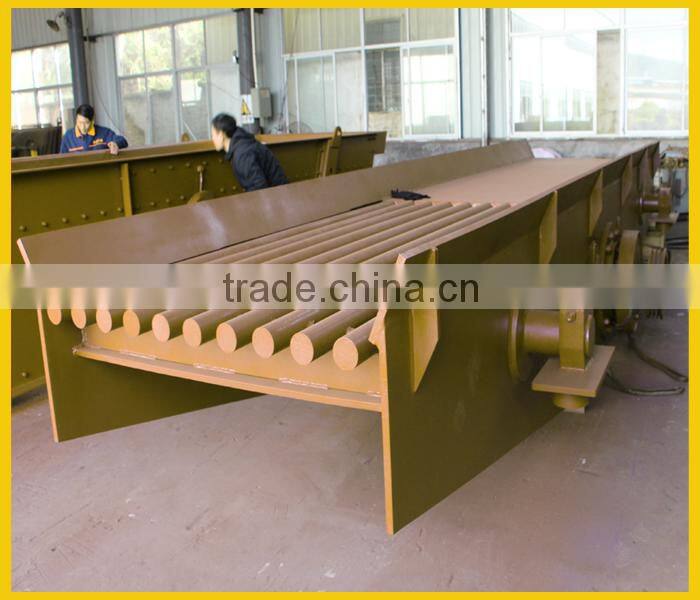

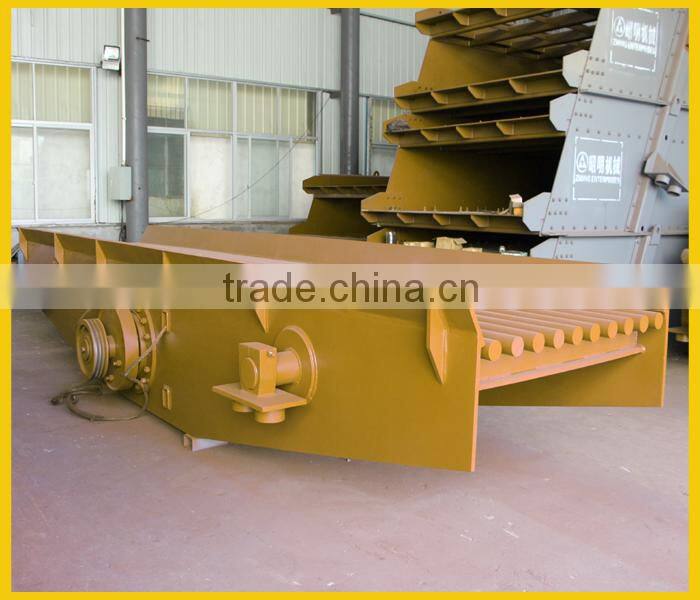

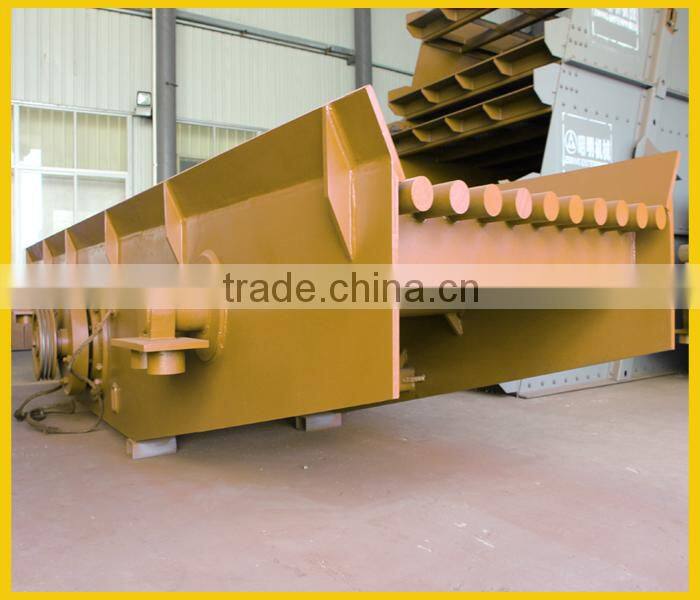

Detailed Pictures for reference:
Project Case: 220t/h gravel production line
Production capacity: 220t/h, 88000t per month(working time: 16 hours per day, 25days per month).
Equipment: one set PE750×1060 Jaw crusher, two sets S155BC cone crusher(Standard), two sets S155DC cone crusher(Short-head), 2YA2400×6000 double vibrating screen.
Max feeding size: 630 mm
Total Power of the product lines: 1834KW
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. For the goods, we use standard export containers, bare main machine, motors and small parts are packed in wooden cases.
As one of the leading manufacturer of Mining machinery equipment in China, we mainly produce Crushing equipment, screening equipment and some related spare parts, such as Jaw crusher, Cone crusher, Impact crusher, reaction crusher, vibrating screen and feeder, fine sand and recycling machine, and so on.
We have our independent production and casting base, modern metal cutting and processing equipment with advanced Solid Works 3D mechanical design system and simulation test system. Our products are durable and wear-resistant which bring the customers lower cost and long working life.
Certifications:
Pre-sales Services:
Freely provide project designing, process designing, choosing suitable equipment for you.
Medium-sales service:
After we signed the purchase contract, we will provide you the perfect goods trading services, until the product you purchased properly to your hands.
After-sales Services:
We will send a professional and high levels installation engineer team to the scene to guide installation, debugging and training operators.
Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we own consummate after sales service, technical support
and full spare parts supply, which will keep the equipments and system in a good working condition.
You might like mining equipment:
S series cone crusher
ZM series composite cone crusher
GS series high efficient hydraulic Cone Crusher
PE series Jaw Crusher
GD series Rotary disc Crusher
PF series reaction crusher
PL series vertical impact crusher
GZB series Vibrating Feeder
YK series Vibrating Screen
SH series fine sand recycling machine
Spare parts
Any interests, just need to click the relevant website to see more details or contact me by email.
Q: How long is the warranty of your equipments? Does your company supply the spare parts?
A: The warranty period of Kisstone equipments is one year, so any questions, please contact us freely by 24 hours. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: How about the quality of your products?
A: 1. Our crusher manufactured strictly according to national and international standard.
2. We adopt highly inspecting equipments in every working procedure, make test-run and check all the parts before machine leaving our factory, to provide you the best goods.
Q: Will you accept factory inspection?
A: Yes, of course. You are greatly welcome to visit our factory for you own inspection.
Q: What could you help me to do for the business?
A: Many thanks for your trust, we can provide you with proposal chart for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments and combine a complete mineral processing line, and give you related professional advices as long as you need. We also can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment.
Attention Please:
In order to recommend suitable design for you, please kindly let me know:
1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
2. What is the maximum feed size of your raw material?
3. What are output sizes you want? Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
4. What is capacity you want? How many ton per hour?
5. Do you just need the crusher or a whole crushing line(include the feeder, vibrating screens, conveyors and so on)?
