Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Mining Quarry Road Building Construction |
Motor Type: | AC Motor | Power(W): | 110000 | Capacity(t/h): | 72-140 |
Place of Origin: | Guangdong, China | Brand Name: | KISSTONE | Model Number: | PE750*1060 |
Dimension(L*W*H): | 2531*2420*2783mm | Weight: | 25t | Certification: | CE ISO IAF CNAB |
Warranty: | 12 Months | After-sales Service Provided: | Overseas service center available |
Product Description
Mobile crusher machine manufacturer from KISSTONE
Overview:
Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.
Specification
Welding Type
Model | Feed Open Size (mm) | Adjusting range of discharge size (mm) | Max Feed Size (mm) | Capacity (t/h) | Weight (t) | Overall Size (mm) | Power (KW) |
PE400*600 | 400*600 | 40-90 | 340 | 10-34 | 6.5 | 1700*1732*1655 | 30 |
PE500*750 | 500*750 | 50-100 | 425 | 32-62 | 11.85 | 2030*1966*1920 | 55 |
PE600*900 | 600*900 | 65-160 | 500 | 50-110 | 16.7 | 2248*2180*2373 | 75 |
PE750*1060 | 750*1060 | 80-180 | 630 | 72-140 | 25 | 2531*2420*2783 | 110 |
PE900*1200 | 900*1200 | 98-200 | 750 | 150-230 | 42.2 | 3135*2799*3260 | 132 |
PE1200*1500 | 1200*1500 | 150-300 | 1020 | 250-600 | 85 | 4016*3417*3725 | 220 |
CastingType
Model | Feed Open Size (mm) | Adjusting range of discharge size (mm) | Max Feed Size (mm) | Capacity (t/h) | Weight (t) | Power (KW) |
PEV400*600 | 600*400 | 40-90 | 350 | 30 | 6.48 | 30 |
PEV500*750 | 750*500 | 50-100 | 425 | 55 | 10.27 | 55 |
PEV600*900 | 900*600 | 80-160 | 500 | 75 | 16.66 | 75 |
PEV750*1060 | 1060*750 | 100-180 | 630 | 110 | 30.50 | 110 |
PEV900*1060 | 1060*900 | 120-200 | 785 | 110 | 31.50 | 110 |
PEV900*1200 | 1200*900 | 100-200 | 820 | 132 | 50.00 | 132 |
PEV1200*1500 | 1500*1200 | 150-300 | 1000 | 220 | 82.00 | 220 |
PEV1500*2100 | 2100*1500 | 220-350 | 1200 | 280 | 120.00 | 280 |
Working Principle
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Features
1.High ratio of crushing,
2. Even final size,
3. Simple structure,
4. Reliable working condition,
5. Easy maintenance, 6. Low operating cost.
Purpose and Application Scope
As the most technology mature crusher of Kisstone Mechanics, PE series jaw crusher has a high crushing ratio up to 4-6, and its products are well-distributed, so it can be widely used in the following areas:
1.It is used for coarse crushing of limestone, rocks, river pebble, basalt, granite, quartz stone, tailings, slag and other minerals, as well as primary crushing of stone production line and sand making line.
2.It is applicable for coarse crushing in front grinding process in mineral industry, and other fields like building material, metallurgy, chemical, mining, refractory materials, cement, abrasive, etc.
3.It is applied to stone crushing in field of infrastructure project, water conservancy and hydropower, highway, high-speed railway, passenger transport line, bridge, airport runway, municipal engineering and high-rise building.

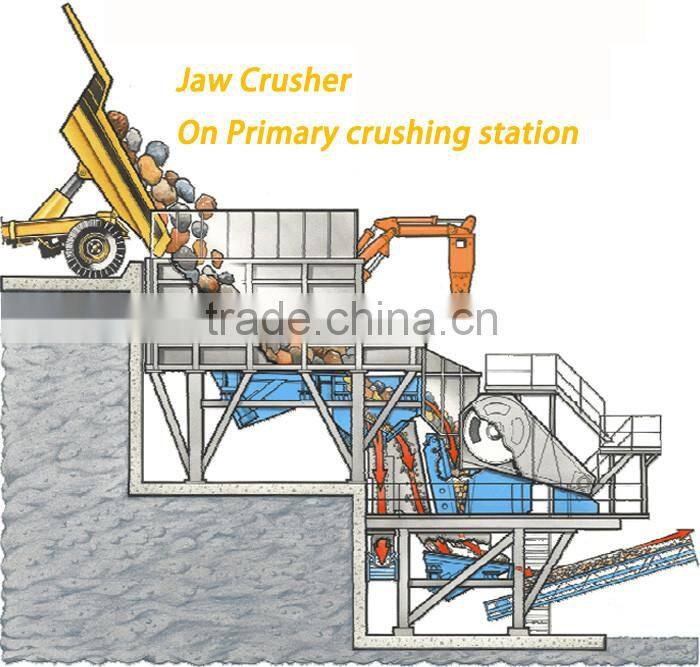

JAW CRUSHER ON SITE
Guangzhou Kisstone import and Export Co.,Ltd. is Kisstone Group subordinates are mainly for foreign import and export business of the subsidiary,the group id specialized in mine crushing equipment,screening equipment,screening equipment and transportation equipment R&D,manufacturing and sales for the integrated enterprise backbone, as well as the main mining equipment production and export base in South of China.
Our group has own production base and independent casting base,modern metal cutting and processing equipment,equipped with advanced Solid Works 3D mechanical design system and simulation test system,has a professional sales,technical and service teams and establish more than 180 professional design,installation and on-site operations management team,for customers to provide complete sets of equipment solutions,turn key project.
1. We are online 24 hours on working days.
2. One team of Engineers for solution of products.
3. Stock of spare parts.
4. Strict inspection making before delivery.
5. Punctual shipment time and good after-sales service will be guaranteed.
6. Project designing, process designing, choosing suitable equipment be provided freely..
7. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export crusher
8. Engineers be sent to the scene to guide installation, debugging and training operators if necessary.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and the production base located in Guangzhou City with 10 years experience.
Q. Payments terms?
A: T/T, L/C, D/P,
Q. What is the delivery time?
A: 15 working days except the special order.
Q. Warranty
A:1 year for warranty, Wearing parts and the problems by improper operation is not included.
Q. Can you provide the suitable equipment?
A:Yes, of course. Plz provide the following info for making the program.
1. The produce capacity (tons for per hour)
2. The Max. Feeding size
3. The output size
4. Material for the Stone (hard of soft)
