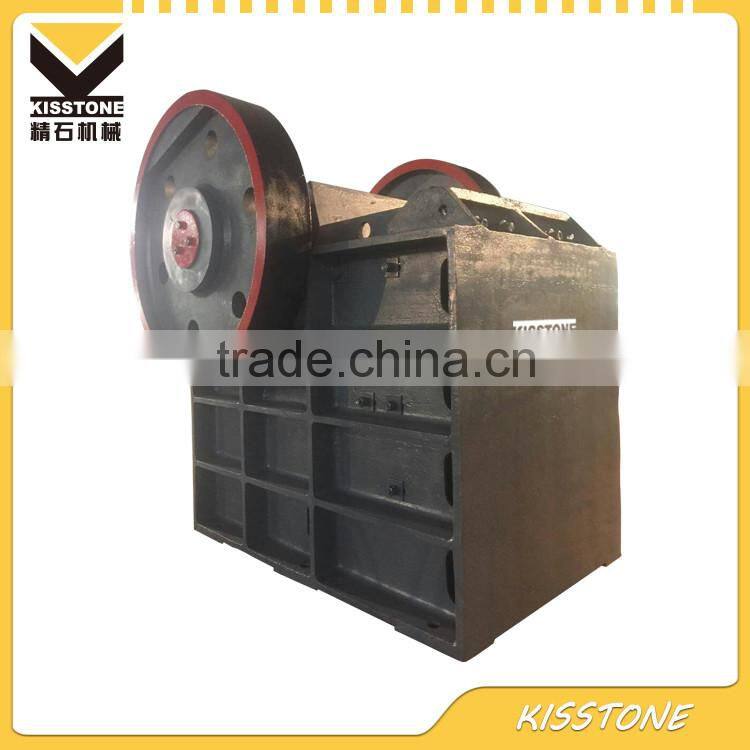

Deep cavity crushing mobile jaw crusher price india
Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.
1.The motor drives the eccentric shaft through V-belt pulley to make the moving jaw periodically move back and forth along a scheduled track and crush the materials in the crushing chamber.
2.The finished products are discharged from the discharging port by self weight.
- Little noise and dust.
Model | Feed Open Size (mm) | Adjusting range of discharge size (mm) | Max Feed Size (mm) | Capacity (t/h) | Weight (t) | Overall Size (mm) | Power (KW) |
PE400*600 | 400*600 | 40-90 | 340 | 10-34 | 6.5 | 1700*1732*1655 | 30 |
PE500*750 | 500*750 | 50-100 | 425 | 32-62 | 11.85 | 2030*1966*1920 | 55 |
PE600*900 | 600*900 | 65-160 | 500 | 50-110 | 16.7 | 2248*2180*2373 | 75 |
PE750*1060 | 750*1060 | 80-180 | 630 | 72-140 | 25 | 2531*2420*2783 | 110 |
PE900*1200 | 900*1200 | 98-200 | 750 | 150-230 | 42.2 | 3135*2799*3260 | 132 |
PE1200*1500 | 1200*1500 | 150-300 | 1020 | 250-600 | 85 | 4016*3417*3725 | 220 |
Model | Feed Open Size (mm) | Adjusting range of discharge size (mm) | Max Feed Size (mm) | Capacity (t/h) | Weight (t) | Power (KW) |
PEV400*600 | 600*400 | 40-90 | 350 | 30 | 6.48 | 30 |
PEV500*750 | 750*500 | 50-100 | 425 | 55 | 10.27 | 55 |
PEV600*900 | 900*600 | 80-160 | 500 | 75 | 16.66 | 75 |
PEV750*1060 | 1060*750 | 100-180 | 630 | 110 | 30.50 | 110 |
PEV900*1060 | 1060*900 | 120-200 | 785 | 110 | 31.50 | 110 |
PEV900*1200 | 1200*900 | 100-200 | 820 | 132 | 50.00 | 132 |
PEV1200*1500 | 1500*1200 | 150-300 | 1000 | 220 | 82.00 |
220 |
PEV1500*2100 | 2100*1500 | 220-350 | 1200 | 280 | 120.00 | 280 |
