Capacitor Grade Tantalum Wire,tantalum Wire
US$ 350 - 400
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
SYWD
Model Number:
SYWD-161
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tantalum Sheet (Ta2),Tantalum SheetUS$ 500 - 600MOQ: 1 Kilogram -
Electrode Tantalum Wire MeshUS$ 10 - 15MOQ: 30 Square Meters
-
Niobium Seamed Pipe,Niobium Seamless Pipe,Niobium PipeUS$ 200 - 500MOQ: 1 Kilogram
-
Forging Niobium Bar,polishing Niobium Bar,Niobium BarUS$ 100 - 150MOQ: 1 Kilogram
-
Niobium Wire, High Pure Niobium Wire, Superfine Niobium WireUS$ 30 - 50MOQ: 1 Kilogram
Place of Origin
Beijing, China
Brand Name
SYWD
Model Number
SYWD-161
Application
To produce a tantalum electrolytic capacitor anode lead
Shape
wire
Material
tantalum
Chemical Composition
tantalum
Product Description

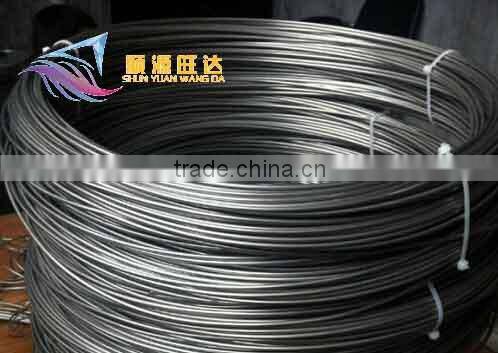

Capacitor grade Tantalum Wire,tantalum wire
1. Product properties of tantalum wire :
Electrical properties:
LC:≤0.10µA/cm2
Formation liquid: 0.1%H3PO4
Formation temperature: 90±2
Density of the frmation Current: 5mA/cm2
Formation voltage/time: 225V/30min
LC:≤0.10µA/cm2
Formation liquid: 0.1%H3PO4
Formation temperature: 90±2
Density of the frmation Current: 5mA/cm2
Formation voltage/time: 225V/30min
2.Usage of tantalum wire:
1. The capacitor grade tantalum wire is mainly used for the production of tantalum electrolytic capacitor anode lead.
2. the medical field: to compensate for muscle tissue, and can be used to suture the nerves and tendons
3. Make a vacuum furnaces heat generating components
3. Specification and tolerance of tantalum wire :
Spec. diameter tolerance allowed
Spec. diameter tolerance allowed
| Specification,mm | diameter tolerance allowed,mm |
| 0.10mm~0.15mm | ±0.005 |
| >0.15mm~0.30mm | ±0.006 |
| >0.30mm | ±0.007 |
4.Mechanical properties of tantalum wire :
| Product condition | Tensile strength,MPa | Elongation,% |
| Annealled | 300~600 | 10~30 |
| Half annealled | >600~1000 | <5 |
| Unannealled | >1000 | <5 |
5.Ingredient of tantalum wire
Model |
Element content (mass fraction%) |
|||||||||||
C |
N |
O |
H |
Fe |
Si |
Ni |
Ti |
Mo |
W |
Nb |
Ta |
|
Ta1 |
0.01 |
0.005 |
0.015 |
0.0015 |
0.005 |
0.005 |
0.002 |
0.002 |
0.01 |
0.01 |
0.05 |
|
Ta2 |
0.02 |
0.025 |
0.03 |
0.005 |
0.03 |
0.02 |
0.005 |
0.005 |
0.03 |
0.04 |
0.1 |
|
TaNb3 |
0.02 |
0.025 |
0.03 |
0.005 |
0.03 |
0.03 |
0.005 |
0.005 |
0.03 |
0.04 |
1.5~3.5 |
|
TaNb20 |
0.02 |
0.025 |
0.03 |
0.005 |
0.03 |
0.03 |
0.005 |
0.005 |
0.02 |
0.04 |
17~23 |
|
TaNb40 |
0.01 |
0.01 |
0.02 |
0.0015 |
0.01 |
0.005 |
0.01 |
0.01 |
0.02 |
0.05 |
35~42 |
|
TaW2.5 |
0.01 |
0.01 |
0.015 |
0.0015 |
0.01 |
0.005 |
0.01 |
0.01 |
0.02 |
2.0~3.5 |
0.5 |
|
TaW7.5 |
0.01 |
0.01 |
0.015 |
0.0015 |
0.01 |
0.005 |
0.01 |
0.01 |
0.02 |
6.5~8.5 |
0.5 |
|
TaW10 |
0.01 |
0.01 |
0.015 |
0.0015 |
0.01 |
0.005 |
0.01 |
0.01 |
0.02 |
9.0~11 |
0.1 |
|
