Electrode Tantalum Wire Mesh
US$ 10 - 15
MOQ: 30 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Material:
Black Wire Mesh
Type:
Reinforced Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Niobium Seamed Pipe,Niobium Seamless Pipe,Niobium PipeUS$ 200 - 500MOQ: 1 Kilogram -
Forging Niobium Bar,polishing Niobium Bar,Niobium BarUS$ 100 - 150MOQ: 1 Kilogram
-
Niobium Wire, High Pure Niobium Wire, Superfine Niobium WireUS$ 30 - 50MOQ: 1 Kilogram
-
High Temperature Nickel Alloy Hastelloy PriceUS$ 1 - 60MOQ: 10 Kilograms
-
Ni Cr Mo Alloy C-276 DIN/EN2.4819, Nickel Base AlloyUS$ 25 - 49MOQ: 50 Kilograms
Place of Origin
Beijing, China
Material
Black Wire Mesh
Type
Reinforced Mesh
Application
Barbecue Wire Mesh
Weave Style
Twill Weave
Technique
Welded Mesh
Model Number
SYWD-100
Product Description

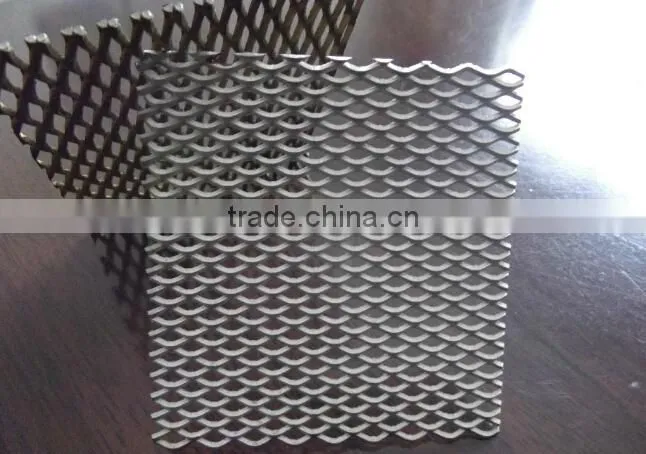

Electrode tantalum wire mesh
Tantalum wire mesh Material
- Electrical properties of tantalum wire mesh
Leakage current: ≤0.10μA / cm2
Enabling conditions: enabling solution: 0.1% H3PO4 enabling temperature: 90 ± 2 ℃
Enabling current density: 5mA / cm2
Enabling voltage / time: 225V / 30min
- Specifications and dimensional tolerances
| Specifications (mm) | Diameter deviation (mm) |
| 0.06 0.10 .011 .015 | ±0.005 |
| 0.17 0.19 0.20 0.24 0.25 0.29 0.30 | ±0.006 |
| 0.33 0.34 0.35 0.381 0.4 0.47 0.50 | ±0.007 |
| 0.60 0.80 | ±0.01 |
- Mechanical Properties of tantalum wire mesh
| Status | Tensile strength Rm/(N/mm2) | Elongation A200mm/% |
| Soft state (M) | 300~750 | 10~30 |
| Semi-hard state (Y2) | 750~1250 | 1~6 |
| Hard (Y) | >1250 | 1~5 |
- Antioxidant brittleness of tantalum wire mesh
| Model | Diameter D/mm | Antioxidant brittleness number of bending |
| Ta1(Pure) | 0.10~0.40 | 3 |
| >0.40 | 4 | |
| Ta2 | 0.10~0.40 | 4 |
| >0.40 | 6 |
