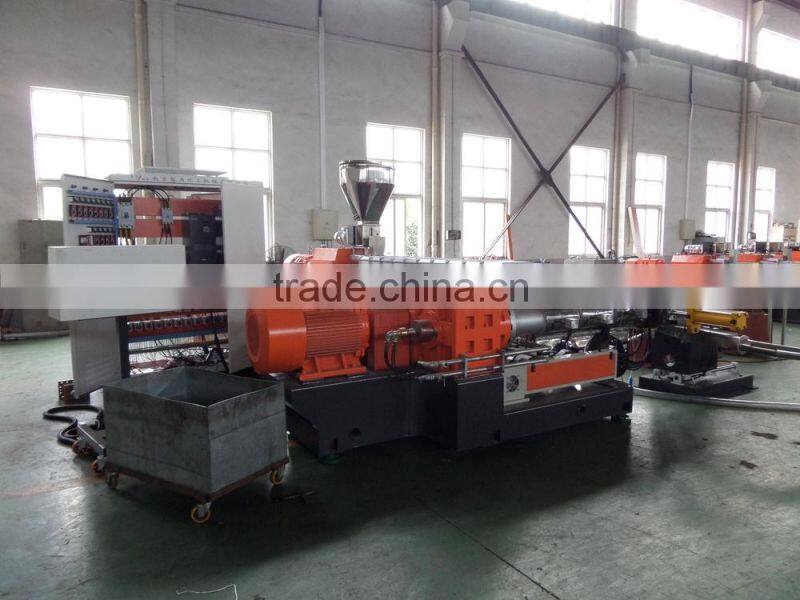

Black masterbatch pelletizing line
1.Technical Data:
1). Application: Carbon black masterbatches etc.
2). Output: 200-300 kg/h (depends on different formulas)
3). Motor: 90/37KW
4). L/D: 40/11
5). Configuration: SHJ series twin screw extruder host machine, SJ series single screw extruder host machine,
oil lubrication system, soft water circulation system, vacuum system, hydraulic screen changer and die,

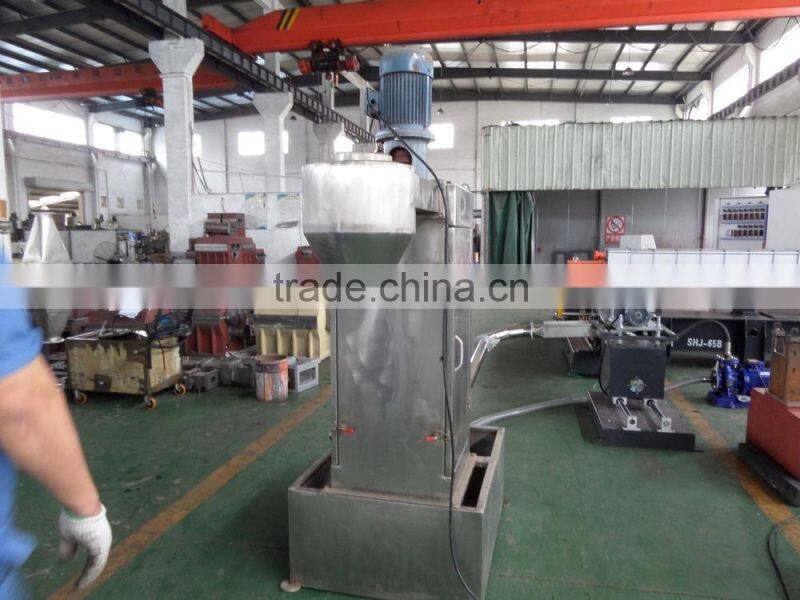

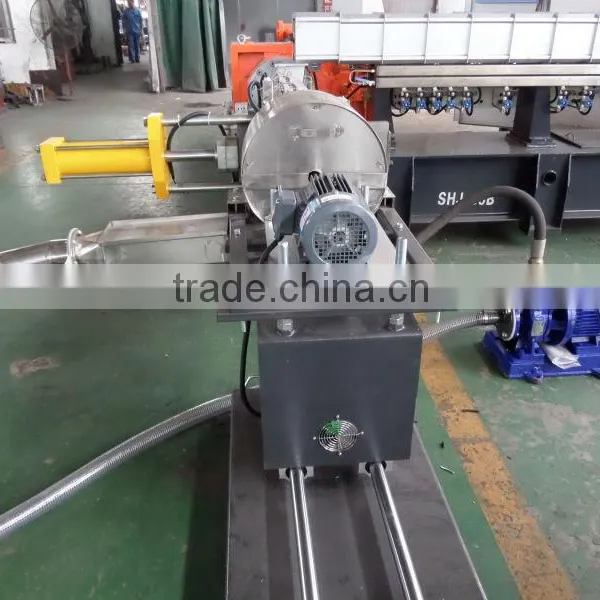

water-cooling die face pelletizing system.
6). Auxiliary machines: side feeder (one/two stage side feeder), spiral conveyor, high speed mixer, vibrating sieve,
product silo, automatic packing and sewing system etc.
Specification and Model |
D (mm) |
L/D |
RPM (max) |
Power (KW) |
Output (kg/h) |
|
SHJS65-150 |
SHJ-65 |
62.4 |
24-48 |
400-500 |
55-75 |
200-500 |
SJ150 |
150 |
7-20 |
65-85 |
37-45 |
||

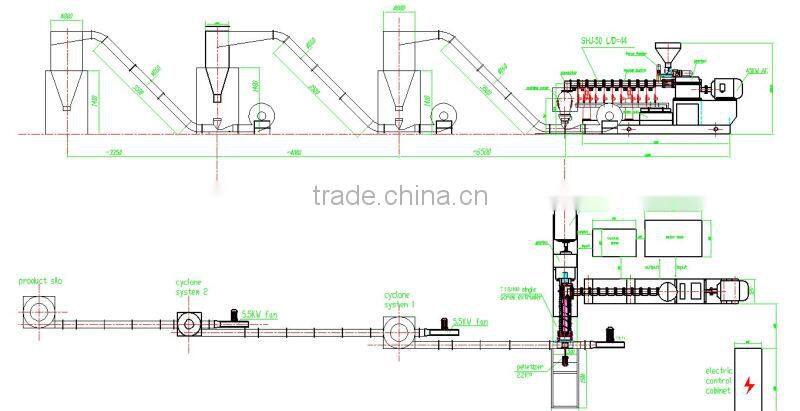

2. Layout Drawing:

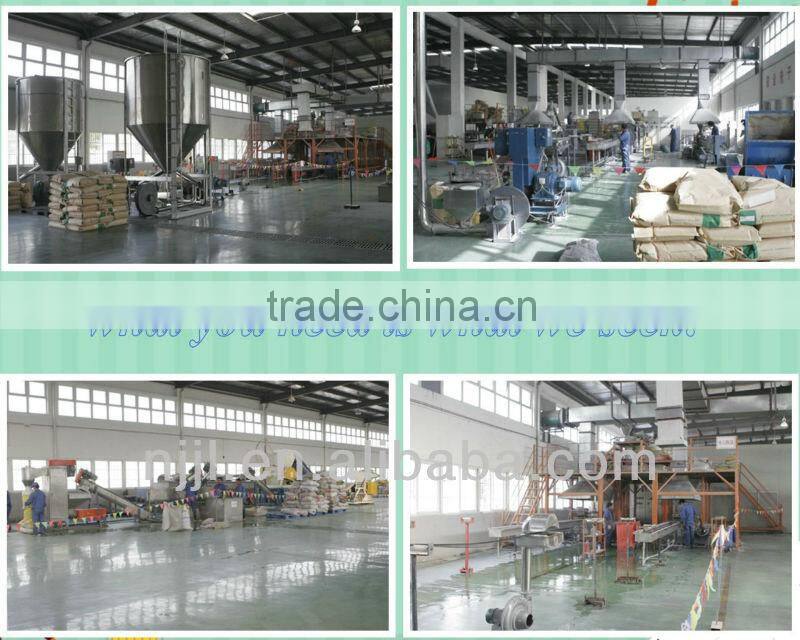

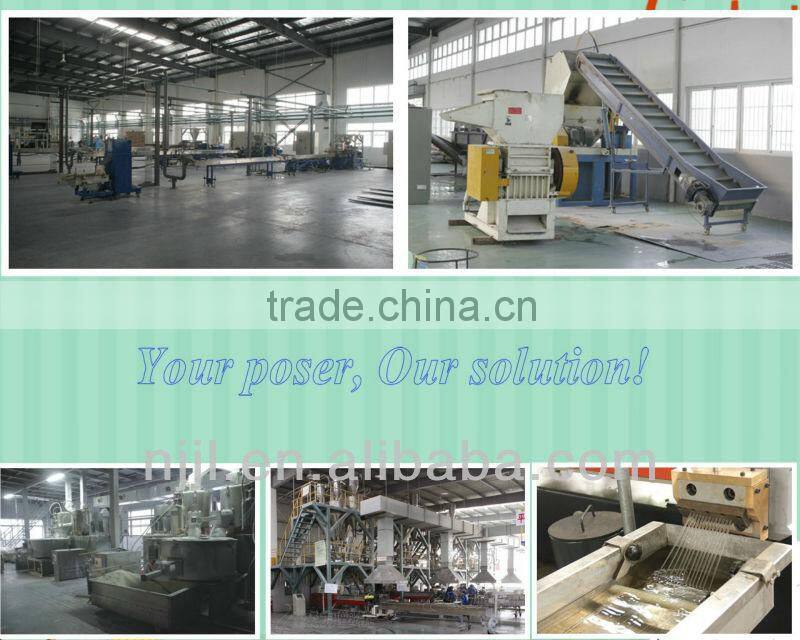

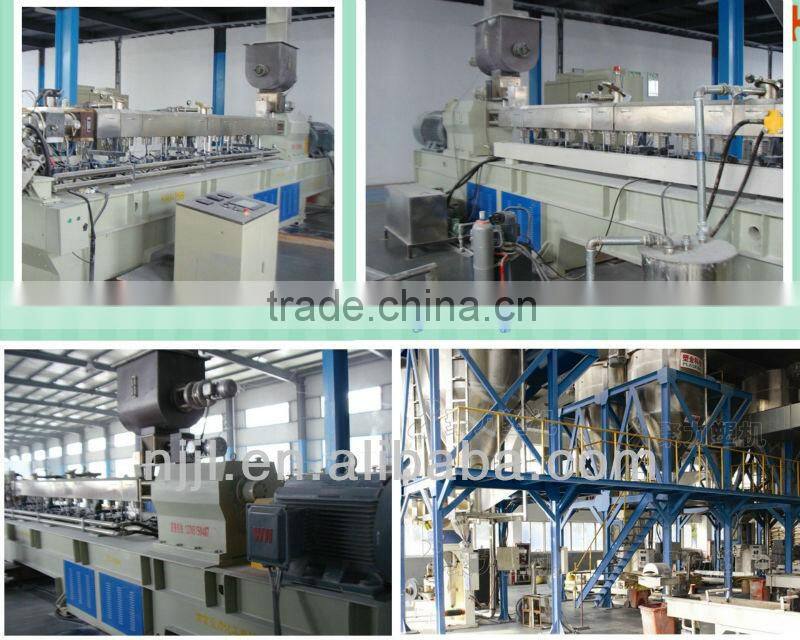

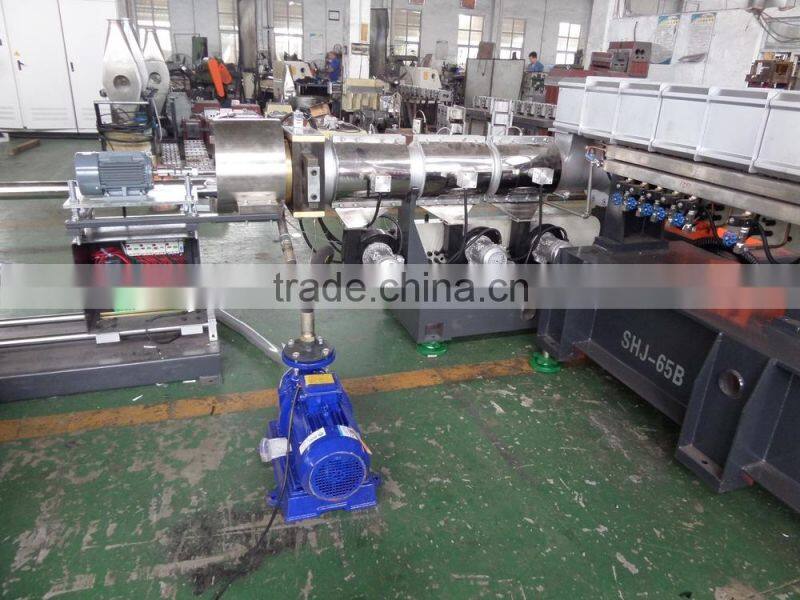

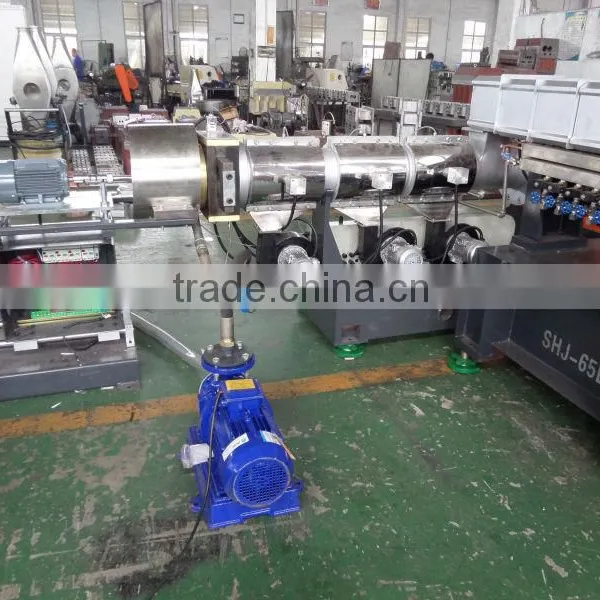

4. At customer factory

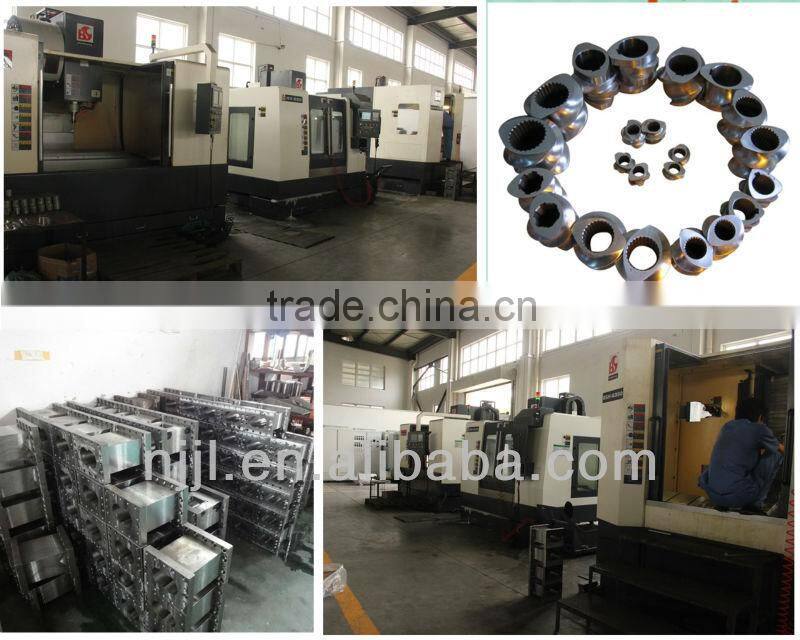

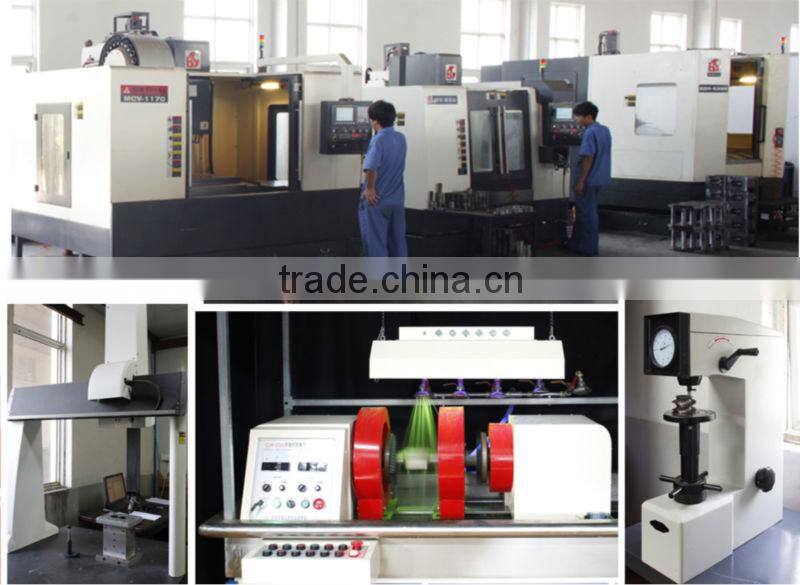

5. CNC and Quality Control
6. Certificates:
7. Contact me
8. Commercial Term
l Negotiation
- About formula, machine configuration, price (payment term), delivery term, service term
- Lab extruder available for testing
l During fabrication
- Machine layout drawing
- Processing status
l After-sale
- Installation, debugging and training service
- Long-term technical support
