Medical Device Cast Removel, Electronic Plaster/ Cast Saw

Medical Device Cast Removel, Electronic Plaster/ Cast Saw thumbnail-1
Medical Device Cast Removel, Electronic Plaster/ Cast Saw thumbnail-2
Medical Device Cast Removel, Electronic Plaster/ Cast Saw thumbnail-3
Medical Device Cast Removel, Electronic Plaster/ Cast Saw photo-1
Medical Device Cast Removel, Electronic Plaster/ Cast Saw photo-2
Medical Device Cast Removel, Electronic Plaster/ Cast Saw photo-3
US$ 170 - 300 MOQ: 200 Sets
Key Specifications
Get Latest Price
Properties:
Orthopedic Surgical Instruments
Type:
Saw
Brand Name:
Ansen
Contact Supplier Request Quote Chat Now
Shaanxi Ansen Medical Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Orthopedic Surgical Instruments
Type Saw
Brand Name Ansen
Model Number ASGJ-II
Place of Origin Shaanxi, China



Medical Device  Casting Tape Bandage Removel Electronic Plaster/ Cast  Saw





1: Composition and Application



Electric plaster/cast saw is the new generation product designed and researched according to the clinical operation experience. The motor adopts double insulation protection device and guarantees the safety of operators and the wounded.It's composedof electric reducer motor, main drive gear, bearing, grease seal, gearbox, anchor screw, stop nuts, protective shrapnel, protective plate, protective seat, protective cap, blade, switc,24V power adapter, etc.The product features strong motive power, smart design, stable operation, small vibration, low noise, safety and reliability.It is mainly used in demolishing the orthopedic casting tape or plaster bandage and any kinds of medical bandage resetting or renoving.



 Medical Device cast removel, Electronic Plaster/ Cast Saw



II: System and features:



Ansen electric plaster/ castsaw operation is based on the running of reducer motor be pushed by 24V power



adapter. It can realize removing the plaster or casting tape directly without using scissor. During theoperation,



protective plate can protect patient from hurt by blade.



  l  Simple Operation



  l High-speed saw blade vibration system



  l Cut all kinds of bandages



  l Adopt import motor, powerful, quickly cutting and reliable.



  l High efficiency and safety during operation



  l It uses high-speed saw blade vibration system.



  l It will not scrach the skin for the blade rolls from left to right with the amplitude of 5.6



  l Power Voltage: 110V or 220V / 50Hz;



III: Work condition and technical parameter



  1. Normal work condition



l Power Voltage: 110V or 220V / 50Hz;



l Input Power: 115VA



l Maximum swing times: 12750-17250 times/min



l Swing angle of the plaster saw: 60±10



l Whole machine weight:575g;



l Overall dimensions: 260*60*53mm







  2. Basic parameter (No-load)





a) Rotate speed: 260prm



b) No- load noise≤ 85dB (A)



c) No-load heat up: Below 15 ℃ with 3 minutes running





IV: Operation instruction



 1. Check whether the saw teeth broken or correctly installed before using.



 2. Unload the protective plate before assembling the blade. Testing the machine, through the noise and rotated



    condition adjust the nuts tightness until machine running normally.



 3. Disinfect the blade before cutting.



 4. Hold the saw tightly and make the saw protective plate inside plaster bandage, and put the protective shrapnel



    open slowly. Press the switch button and push the saw go  ahead until plaster be opened.



 5. When the blade work does not efficiently, turn to another side, the operation as first assembly; Notify that do not

    exchange the internal and external ones.



  Medical Device cast removel, Electronic Plaster/ Cast Saw Medical Device cast removel, Electronic Plaster/ Cast Saw

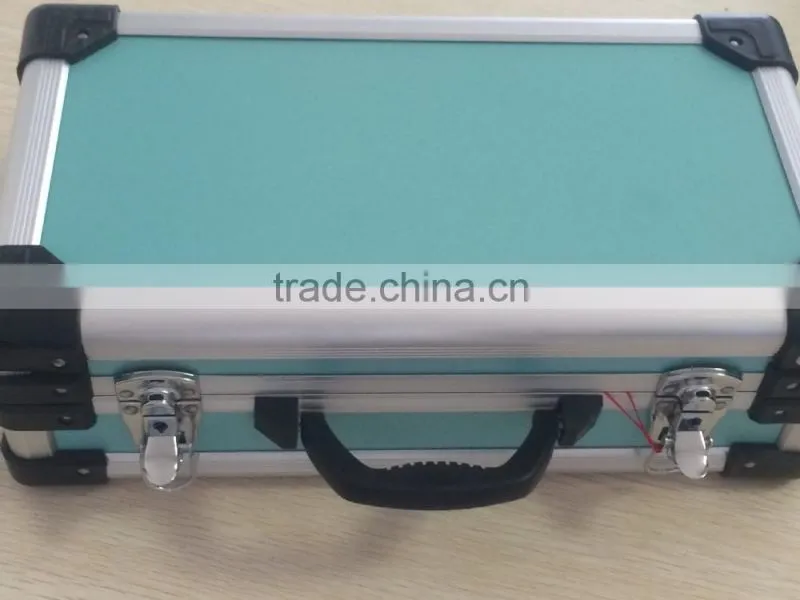

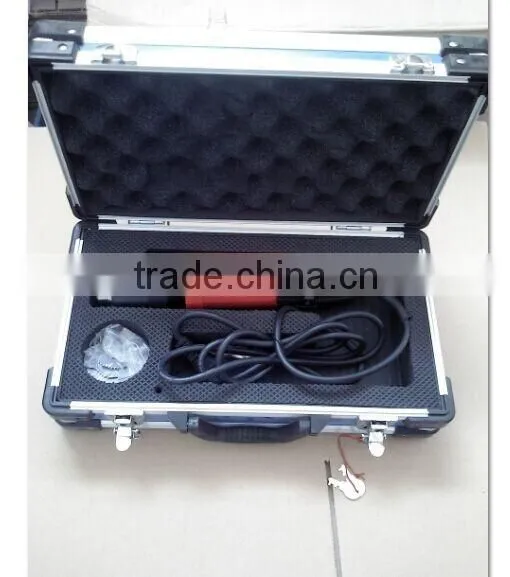

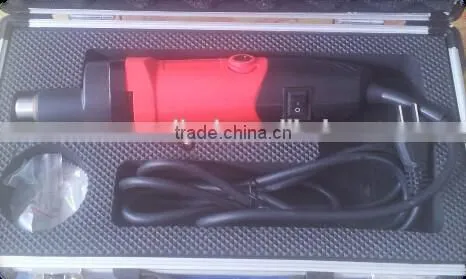

V: Packing & Shipping




No.

Name

Specifications

Quantity

Remark

1

Electric cast saw

100~240V

1



2

    Wrench

          --

1



3

Operating manual

          --

1



            4

    Certificate

          --

1



5

   Plastic case

          --

1





 Medical Device cast removel, Electronic Plaster/ Cast SawMedical Device cast removel, Electronic Plaster/ Cast Saw



 Medical Device cast removel, Electronic Plaster/ Cast Saw



Welcome to contact us



Sales manager: Bonnie Chang



Email: bonniechang@xa-ansen.com



Tel: +86-29-85215708    Mob: +86-15934856585



Skype: yanbo.chang1



QQ: 345372851
