Kisstone Top 10 Puzzolana/limestone/granite Crusher

Kisstone top 10 puzzolana/limestone/granite crusher

Below is the full details of S series cone crusher--Model: S400D (Short-head)

High quality and lower price

Low operation & maintenance cost

large production capacity

uniform granularity, good product shape

Durable wearing parts

Reliable (Excellent) performance, easy operation

 Recommend Level:

Applications:

S series cone crusher is suitable to crush various kinds of ores and rocks of medium or above hardness such as iron ores, copper ores, limestone, quartz, granite, etc. which is widely applied in metallurgical industry, building industry, road construction industry, chemical industry.

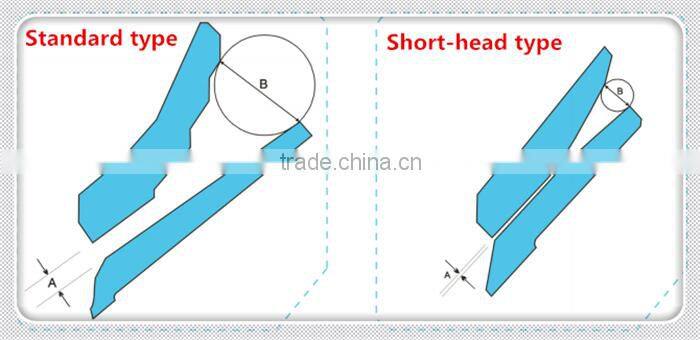

It divided into two types: Standard type & Short-head type, and every type have different sizes and different crushing Chamber types which can allows users to choose it according to the on-site situation.

1. Many different types of crushing chamber.

The special design of S series cone crusher allows users to choose the crushing chamber type with high efficiency, uniform granularity, good stone shape, even wear of rolling mortar wall and broken wall as well as long lifespan according to the on-site situation.

2. After optimized design, the production capacity becomes higher.

Compared with other models, the S series spring cone crusher has longer slope arm, larger stroke and stronger crushing force, which can crush the materials in the crushing chamber more efficiently.

3. Dry oil seal for dust prevention.

The dust-proof structure of S series spring cone crusher is special, whose seal effect is reliable and prolongs the replacement period of the lubricating oil and the lifespan of the parts.

4. Automatic electric refrigeration and heating system provides stable operating condition for the equipment in whatever weather.

5. Automatic oil temperature and oil pressure sensing system realize the self-lock and halt in accidents.

6. Low daily operation and maintenance cost.

Note: Production capacity base on bulk density 1.6t/m³

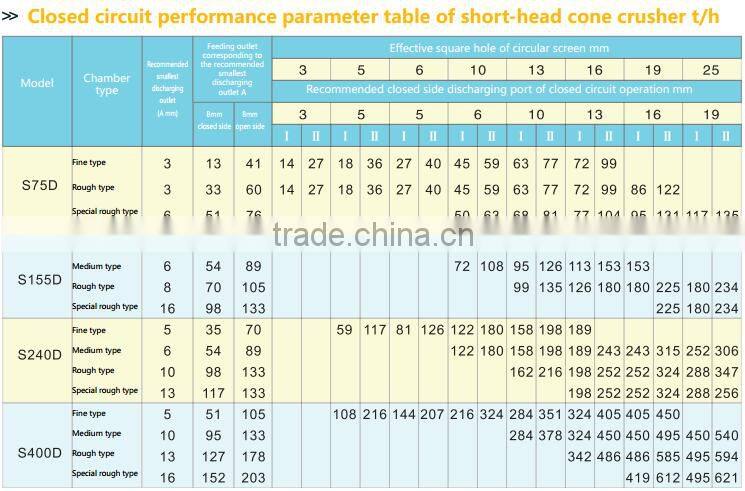

Note: 1. Production capacity base on bulk density 1.6t/m³; 2. I-Net finished product(under screen); 3. II-Tonnage through crusher per hour(net finished product plus circulate load).

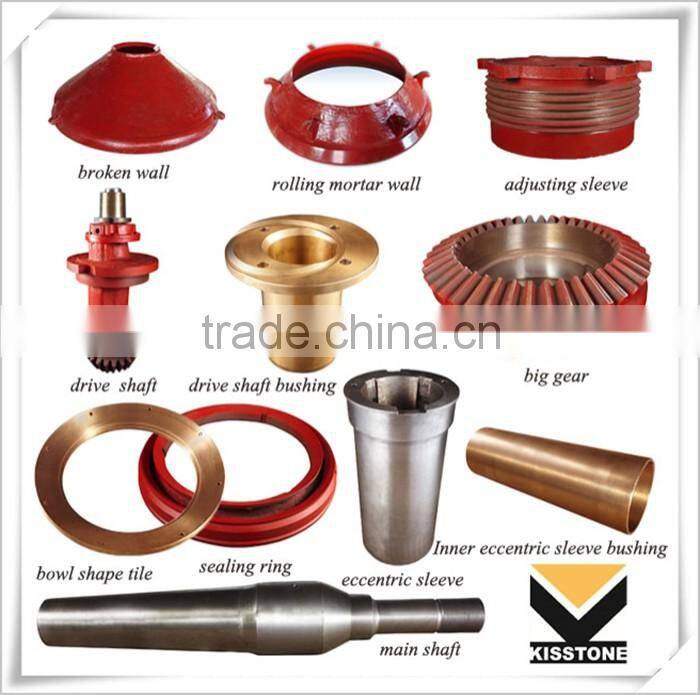

Spare parts of S series cone crusher:

We have our independent production and casting base, modern metal cutting and processing equipment with advanced Solid Works 3D mechanical design system and simulation test system. Our products are durable and wear-resistant which bring the customers lower cost and long working life.

Certifications:

Freely provide project designing, process designing, choosing suitable equipment for you.

Medium-sales service:

After we signed the purchase contract, we will provide you the perfect goods trading services, until the product you purchased properly to your hands.

After-sales Services:

We will send a professional and high levels installation engineer team to the scene to guide installation, debugging and training operators.

Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we own consummate after sales service, technical support and full spare parts supply, which will keep the equipments and system in a good working condition.

You might like mining equipment:

Click on the picture to enter relevant crusher equipment.

Q: How long is the warranty of your equipments? Does your company supply the spare parts?

A: The warranty period of Kisstone equipments is one year, so any questions, please contact us freely by 24 hours. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: How about the quality of your products?

A: 1. Our crusher manufactured strictly according to national and international standard.

2. We adopt highly inspecting equipments in every working procedure, make test-run and check all the parts before machine leaving our factory, to provide you the best goods.

Q: Will you accept factory inspection?

A: Yes, of course. You are greatly welcome to visit our factory for you own inspection.

Q: What could you help me to do for the business?

A: Many thanks for your trust, we can provide you with proposal chart for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments and combine a complete mineral processing line, and give you related professional advices as long as you need. We also can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment.

Attention Please:

In order to recommend suitable design for you, please kindly let me know:

1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?

2. What is the maximum feed size of your raw material?

3. What are output sizes you want? Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.

4. What is capacity you want? How many ton per hour?

5. Do you just need the crusher or a whole crushing line(include the feeder, vibrating screens, conveyors and so on)?
