Guangzhou KISSTONE cone crusher lubrication system
OVERVIEW
S Series cone crushers were built for decades of reliable service. Adopts Symons technology,the design was as simple as possible with features that were user friendly, and craftsmen with many years of experience built the frames and components for ruggedness and durability with American steel and pride in their work. Because of this, S Series cone crushers enjoy a worldwide reputation as rugged, durable, easy to maintain, and reliable. Now there is a conversion kit to combine all the features that made them so rugged and reliable, with more modern features to increase production and automation.
Features
1. High-performance
2. Good products size composition
3. Good stability
4. Convenient Cleaning-up
5. High reliability
6. Easy maintenance and operation
7. Low production costs
8. Widespread use
Purpose and Application Scope
S series high-efficiency cone crusher is widely used to crush metallic minerals and nonmetallic minerals, cement, construction aggregate, sand and metallurgy. Mineral can be crushed are iron ore, nonferrous metal ore, ganite, quartzite, dinas, river stone, etc.
Superior performance
1. Larger capacity, higher performance
2. Perfect product size
3. Stability trustworthy
4. More cavity type choosing available
Specifiation
Standard type
| Model | Cavity | Min.Discharge size(mm) | Feeding opening | Capacity(t/h) Corresponding discharge size(mm) | Power | |||||||||||||
Closing side(mm) | Open side(mm) | 9 | 13 | 16 | 19 | 22 | 25 | 31 | 38 | 51 | 64 | 76 | 89 | 102 | ||||
| S155B | Fine | 13 | 109 | 137 | 109 | 127 | 145 | 154 | 163 | 181 | 380V 185KW | |||||||
| Medium | 16 | 188 | 210 | 132 | 159 | 172 | 200 | 227 | 253 | 309 | ||||||||
| Coarse | 19 | 219 | 241 | 172 | 195 | 218 | 249 | 295 | 378 | |||||||||
| Extra Coarse | 25 | 238 | 259 | 236 | 276 | 324 | 398 | 455 | ||||||||||
| S240B | Fine | 15 | 188 | 209 | 181 | 204 | 227 | 258 | 295 | 327 | 380V 240KW | |||||||
| Medium | 22 | 213 | 241 | 258 | 290 | 336 | 381 | 437 | 437 | |||||||||
| Coarse | 25 | 241 | 269 | 354 | 417 | 454 | 610 | 610 | ||||||||||
| Extra Coarse | 38 | 331 | 368 | 538 | 630 | 743 | ||||||||||||
| S400B | Fine | 19 | 253 | 278 | 381 | 408 | 499 | 617 | 726 | 852 | 1036 | 380V 400KW | ||||||
| Medium | 25 | 303 | 334 | 608 | 726 | 807 | 998 | 1128 | 1296 | |||||||||
| Coarse | 31 | 334 | 369 | 789 | 844 | 1088 | 1257 | 1386 | 1450 | |||||||||
| Extra Coarse | 38 | 425 | 460 | 880 | 1179 | 1361 | 1473 | 1531 | 1643 | |||||||||

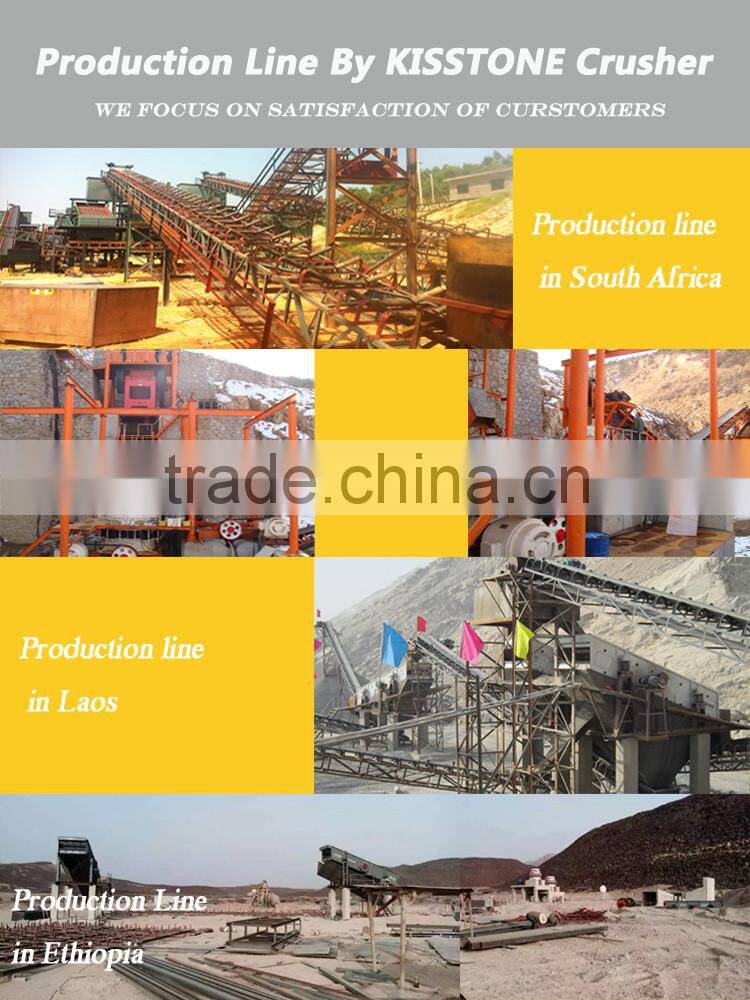

Cone Crushers on site
Guangzhou Kisstone import and Export Co.,Ltd. is Kisstone Group subordinates are mainly for foreign import and export business of the subsidiary,the group id specialized in mine crushing equipment,screening equipment,screening equipment and transportation equipment R&D,manufacturing and sales for the integrated enterprise backbone, as well as the main mining equipment production and export base in South of China.
Our group has own production base and independent casting base,modern metal cutting and processing equipment,equipped with advanced Solid Works 3D mechanical design system and simulation test system,has a professional sales,technical and service teams and establish more than 180 professional design,installation and on-site operations management team,for customers to provide complete sets of equipment solutions,turn key project.
1. We are online 24 hours on working days.
2. One team of Engineers for solution of products.
3. Stock of spare parts.
4. Strict inspection making before delivery.
5. Punctual shipment time and good after-sales service will be guaranteed.
6. Project designing, process designing, choosing suitable equipment be provided freely..
7. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export crusher
8. Engineers be sent to the scene to guide installation, debugging and training operators if necessary.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and the production base located in Guangzhou City with 10 years experience.
Q. Payments terms?
A: T/T, L/C, D/P,
Q. What is the delivery time?
A: 15 working days except the special order.
Q. Warranty
A:1 year for warranty, Wearing parts and the problems by improper operation is not included.
Q. Can you provide the suitable equipment?
A:Yes, of course. Plz provide the following info for making the program.
1. The produce capacity (tons for per hour)
2. The Max. Feeding size
3. The output size
4. Material for the Stone (hard of soft)
