GS Series High Efficiency Hydraulic Cone Crusher

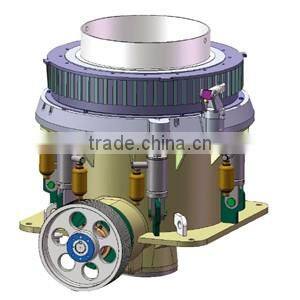

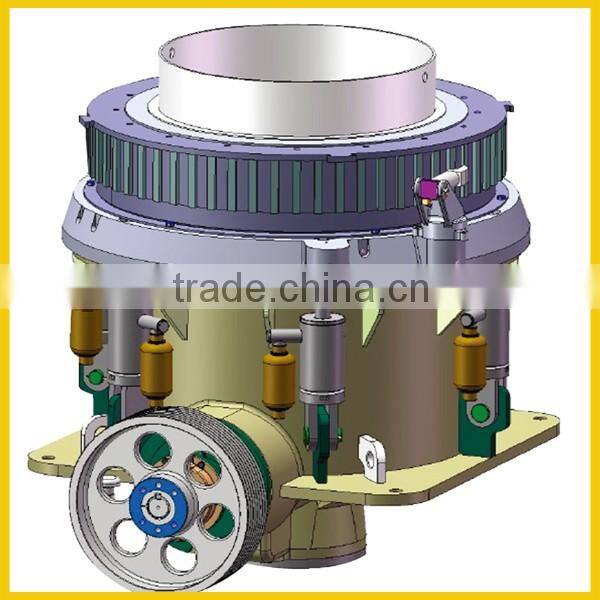

*Product Display*

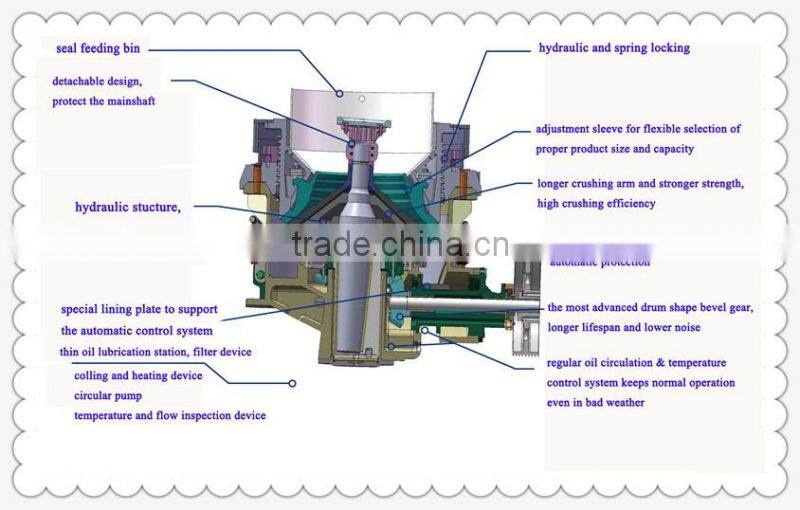

*Why GS Series Hydraulic Cone Crusher is One of the Best Cone Crushers in the World?*
v Standard Type
| Model |
Chamber type |
Min Discharge Size(mm) |
Max Feeding Size(mm) |
Power (kw) |
Capacity(t/h) |
Weight (Kg) |
|||||||||||||
| Corresponding discharge size(mm) | |||||||||||||||||||
| closed side | opening side | 9 | 13 | 16 | 19 | 22 | 25 | 31 | 38 | 51 | 64 | 76 | 89 | 102 | |||||
| GS110B | F | 9 | 83 | 102 | 90 | 50 | 65 | 80 | 90 | 100 | 13660 | ||||||||
| C | 13 | 159 | 175 | 90 | 65 | 80 | 100 | 120 | 129 | 149 | 149 | 13660 | |||||||
| EC | 25 | 163 | 178 | 90 | 141 | 161 | 192 | 215 | 13660 | ||||||||||
| GS220B | F | 13 | 109 | 137 | 185 | 120 | 140 | 160 | 170 | 179 | 199 | 27300 | |||||||
| M | 16 | 188 | 210 | 185 | 145 | 175 | 189 | 220 | 250 | 278 | 340 | 27300 | |||||||
| C | 19 | 216 | 241 | 185 | 189 | 215 | 240 | 274 | 325 | 416 | 27300 | ||||||||
| EC | 25 | 238 | 259 | 185 | 260 | 304 | 356 | 438 | 501 | 27300 | |||||||||
| GS330B | F | 15 | 188 | 209 | 250 | 199 | 224 | 250 | 284 | 345 | 360 | 51500 | |||||||
| M | 22 | 213 | 241 | 250 | 384 | 319 | 370 | 419 | 481 | 481 | 51500 | ||||||||
| C | 25 | 241 | 269 | 250 | 389 | 459 | 499 | 671 | 671 | 51500 | |||||||||
| EC | 38 | 331 | 368 | 250 | 592 | 693 | 817 | 51500 | |||||||||||
| GS550B | F | 19 | 253 | 278 | 400 | 419 | 449 | 549 | 679 | 799 | 937 | 1140 | 103750 | ||||||
| M | 25 | 303 | 334 | 400 | 669 | 799 | 888 | 1099 | 1241 | 1426 | 103750 | ||||||||
| C | 31 | 334 | 369 | 400 | 868 | 928 | 1197 | 1383 | 1525 | 1595 | 103750 | ||||||||
| EC | 38 | 425 | 460 | 400 | 968 | 1297 | 1497 | 1620 | 1684 | 1807 | 103750 | ||||||||
Note:EC=Extra Coarse, C=Coarse, M=Medium, F=Fine EF=Extra Fine. | |||||||||||||||||||
vShort-head Type
| Model |
Chamber type |
Min Discharge Size(mm) |
Max Feeding Size(mm) |
Power (kw) |
Capacity(t/h) |
Weight (Kg) |
|||||||||||
| Corresponding discharge size(mm) | |||||||||||||||||
| closed side | opening side | 3 | 5 | 6 | 10 | 13 | 16 | 19 | 25 | 29 | 32 | 38 | |||||
| GS110D | F | 3 | 13 | 41 | 90 | 30 | 45 | 59 | 75 | 99 | 13660 | ||||||
| C | 3 | 33 | 60 | 90 | 30 | 45 | 59 | 75 | 99 | 110 | 13660 | ||||||
| EC | 6 | 51 | 76 | 90 | 65 | 80 | 95 | 105 | 124 | 140 | 13660 | ||||||
| GS220D | F | 3 | 29 | 64 | 185 | 40 | 65 | 90 | 114 | 150 | 179 | 27300 | |||||
| M | 6 | 54 | 89 | 185 | 90 | 114 | 150 | 179 | 27300 | ||||||||
| C | 8 | 70 | 105 | 185 | 120 | 175 | 199 | 220 | 250 | 27300 | |||||||
| EC | 16 | 98 | 133 | 185 | 230 | 260 | 27300 | ||||||||||
| GS300D | F | 5 | 35 | 70 | 250 | 99 | 150 | 150 | 230 | 51500 | |||||||
| M | 6 | 54 | 89 | 250 | 150 | 150 | 230 | 278 | 309 | 51500 | |||||||
| C | 10 | 98 | 133 | 250 | 209 | 278 | 309 | 339 | 370 | 51500 | |||||||
| EC | 13 | 117 | 133 | 250 | 278 | 309 | 339 | 370 | 51500 | ||||||||
| GS550D | F | 5 | 51 | 105 | 400 | 209 | 197 | 380 | 396 | 499 | 523 | 563 | 103750 | ||||
| M | 10 | 95 | 133 | 400 | 389 | 449 | 499 | 559 | 616 | 674 | 103750 | ||||||
| C | 13 | 127 | 178 | 400 | 499 | 528 | 594 | 659 | 727 | 754 | 103750 | ||||||
| EC | 16 | 152 | 203 | 400 | 559 | 649 | 718 | 748 | 762 | 792 | 103750 | ||||||
Note:EC=Extra Coarse, C=Coarse, M=Medium, F=Fine EF=Extra Fine. | |||||||||||||||||
*Special Customized Service*
We own a professional technical and design team to offer a proposal of the product line based on your specific situation and bring you the maximal economic benefit with minimum cost. :)
*Product Line Cases*
*One-station Service*
1. How long is the warranty period of the product?
One year. If there is any problem, please feel free to contact us and we will do whatever we can to help you as soon as possible.
2. I am from Africa. I have difficulty in currency exchange and the custom issue.
No worry. We have our local company there and can help you solve them easily.
3. Do you accept factory visiting?
Sure. Welcome to our factory anytime!
4. Do you provide spare parts?
Yes, we provide all spare parts of the machine and we accept customized ones upon customers’ requirement.
