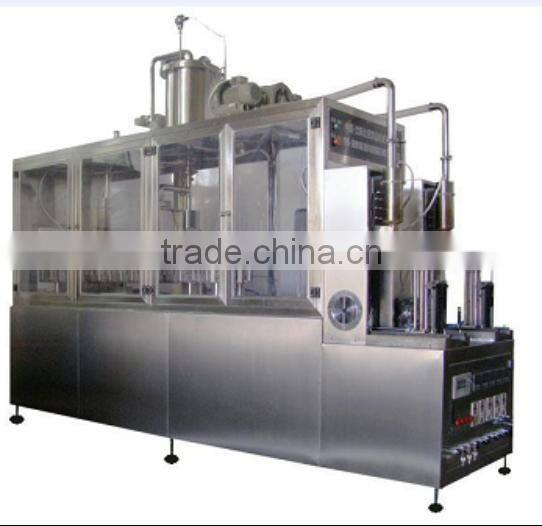

BZ-1200 type brick carton packaging machine is a form of north China enterprise according to the characteristics and the specific situation of the market, the specialized research the small brick form paper boxes filling equipment, this equipment cover small area, low energy consumption, simple operation, easy maintenance, the price is low, fit for small and medium-sized enterprise or output is not high enterprise producing high-grade of ideal equipment product package.
1 equipment technological process:

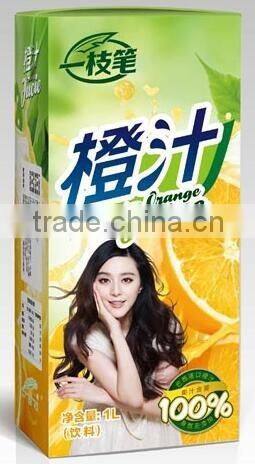

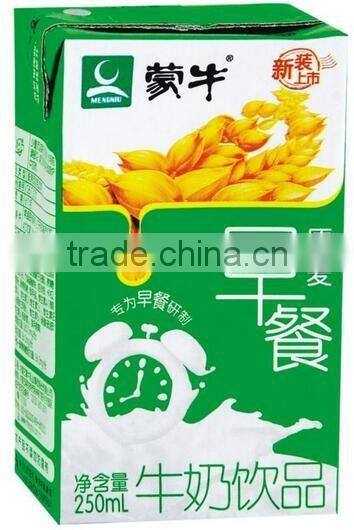

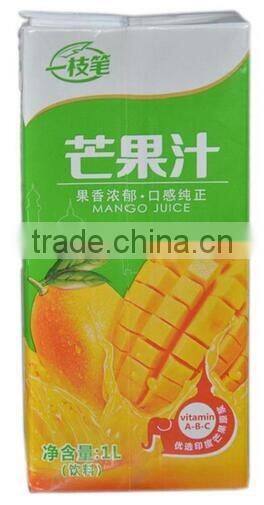

Brick of paper box →Put the cardboard onto the mandrel(manually)→bottom heating and sealing→filling →Artificial stick capping →brick carton box products
The operation of the filling machine is automatically controlled by computer program, and others are controlled by electric apparatus
2 Suitable for filling:
Fruit juice drink, fruit vinegar drinks, grain drink, tea drink, thin cream, pure milk, soy milk, yogurt, beverage fermented, seasoning , alcohol, chemical liquid products, etc.
3. Technical parameter:
The whole progress is controlled by PLC, needs 3 persons to operate.
Capacity: 200—250 ml (can be filled by one machine)
Output: 1000-1200 cartons/hour
Packing material: brick carton carboard
(Carton bottom size 57*57mm, 70*70mm, 95*95mm, one size for one machine)
Overall power: 16KW (three phases of electricity)
Size: (L*W*H): 3.1*0.8*2.6 meter
Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 0.8-1.0M3/min, without oil, water and dust
Cooling water:Flow volume:≥20L/ min Temperature: normal temperature
Net Weight: 1100kg
Installation requirement: Smooth floor: cement, floor tile, plastic ground, etc. Do not need to make angle.
The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.
4. Major spare parts of the machine:
1 |
The entire machine is made of food-grade stainless steel (exclude the support), and the surface is special processed to be beautiful. |
|
2 |
PLC |
Japanese Panasonic |
3 |
Text displayer |
Shenzhen Renji |
4 |
Pipeline solenoid valve |
German FESTO |
5 |
Pneumatic component |
Taiwan AIRTAC |
6 |
Cylinder |
Taiwan AIRTAC |
7 |
photoelectric sensor |
American Kaikelong |
5. services:
Offer updated technical information on dairy, beverage, food, etc. to customers.
6. Quotation and information
Name |
Model |
Packing size |
remarks |
|
Brick carton filling machine |
BZ-1200 |
|
3400*1100*1900mm |
200ml /250ml /350ml |
wooden case or according to your requirement
1. extensive production experiences more than 20 years
2. largest manufacture factory in Henan
3. professional design team
4. You can contact me any time
5. high quality and competitive price
6. our products sell well to Middle East, Russia, Africa, South America, and so on
7. good after-sale
