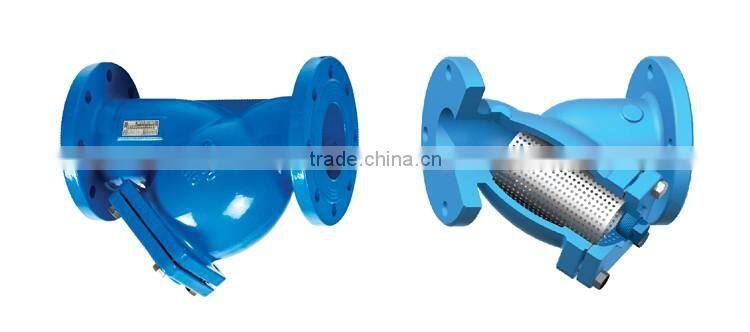

Cast Iron DIN Y Strainer with CE Certificate
Brief Introduction
Flanged strainers are main parts of all kinds of pumps, valves in the pipeline. It is suitable for pipeline of
nominal pressure ≤1.6Mpa. Mainly used to filter dirt, rust and other debris in media such as steam, air and water etc.
Material of main parts
| Parts | Material |
| Body | Cast Iron |
| Bonnet | Cast Iron |
| Filtering Net | Stainless steel |
Main Specifications
| Nominal DiameterDN(mm) | 40-600 |
| Norminal pressure(MPa) | 1.6 |
| Suitable temperature ℃ | 120 |
| Suitable Media | Water, Oil, Gas etc |
| Main material | HT200 |

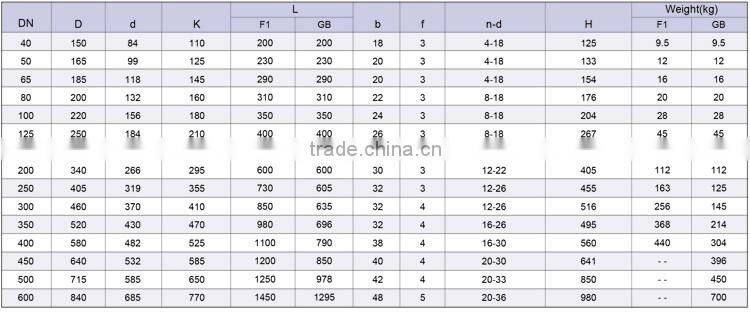

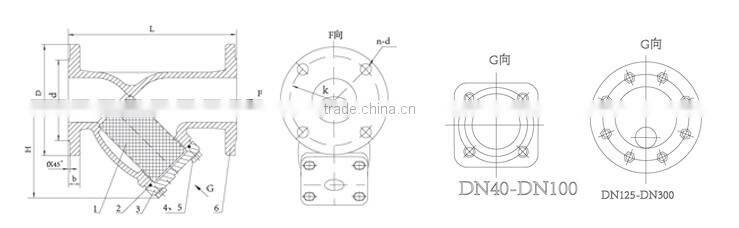

Overall & Connection Dimensions and Weights
Certification
TCS WARS DNV CE ISO etc.
View of your manufaturer
Welcome to Our Home
Application of our valves
|
|
|
|
| Wafer type butterfly valve | Lug type butterfly valve | Backflow preventer | Gate valve |
