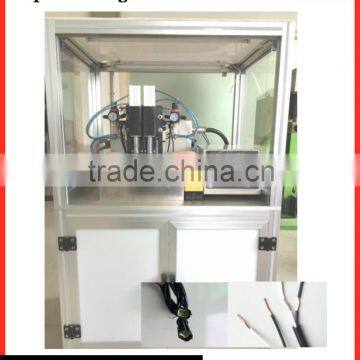

Help CenterCopper Wire Compacting Machine
Related Products
Click here to see all our product about resistance welding
- Use inverter DC power supply, high stability and precision, Current time adjustment in 1 ms. optional smaller power supply for lower price.

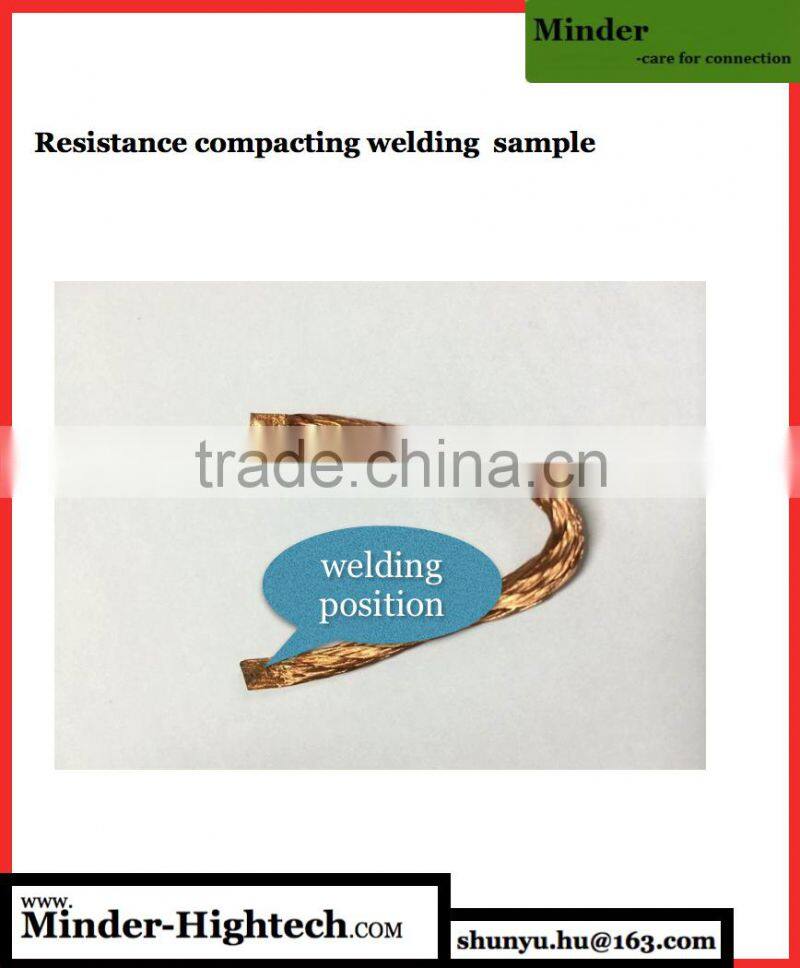

- Suitable for copper wire from 0.5mm2 to 5 mm2.

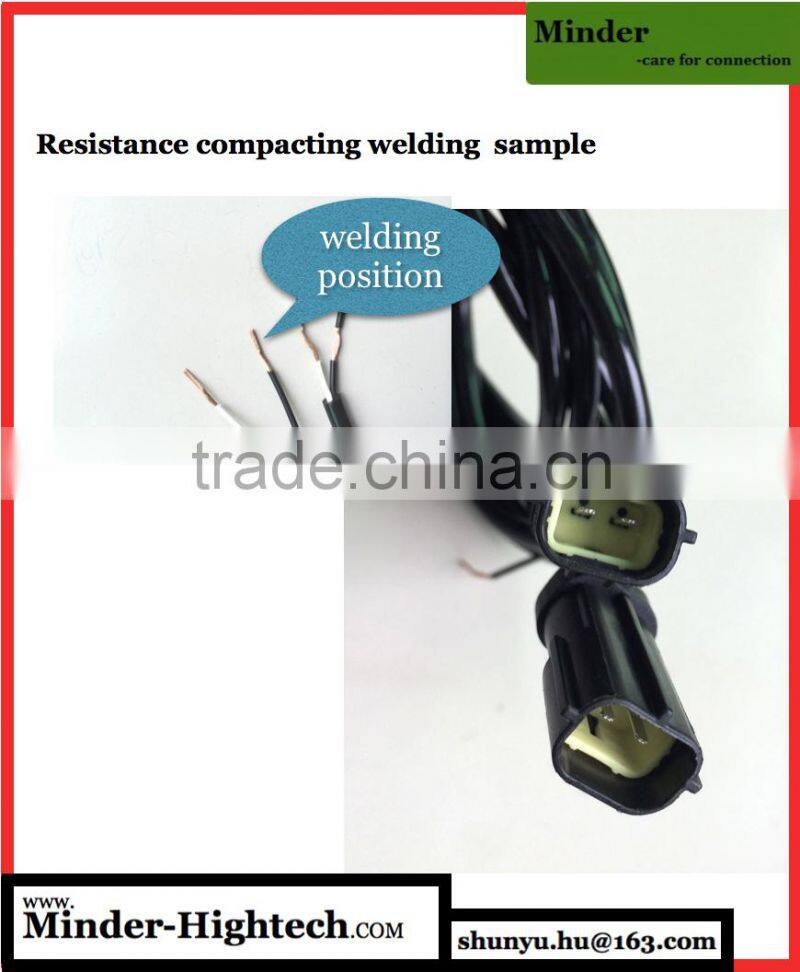

- Compacting two wires at once, improve the efficiency.
- With hand movement and automatic function.
- Special material mold, very long service life.
- Setting number of grinding electrode.
- Two hands to start working, ensure safety.
- Water cooler, lighting, emergency stop.
- Customized line slot, easily handing wires.
Model/No |
MDD-YF-10AL/AT |
Input Voltage(V) |
380*3 |
Duty cycle(%) |
20 |
Rated power(KVA) |
25 |
Max current(DCA) |
10000 |
Max force(N) |
200 |
Frequency(kHz) |
1 |
Schedule memory |
20 |
Weight(Kg) |
140 |
Dimension(L*W*H)(mm) |
800*650*1400 |
DATABASE: AS PRESENT ELECTRODE MATERIAL:
FOR 5*3.3MM ONE, NEED ABOUT 3000-8000 SHOTS TO EXCHANGE THE ELECTRODE TO MAINTAIN.
FOR 1.2*1.2MM ONE, NEED ABOUT 3000-5000 SHOTS TO EXCHANGE THE ELECTRODE TO MAINTAIN.
IF THE ELECTRODE MATERIAL IS BETTER,THE LIFE WILL BE BETTER, THE MTBF WILL BE MUCH BETTER.
ABOUT SHIPPING:
First, usually we quote an EXW price, the shipping method should be discussed. we have tried fast forward
as DHL, and have tried by air, and by land to Russia, also by sea. also we are glad to support customer's own
forwarder.
Guangzhou Minder-Hightech Co.,Ltd(MINDER-HIGHTECH CO.LIMITED HONGKONG ) is focused on connection(welding).
We are comprised by a group of high educated specialists,with the leader of overseas professor, some of us have more than 20 years welding experience,our goal is to provide high performance product but low price and exceeded service.
We care for the safety of operator, this year, we developed a safety system in spot welding industry named SOFT TOUCH system,which can prevent heavy pinch point injury.
We are specialized in most of the connection(welding) technics,the most application we have participated in are electronic component(resistance,capacitor,inductor),chip on board,automotive electronic accessories,cell phone,IC cards,motor armature commutator etc.By material, we have engaged in connecting the Aluminum, Copper, Brass, Au(gold), Platinum, Nickel, Enameled wire, etc.
We also provided the full IC package line; and LED producing line; Crystal oscillator producing line; as well as the wafer machining equipment.
Our product are classified into resistance spot welding,inverter seam welding, ultrasonic wire bonding,hot bar soldering,automatic TIN soldering,stud welding, all the product are with mature latest technology,high performance,high precision,and high reliability.
At the same time, we maintain a good relationship with the high school scientific research institution,we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.
We chose the most open and industrialized city-guangzhou-to be our base head place,to ensure the efficiency and rapidly response.
These years,we proud of our growth with the famous company such as TPT,K&S,ASM,Bosch,Miyachi,Uniteck,Avio,Apollo,LPKF etc.
