Stainless Steel Wafer Manul Butterfly Valve:
1)2"~24"
2)PN10/16
3)Flange: ANSI B 16.1, EN 1092, AS 2129
4)F/F: ANSI B 16.10

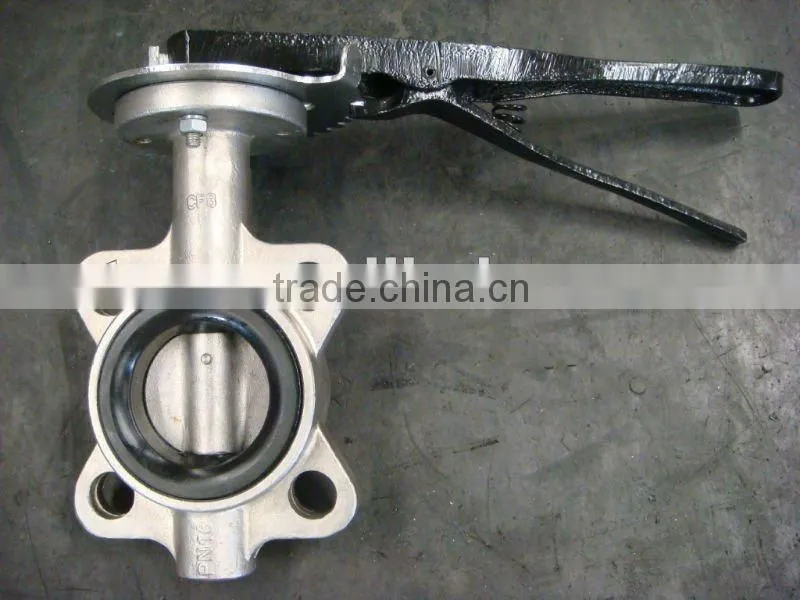

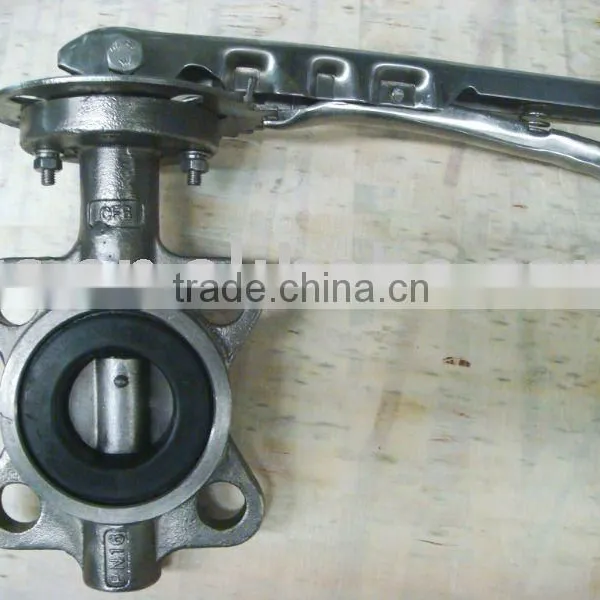

Detail Image:
Brief Introduction:
Butterfly valve is mainly consisted of body, stem, disc, seat and driver(lever, gearbox, pneumatic and electric Actuator) and so on. On off and controlling flow of valve are made by turning stem and disc together.
Detail Specification:
Stainless Steel Wafer Type Manual Butterfly Valve:
Size |
DN40-DN600 |
End flange |
ANSI B 16.1, EN 1092, AS 2129 |
Face to face |
ANSI B 16.10 |
Top flange |
ISO 5211 |
Normal pressure |
DN40-DN600 PN1.0/1.6MPa (150/200PSI) |
Body |
CI/DI/WCB/ALB/CF8/CF8M |
Disc |
DI/ALB/Rubber lined Disc/ 1.2501/CF8M/1.4529/CF8/Hastelloy |
Stem |
416/304/316/431/17-4PH |
Seat |
NR/Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE |
Taper pin |
416/316/431/17-4PH |
Bushing |
Lubrized Bronze/PTFE |
O-Ring |
NBR/EPDM |
Key |
45 1045 |
Bearing |
Bearing steel |
End Cover |
CI/WCB/CF8/CF8M |
Bolt |
Q235 Gr.33 35 1035 / 304 |
HEX Screw |
Q235 Gr.33 |
Temperature |
-45c~150c |
Feature |
Small in size, light in weight and easy maintenance, it can be used as a device to cut-off or regulate |
O-Ring |
|
Apply |
Fresh water, sewage, sea water, air, vapor, food, medicine, oils. acids, alkalis, salt etc. |
Characteristics of Product:

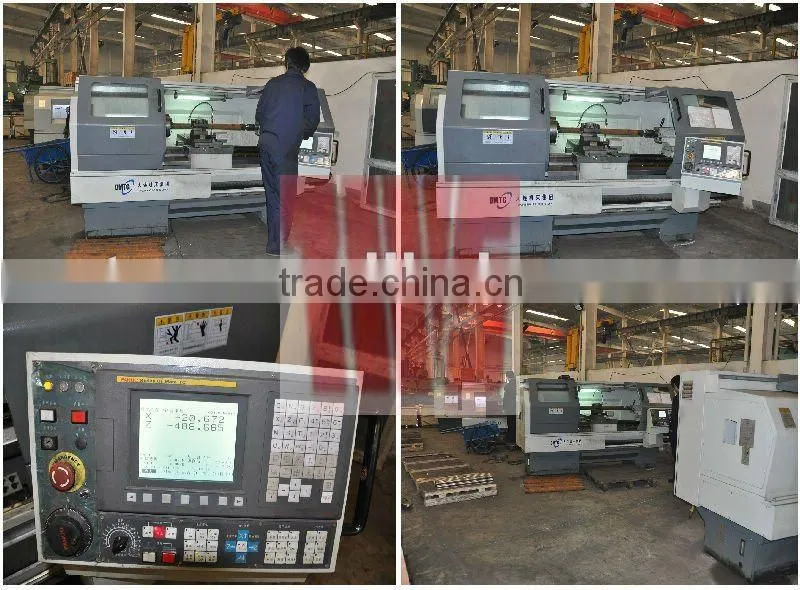

Main Facilities:
Assembling Procedure:
Certificates:
