Brief Description
As the sensor to measure temperature, assembly-type resistance thermometer is used with displayer, recorder and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from -200℃ to 420℃ directly. According to national regulation, we have manufactured PT100 platinum resistance thermometer in line of IEC international standard graduation and CU50 copper resistance in line of professional graduation since 1987.
Type |
°C Range |
Graduation |
Allowed deviation Δ°C |
WZP Platinum resistor |
-200~420 |
Pt100 |
B(0.30+0.005|t|) |
A(0.15+0.002t) | |||
WZC Copper resistance |
-150~100 |
Cu50 |
-50~100°C |
Models
W |
Temperature meter |
Z |
Resistance thermometer |
Resistor material |
P)platinum resistance C)copper resistance |
|
install and fixed type |
1)Without fixed device type 2)fixed thread type 3)movable flange 4)fixed flange type 6)fixed thread taper protect tube type |
|
junction box type |
2)splash proof type 3)waterproof type Un-standard:socket mount type,small junction box type and so on |
|
design series number |
0)ø16mm protecting tube 1)ø12mm protecting tube Un-standard:all sizes of protecting tubes |

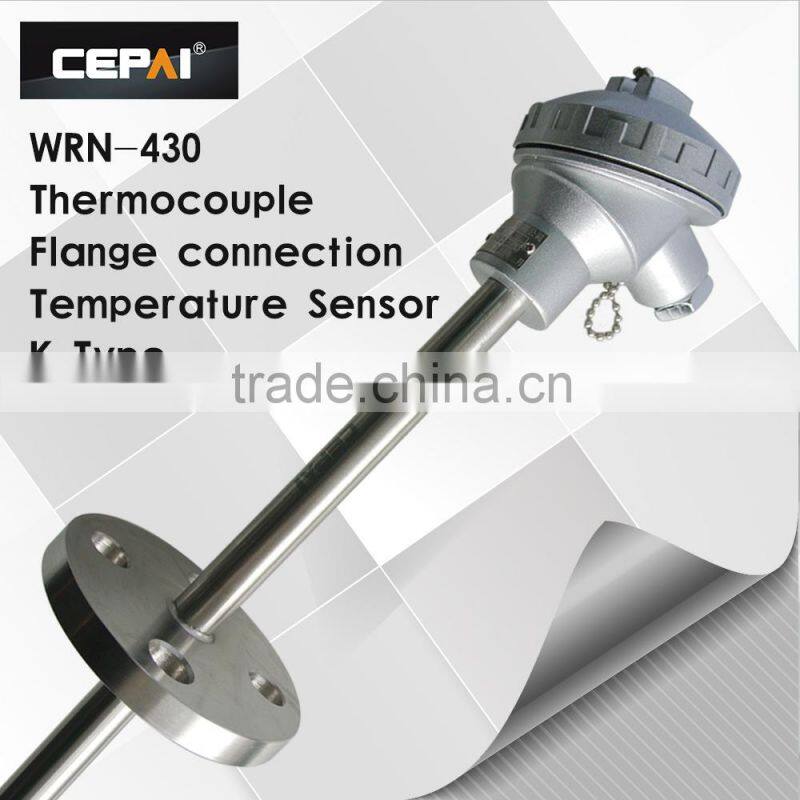

Fixed flange type thermocouple
Type |
Model |
Graduation |
Range |
Protection tube Material |
d mm |
TP time |
SIMPLEX |
WZP-420 |
Pt100 |
-200~420 |
1Cr1BNi9Ti
0Cr18Ni12Mo2Ti |
φ16 |
<90 |
WZP-421 |
φ12 |
<30 |
||||
WZP-430 |
φ16 |
<90 |
||||
WZP-431 |
φ12 |
<30 |
||||
DUPLEX |
WZP2-420 |
φ16 |
<90 |
|||
WZP2-421 |
φ12 |
<45 |
||||
WZP2-430 |
φ16 |
<90 |
||||
WZP2-431 |
φ12 |
<90 |
||||
SIMPLEX |
WZP-420A |
φ16 |
<90 |
|||
DUPLEX |
WZP2-420A |
|||||
Copper resistance |
WZC-420 |
CU50 |
-50~100 |
Copper H162 1Cr18Ni9Ti |
φ12 |
≤120 |
WZC-430 |
