Y-100 bar Pressure Gauge
- 5000 Piece / Pieces per Month
- shanghai jiangsu
- T/T Credit Card
- hairspring
- Hot Sale High Tension Industrial Wire From Professional Supplier
- China Workplace Safety Supplies Specialized Alloy Wire With Various Types
- China Wholesale Customized Wire Electrode With Factories Price
- Various Size of High Strength Metal Wire Electrode From Chinese Wholesaler
- High Quality Alloy Electrode Wire According to Customers' Requirement
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | CEPAI | Model Number: | Y-100 |
Product Description

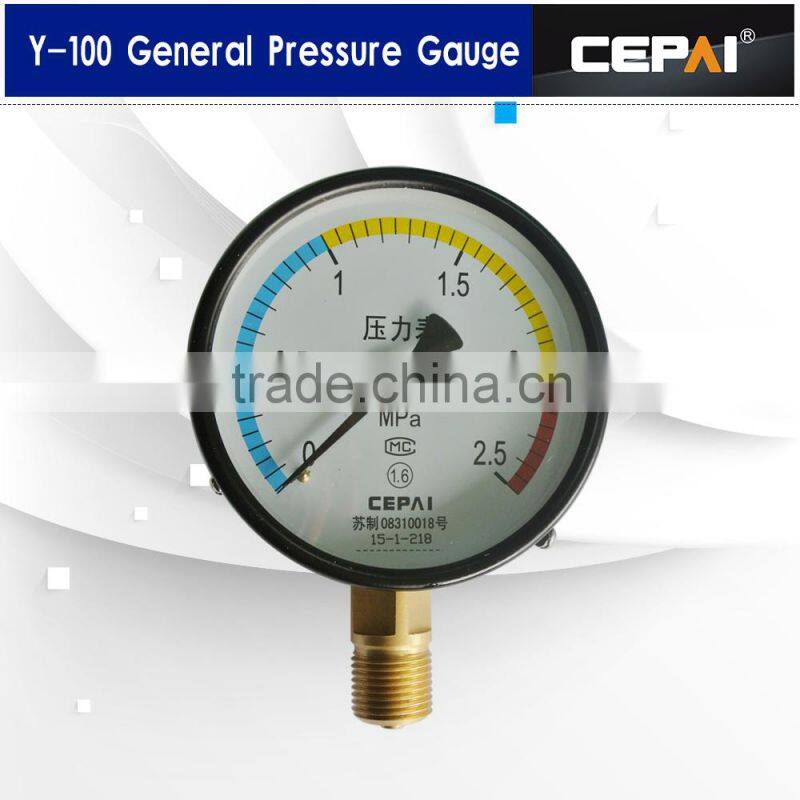

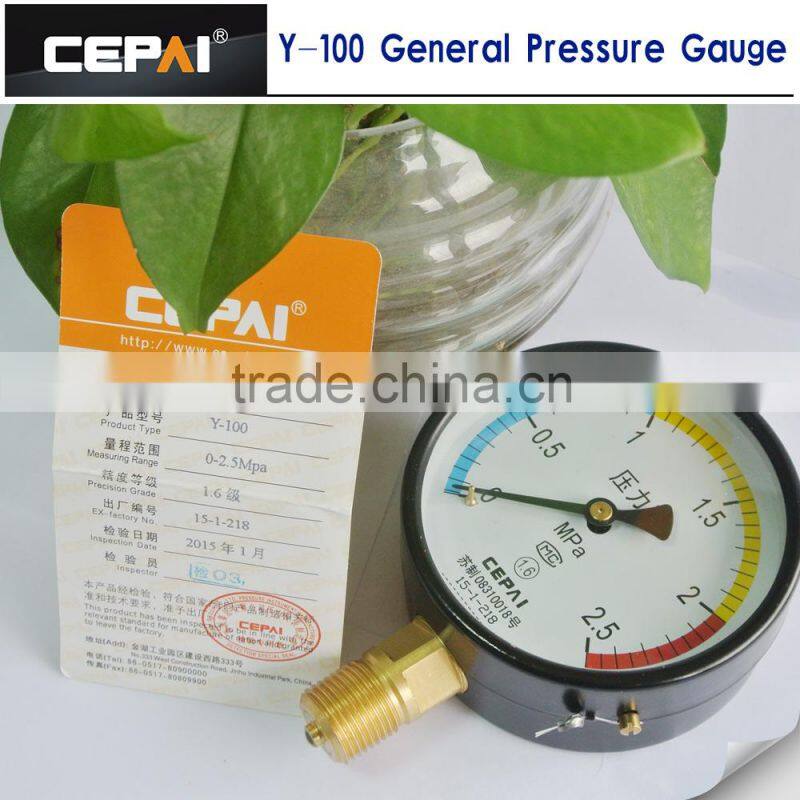

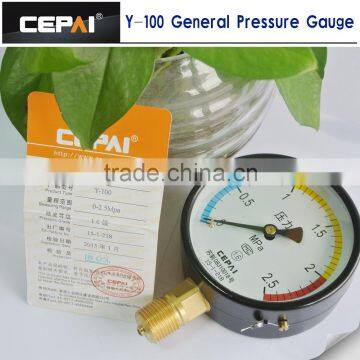

Y-100 Pressure Gauge
Brief Description
Y-100 general pressure gauge measures pressure of medium like liquid, vapor and gas that are safe without danger, no crystallization, no solidification, and doesn’t corrode steel, copper and copper alloy.
It has different mounting types like radial type, radial type with rim, axial type, axial type with rim etc.
Structure Principle
Measurement system includes joint, bourdon tube and driving mechanism, reading through needle.
Parameters
Model | Y-40 Y-40Z | Y-60 Y-60Z Y-60ZT | Y-100 Y-100ZT | Y-150 Y-150ZT | Y-200 Y-250 |
DN mm | Ø40 | Ø60 | Ø100 | Ø150 | Ø200,Ø250 |
Joint thread | M10*1 | M14*1.5 | M20*1.5 | ||
Accuracy | 2.5 | 1.5 | |||
Measuring range MPa | 0~0.1; 0.16; 0.25; 0.4; 0.6; 1; 1.6; 2.5; 4; 6 | 0~0.6; 1; 1.6; 2.5; 4; 6 | |||
0~10; 16; 25 | 0~10; 16; 25; 40; 60 | ||||
-0.1~0 | -0.1~0; -0.1~0.06; 0.15; 0.3; 0.5; 0.9; 1.5; 2.4 |
Working environment condition: -40~70℃, relative humidity is not more than 85%
Temperature influence: not more than 0.4%/10℃(working temperature deviation is 20±5℃)
Materials of main parts
Name | Joint | Spring tube | Movement | Shell |
No. of material | Copper alloy HPb59-1 | Phosphor copper QSn4-0.3 | Copper alloy | Steel board 0.8F |
Reference Operating Condition
Basic error, return difference, friction error and needle deviation stability is in accordance with GB/T1226-2010 under the following condition:
a) Environment temperature: 20℃±5℃
b) Gauge is under normal working condition
c) Uniform load change
Note: normal working position is vertical mounting if without notice.
Temperature influence: not more than 0.4%/10℃(operating temperature deviation 20±5℃)
Execution standard: GB/T1226-2010
Operating temperature: 40℃~70℃
Vibration-resistant class: V.H.3
