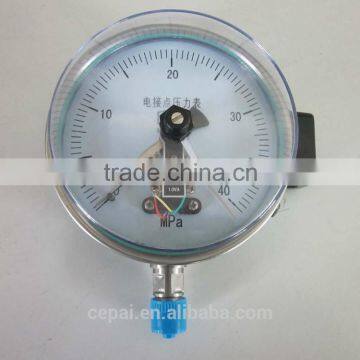

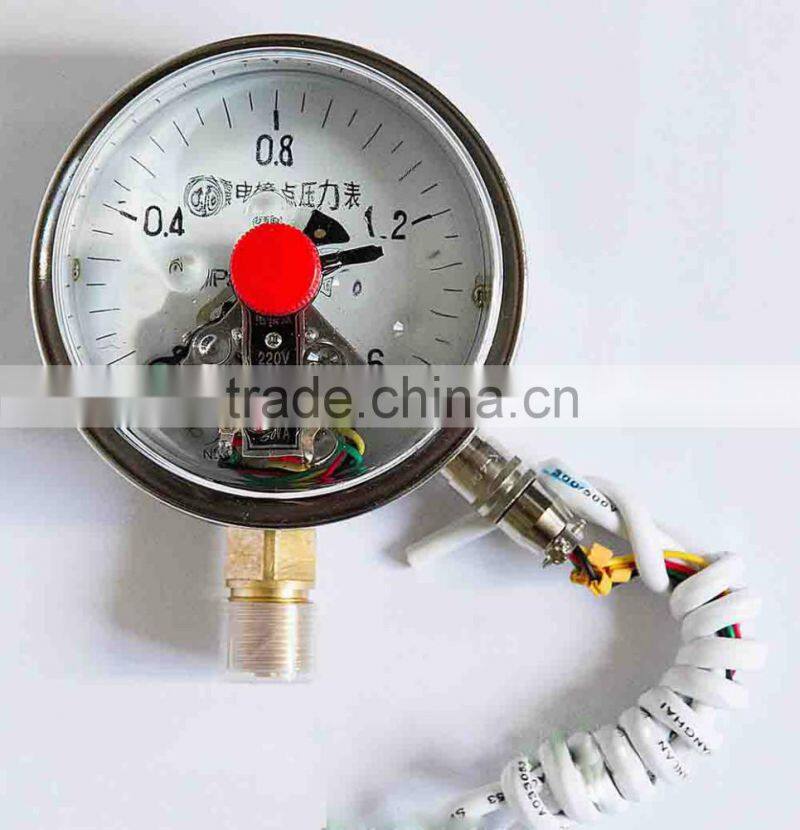

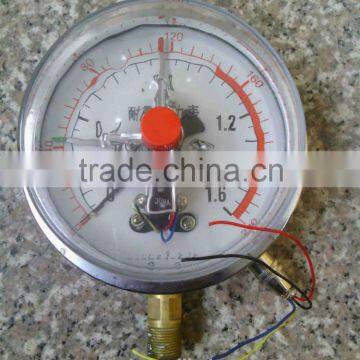

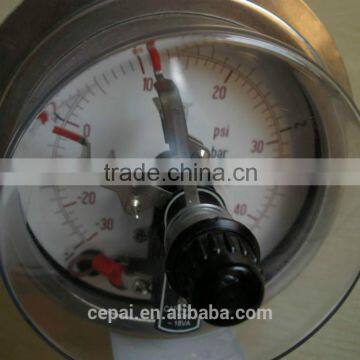

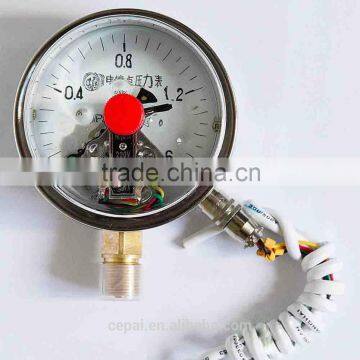

Stainless Steel Magnetic Electric Contact Pressure Gauge

Name: Stainless Steel Magnetic Electric Contact Pressure Gauge
Brand: CEPAI
SKU: 132689901
Availability: InStock

US$ 29 - 200 MOQ: 5 Units

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

CEPAI

Model Number:

YXC-150B

Cepai Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name CEPAI

Model Number YXC-150B

Main Technical Parameters

Types	Model	Name	Range MPa	Accuracy			Thread size
				Reading	Set value
					on	Off
General type	YXC-100 *YXC-102 YXC-103	Magnetic Electric Contact Pressure Gauge	From 0~0.6 to 60; From-0.1~0.06 To 2.4	1.5	1.5	4	M201.5 (G3/8”) (*G½”)

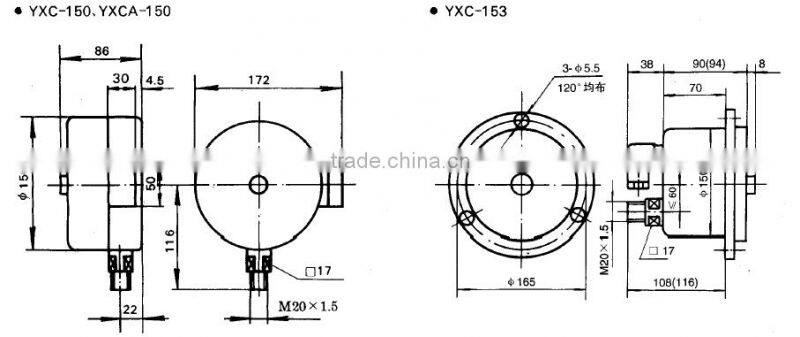

	YXC-150 *YXC-153		From 0~0.1 to 60 & from -0.1~0 to 2.4
Dedicated type	YXCA-150	Ammonia Pressure Gauge	From 0~0.16 to 60 & from -0.1~0.06 to 2.4	2.5	2.5	4
Anti-vibration	YXC-100-Z *YXC-102-Z YXC-103-Z	Magnetic Electric Contact Pressure Gauge	From 0~0.6 to 60 & from -0.1~0.5 to 2.4	1.5	1.5	5
Corrosion resistant	YXC-100B-F YXC-102B-F YXC-103B-F YXC-150B-F *YXC-152B-F		From 0~0.16 to 60 & from -0.1~0.06 to 2.4	1.5	1.5	4
Anti-vibration & corrosion resistant	YXC-100B-FZ YXC-102B-FZ YXC-152B-FZ YXC-153B-FZ		From 0~0.6 to 60 & from -0.1~0.5 to 2.4	1.5	1.5	5

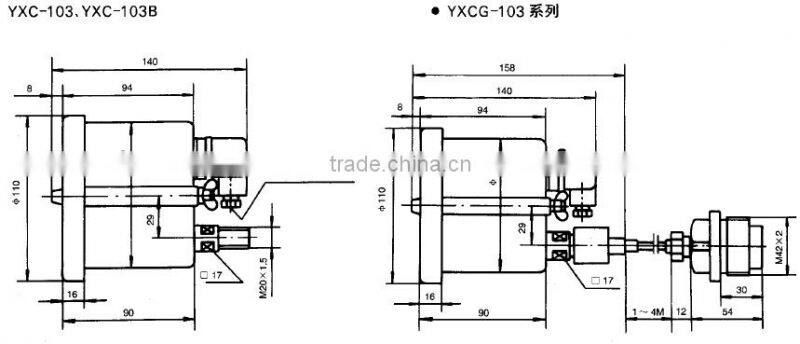

Isolated general Isolated corrosion resistant	YXCG-103 *YXCG-130-F	Isolated Magnetic Electric Contact Pressure Gauge	From 0~0.16 to 60 & from -0.1~0.06 to 2.4	1.5	1.5	4	M422 (G1 ¼”)
Isolate anti-vibration	YXCG-103Z		From 0~0.6 to 60 & from -0.1~0.5 to 2.4	1.5	1.5	5
Isolated Anti-vibration & corrosion resistant	*YXCG-103FZ

Working Environment

Types	Temp range		Relative humidity	Working vibration performance
	medium	Ambient
General & dedicated	-40~70℃		≤85%	V.H.3
Corrosion-resistant	-25~55℃		≤90%	V.H.3
Anti-vibration, corrosion-resistant				V.H.4
Isolated general	<150℃	-40~70℃		V.H.3
Isolated corrosion-resistant	-40~70℃
Isolated other type	<150℃	-25~55℃		V.H.4
