Brief Description

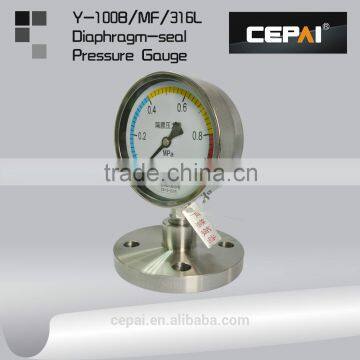

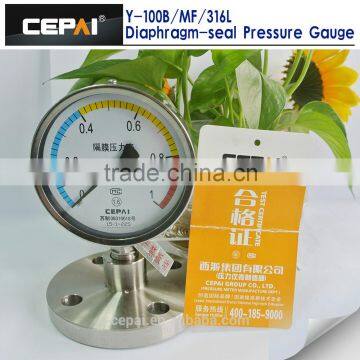

To make general pressure gauge applicable to medium which are strong corrosive, high-temperature, high-viscosity, easy to crystallize & solidify, and with suspended solid, also to avoid direct contact between general pressure gauge and medium, to make gauge easy to wash, we combine diaphragm isolator with general pressure gauge, which is a diaphragm-seal pressure gauge. Diaphragm-seal pressure gauge is mainly used in petrochemical industry, alkali-making, chemical fiber, dyeing, pharmacy, food and butyr-making industries to measure medium pressure.
Technical Parameters
Accuracy: 2.5%, 1.6%
Ranges (MPa): -0.1~0; -0.1~0.06; -0.1~0.15; -0.1~0.3; -0.1~0.5; -0.1~0.9; -0.1~1.5; -0.1~2.4; 0~0.1; 0~0.16; 0~0.25; 0~0.4; 0~0.6; 0~1.0; 0~1.6; 0~2.5; 0~4; 0~6; 0~10; 0~16; 0~25; 0~40; 0~60;
Working pressure: dead load is up to 3/4 of upper limit; stress alternating is up to 2/3 of upper limit; instant pressure is up to upper limit.
Working environment temperature: -40~70 degree (relative humidity is not more than 85%)
Temperature influence: when working temperature deviation is 20±5 degree, the error change is not more than 0.6%/10degree.
Pressure measuring element: double capsule
Case: stainless steel
Scale: stainless steel
Needle: aluminum, black
Gauge glass: common glass

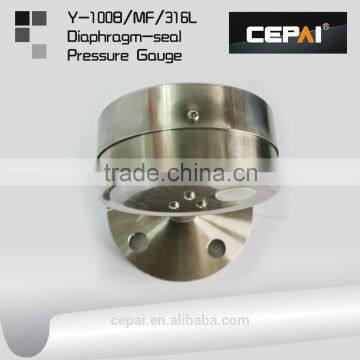

Connection: flange type, thread connection
Gauge is with micro zero-adjusting device
Selection Table
Y |
Pressure gauge |
|||
|
Dial dia |
100 150 |
||
|
|
Structure surface |
MF MG ML MC MN |
|
|
|
|
Wetted parts |
316L Tantalum, Hastelloy, Monel Alloy, PTFE |

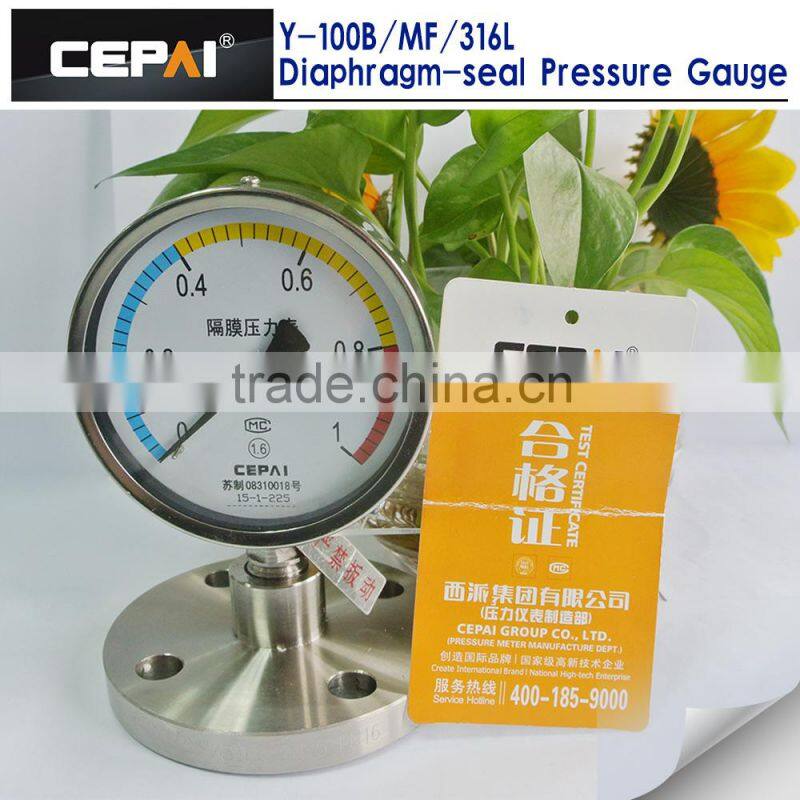

Y-100BFZ/MF/316L | ||||
Item |
Code |
Name |
1 |
General pressure gauge |
|
|
2 connector |
Z |
Direct |
ZN |
Damper |
|
SR |
Radiator |
|
RL |
Hose connection |
|
|
1,(2),(4) m |
|
GL |
Angle connection |
|
|
Material |
A, CS B, 1Cr18Ni C, 316 |
|
3 isolator |
MF |
Open convexity (low/medium pressure) |
ML |

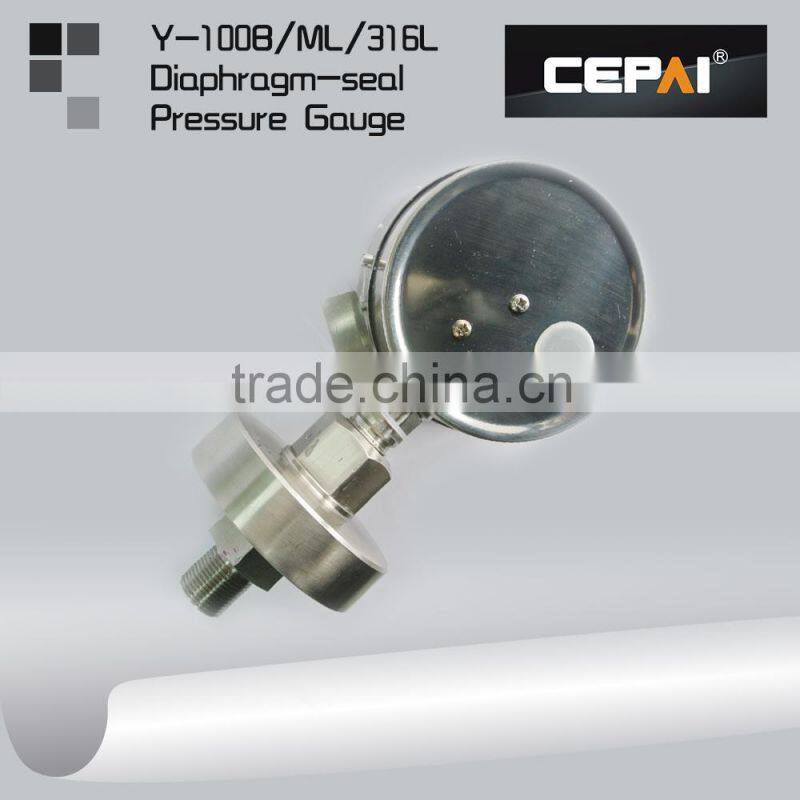

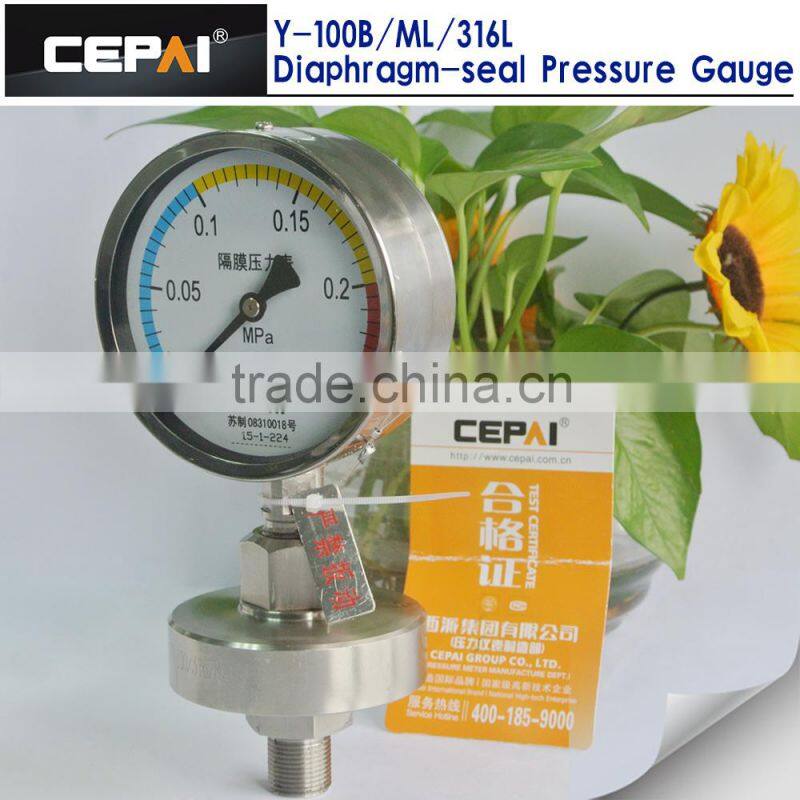

Thread (low/medium pressure) |
|
MG |
|
|
MZ |
Bolt |
|
MH |
Homogenizer |
|
MC |
Sanitation type |
|
MN |
Nut |
|
4 diaphragm material |
Generally speaking, it’s 316, other material please note when you order. |
|
